Specification
 • Travel Range:20mm/50mm/100mm
 • Platform:32X32 mm
 • Pitch 0.25mm Precision Screws
 • Resolution:0.5um

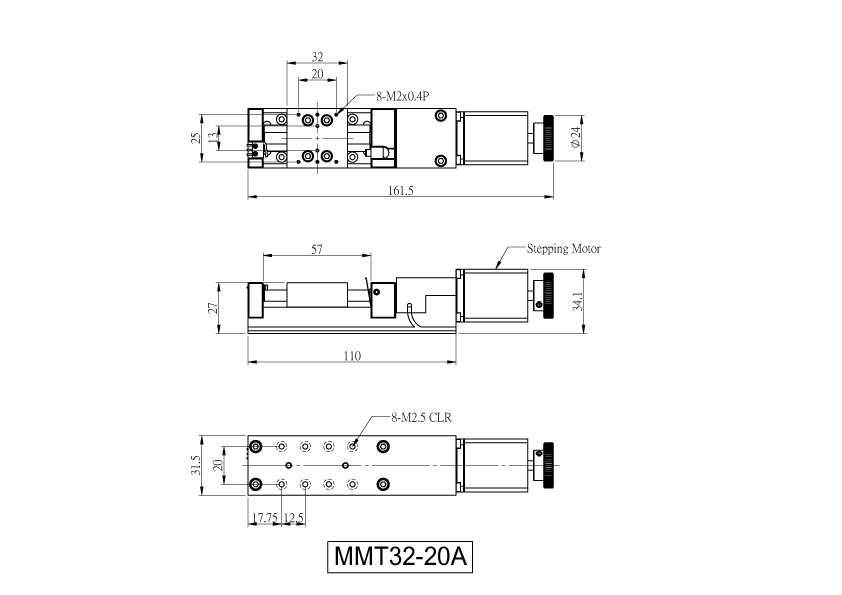

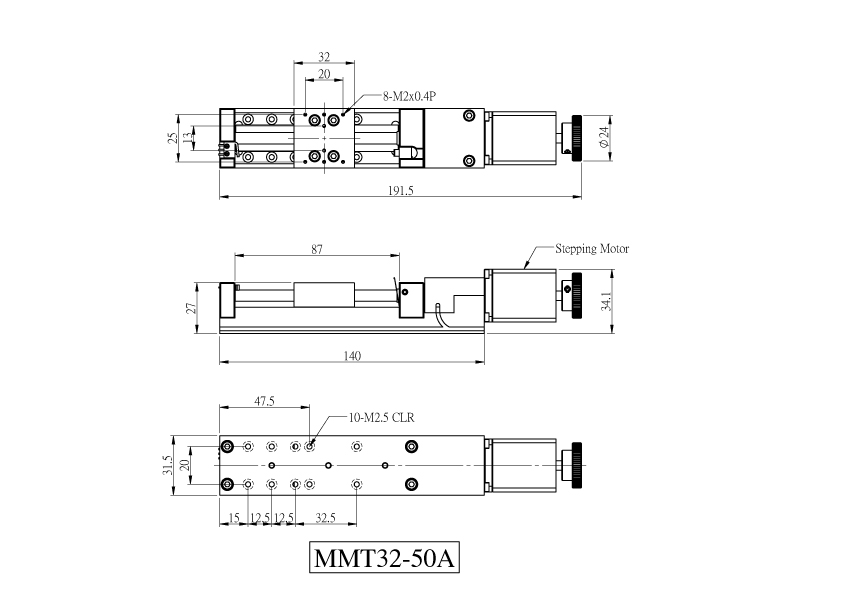

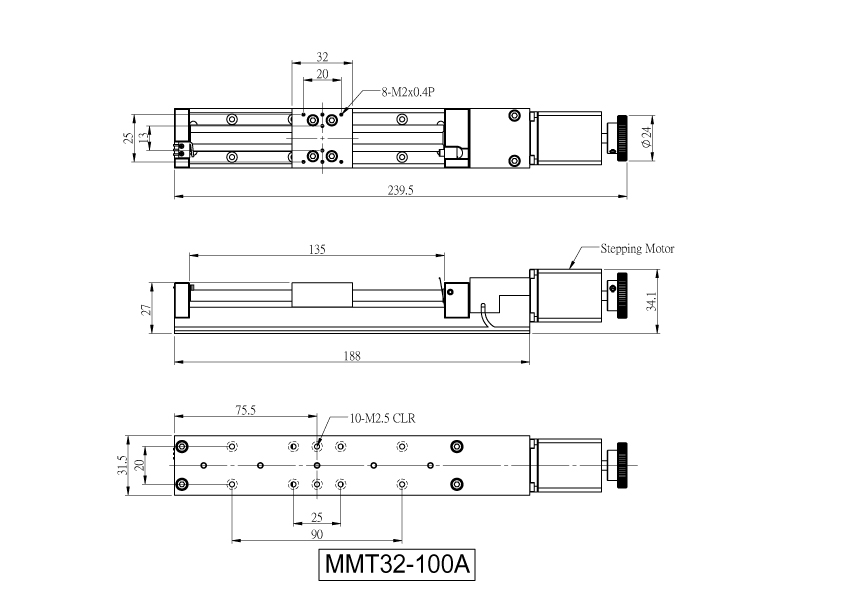

2D Drawing



MMT32-A-series

X Compact Motorized Linear Stage
• MMT32-XX-A Constructed by ball bearing linear guide and precision Screw.
• MMT32-XX-A have low prices and high precision feature .With compact design the MMT32-XX-A have shorter length.

Dub 9 Pin Female
Pin Description
1 None
2  0V
3
Forward Limit +
(output 0V NPN)
4
Reverse Limit -
(output 0V NPN)
5  Vcc+
6 B+ ( 2 Phase Motor)
7 B- ( 2 Phase Motor)
8 A- ( 2 Phase Motor)
9 A+ ( 2 Phase Motor)

Part Number/Description Delivery Price Qty. Add to Cart
M-MMT32-20A

X Compact Motorized Linear Stage / Pitch 0.25mm Precision Screw / Travel Range 20mm /2 Phase Stepping Motor / Ball Bearing Linear Guide
Inquiry
US$689.66
M-MMT32-50A

X Compact Motorized Linear Stage / Pitch 0.25mm Precision Screw / Travel Range 50mm /2 Phase Stepping Motor / Ball Bearing Linear Guide
Inquiry
US$758.62
M-MMT32-100A

X Compact Motorized Linear Stage / Pitch 0.25mm Precision Screw / Travel Range 100mm /2 Phase Stepping Motor / Ball Bearing Linear Guide
Inquiry
US$1034.48
