MMT32-50A

M-MMT32-50A

M-MMT32-50A | (尺寸: 32mmX32mm)

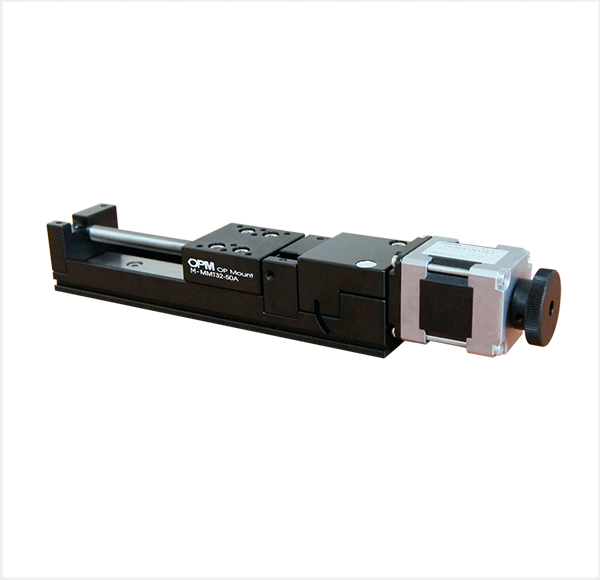

X Compact Motorized Linear Stage
Platfrom :
32X32 mm
Travel Range :
50 mm
Resolution :
0.5um
Motor : 2 - phase stepping motor
2D drawing :  3D STEP :

weight : 0.7KG  Delivery : Inquiry

Price:US$758.62

Qty:

Item Number Platfrom Travel Range Resolution Positioning Accuracy Repeatability Capacity Weight Kg
MMT32-50A 32X32mm 50mm 0.5um 20um/mm 10um 5Kg 0.7kg



No.1

M-MMT32-50A

PDF

No.2

M-MMT32-50A

STEP
