MMT32-100A

M-MMT32-100A

M-MMT32-100A | (尺寸: 32mmX32mm)

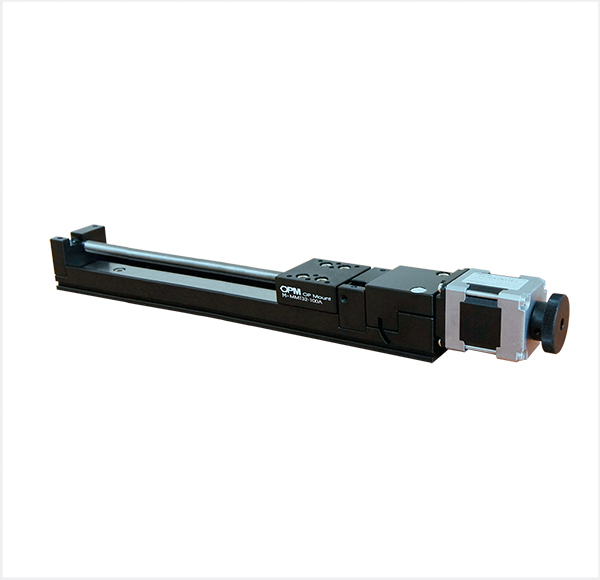

X Compact Motorized Linear Stage
Platfrom :
32X32 mm
Travel Range :
100 mm
Resolution :
0.5um
Motor : 2 - phase stepping motor
2D drawing :  3D STEP :

weight : 0.8KG  Delivery : Inquiry

Price:US$1034.48

Qty:

Item Number Platfrom Travel Range Resolution Positioning Accuracy Repeatability Capacity Weight Kg
MMT32-100A 32X32mm 100mm 0.5um 20um/mm 10um 5Kg 0.8kg



No.1

M-MMT32-100A

PDF

No.2

M-MMT32-100A

STEP
