Specification
 • Travel Range : 15mm
 • Platfrom : 40x40mm
 • Pitch 0.25mm Precision Screw
 • Resolution : 0.5um
 • Positioning Accuracy : 20um/mm
 • Repeatability : 10um

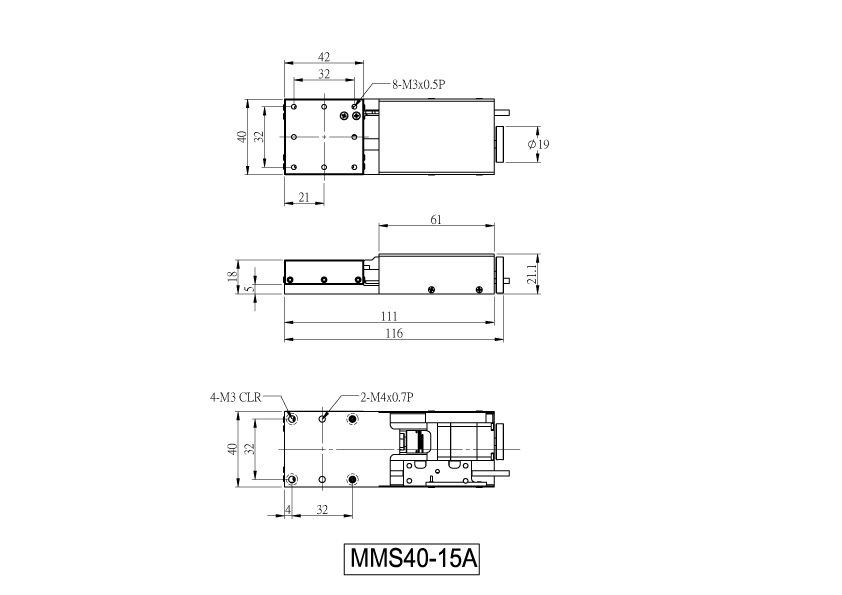

2D-Drawing



MMS40-15A

Low Thickness Motorized Linear Stage

MMS40-15A slim-type Motorized Linear Stage utilizes precision ground screws and crossed roller linear steel tracks, providing excellent stability. The integrated design approach allows the overall platform to possess good rigidity while also avoiding wasted space.
Dub 9 Pin Female
9 Pin (Female)
1
 Home (output 0V NPN)
 6 B+ Motor
2
 0V
 7 B- Motor
3
Forward Limit +(output 0V NPN)
 8 A- Motor
4
Reverse Limit -(output 0V NPN)
 9 A+ Motor
5 Vcc+


Part Number/Description Delivery Price Qty. Add to Cart
MMS40-15A

Low Thickness Motorized Linear Stage / Pitch 0.25mm Precision Screw / Travel Range 15mm /2 Phase Stepping Motor / V-Cross Roller Guide
Inquiry
US$689.66
