MMS40-15A

MMS40-15A

MMS40-15A | (尺寸: 40mmX40mm)

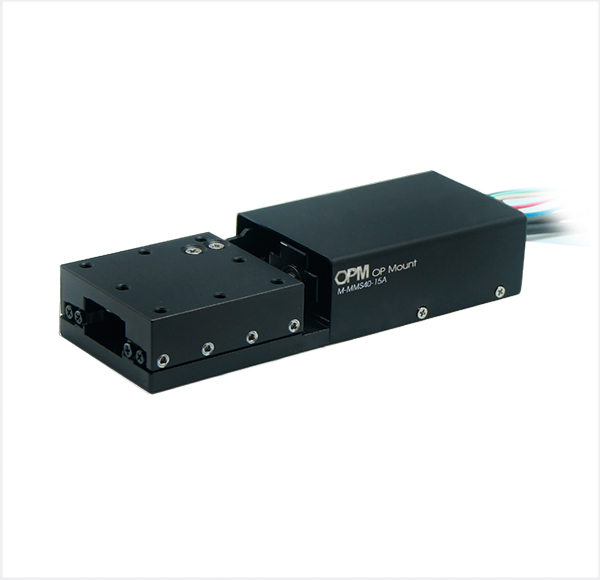

Low Thickness Motorized Linear Stage
Platfrom :
40X40 mm
Travel Range :
15 mm
Resolution :
0.5um
Motor : 2 - phase stepping motor
2D drawing :  3D STEP :

weight : 0.4KG  Delivery : Inquiry

Price:US$689.66

Qty:

Item Number Platfrom Travel Range Resolution Positioning Accuracy Repeatability Capacity Weight
MMS40-15A 40mmX40mm 15mm 0.5um 20um/mm 10um 3Kg 0.4kg



No.1

M-MMS40-15A

PDF

No.2

M-MMS40-15A

STEP
