5-JTH200-100-C7

5-JTH200-100-C7

5-JTH200-100-C7 | (尺寸: 145mmX122mm)

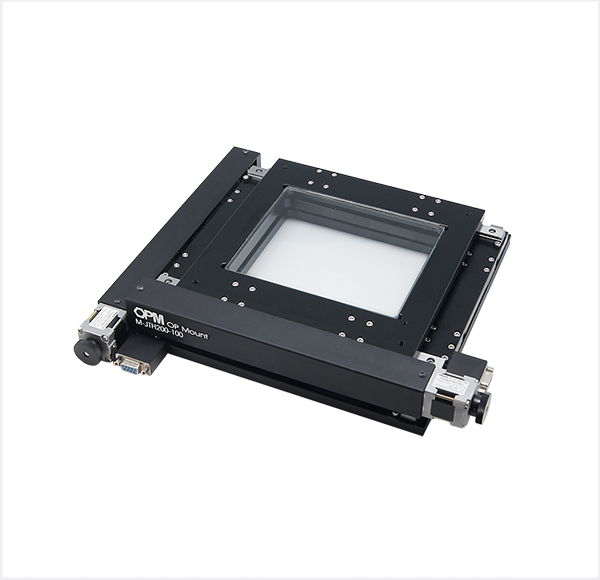

Motorized XY Linear Stage for Microscope
Clear Aperture:
145x122mm
Platform Size :
200X200mm
Travel Range :
X=100mm,Y=100mm
Resolution 1600 Rev : 0.625um
Positioning Accuracy : ±50um/300mm
5 Phase Stepping Motor
2D drawing :  3D STEP :

weight : 4.3KG  Delivery : Inquiry

Price:US$2689.66

Qty:

Item Number 5-JTH200-100-C7
Clear Aperture 145x122mm
Platform Size 200X200mm
Travel Range X=100mm,Y=100mm
Resolution 1600 Rev 0.625um
Positioning Accuracy ±50um/300mm
Repeatability ≤2um
Parallelism 20um
Weight 4.3Kg



No.1

5-JTH200-100-C7

PDF

No.2

JTH200-100-C7

STEP
