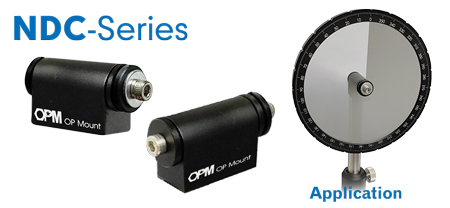

NDC-series

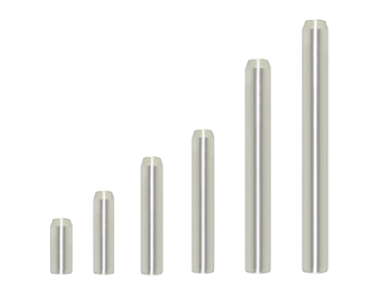

• The NDC mount can be combined with the P-V3MUFV9150 graduated neutral density filter, and then with the PD series rods using the M6 screws on the underside, which can be secured using the screws on the side when adjusted to the proper angle.
•  Due to the almost compact nature of the NDC, there is almost no need to worry about the beam being blocked.
•  For different specifications of graduated filters. We offer two sizes of holder, 8.3mm and 7.5mm, for the inner hole of the filter.

Assembly Installation

1. Tighten the side fixing screws when installing the filter.
2. Use a 2.5mm hex wrench to remove the screws at the front.
3. Install the filter between the two black aluminum spacer plates.
4. Assemble the two spacer plates, filter, slider, and screws in sequence,and tighten the screws with a 2.5mm hex wrench.
5. Loosen the side screws.
6. Use the rear knob to adjust the lens.
Related Products

PH-Series

Part No. Deadline Price Quantity Cart

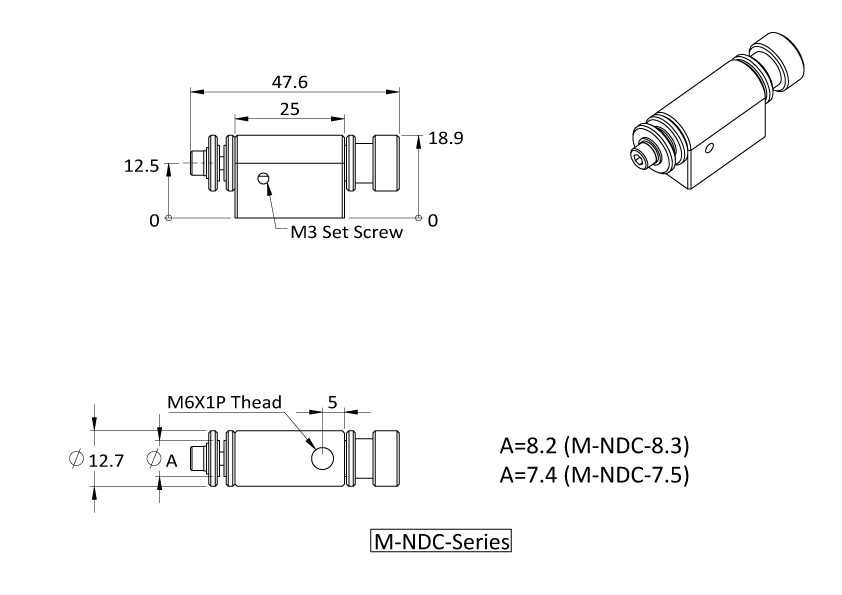

M-NDC-8.3

Mount for Graduated ND Filters/Inner circular hole 8.3mm

Inquiry
US$51.72
M-NDC-7.5

Mount for Graduated ND Filters/Inner circular hole 7.5mm

Inquiry
US$51.72
