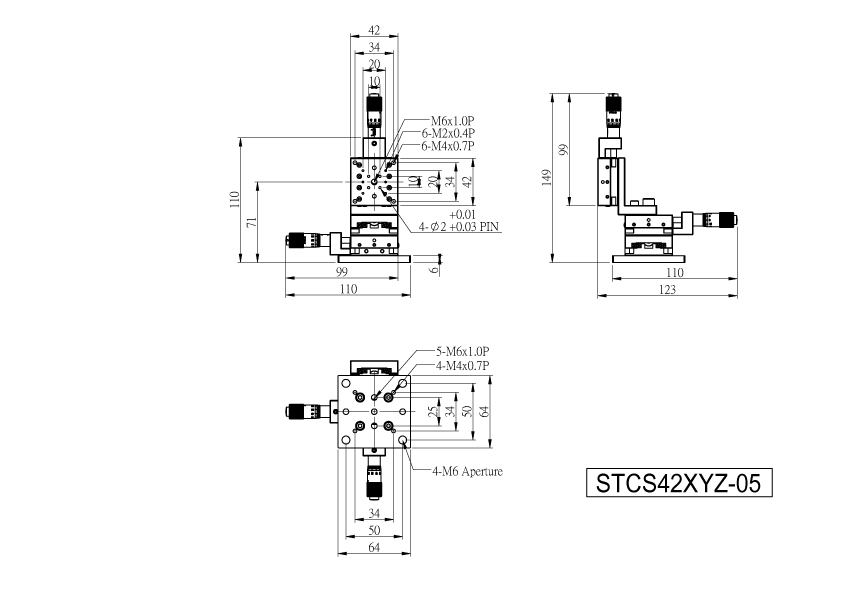

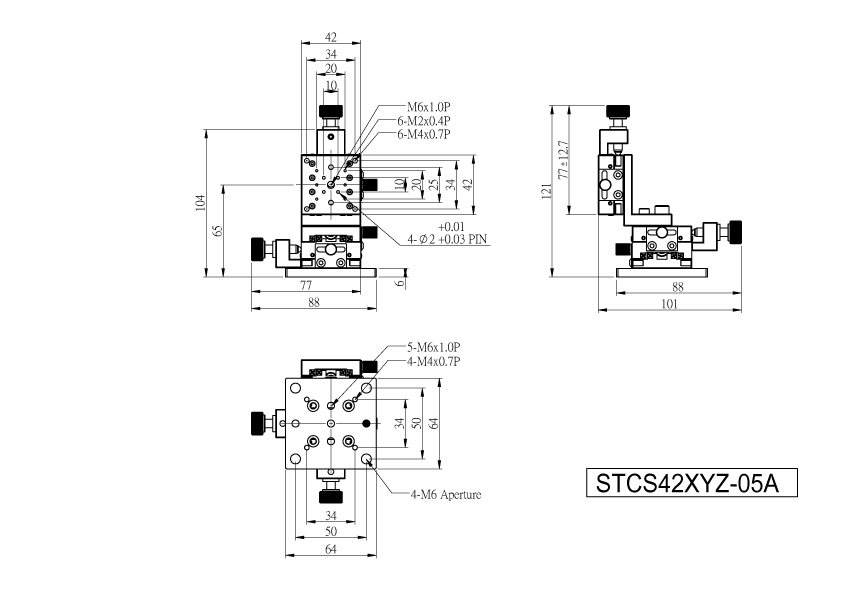

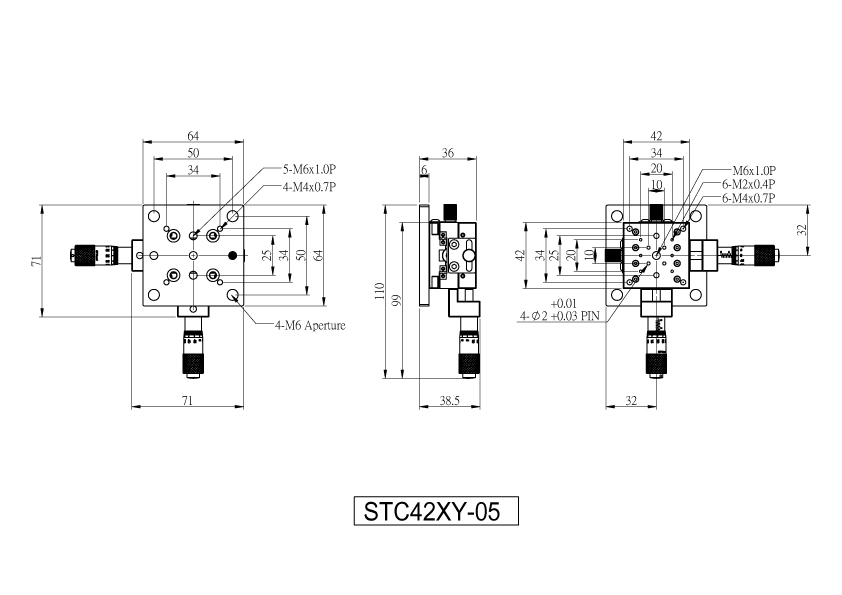

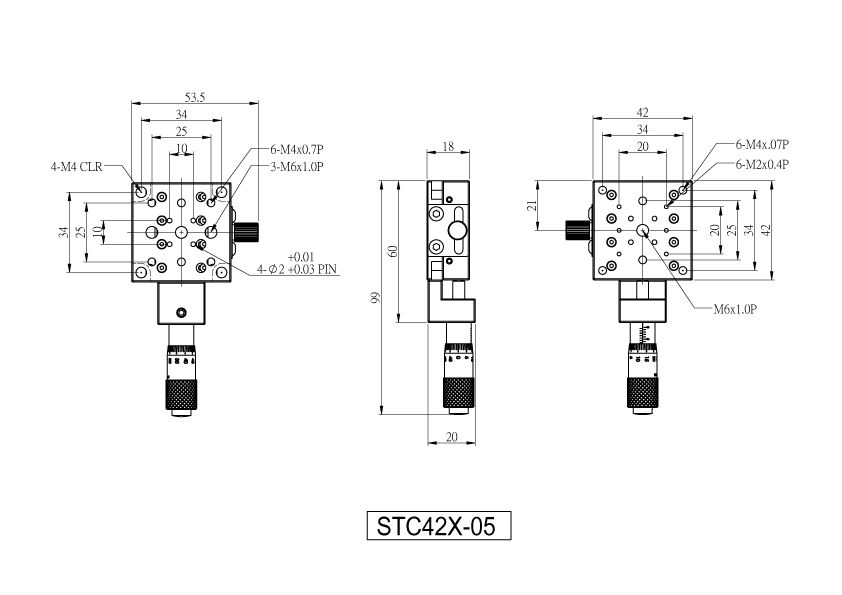

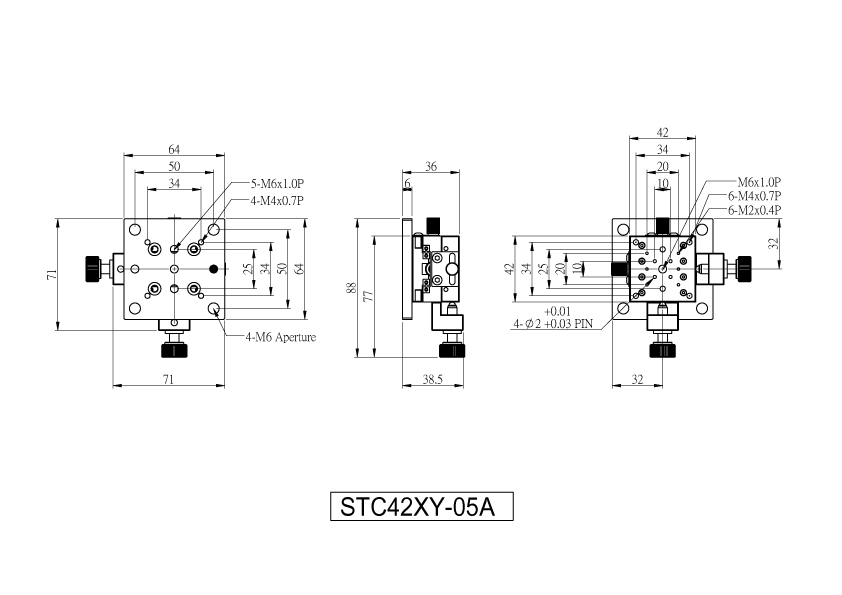

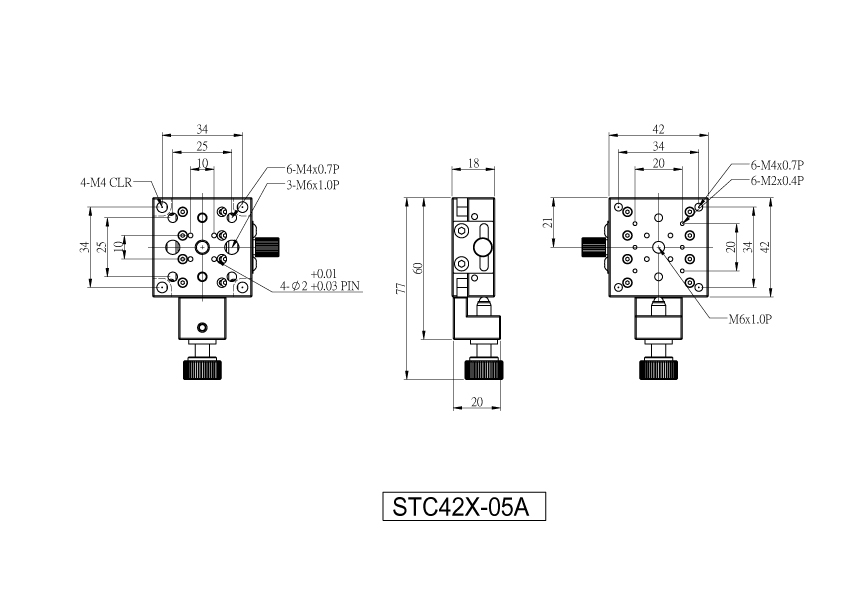

2D-Drawing
Click to enlarge Click to enlarge Click to enlarge Click to enlarge Click to enlarge Click to enlarge

STC42-05-series

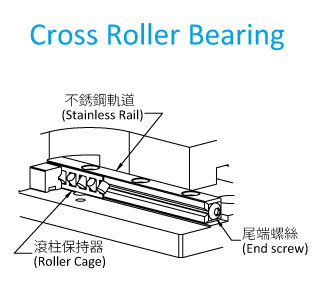

• The STCS series platform is designed with a steel cross-roller track, made entirely of robust stainless steel material. It features high rigidity, high load capacity, low friction, and minimal operational noise, making it suitable for high-precision displacement applications. We also offer two drive options: a 10μm micrometer card drive and a 100TPI precision screw drive, considering convenience of use.

• The platform dimensions are 42x42mm, with an array of M4x.07P and M2x0.4P holes on the surface for optical component assembly. Precision-machined locating pins ensure that the intersection angle of the XYZ axes is less than 2mrad.
