  5. Miniature Rotary Stage with a Center Aperture



Specification

• Platform Size : Φ28.0mm

• Actuators:Worm Gear

• Center aperture:12.7mm

• Adjustment : 360°

• Eccentricity : ±20um

• Sensitivity : 0.5°

• Readable Resolution : 2°

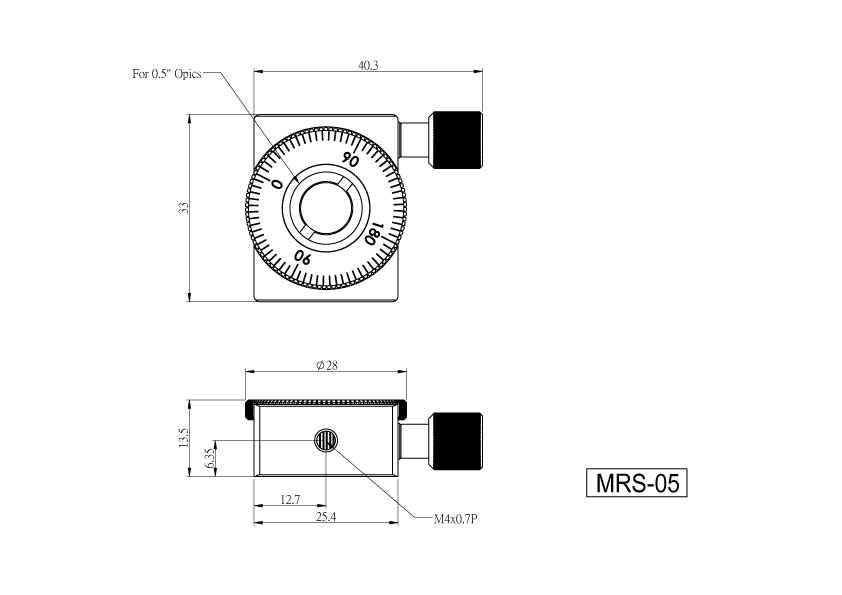

2D-Drawing



MRS-series

• The MRS-05 utilizes a Worm Gear structure for precise rotational adjustments, providing higher resolution compared to standard rotary stages. Its compact design is well-suited for use in confined optical spaces.

• The platform features a central threaded through-hole with a diameter of Φ12.7mm, suitable for mounting 0.5-inch lenses.



Part No. Deadline Price Quantity Cart
M-MRS-05

central aperture of 0.5inch / 360° Rotation / Worm Drive

In Stock
US$150.00
