  5. Thin Precision Rotary Stage

Specification
 • Platform Size : Φ38.0mm/Φ59.0mm
 • Actuators : 100TPI precision screws / Micrometer
 • Adjustment : 360°
 • RSQ-59 : Resolution:1° 、Sensitivity: 0.02°
 • RSQ-38 : Resolution:2°
 • Eccentricity : ±25um
 • Fine adjustment : ±5°

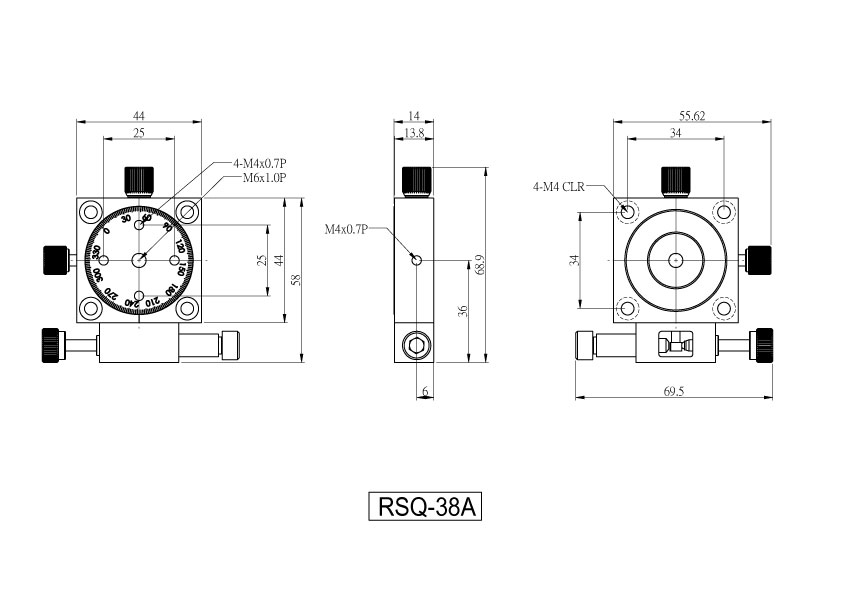

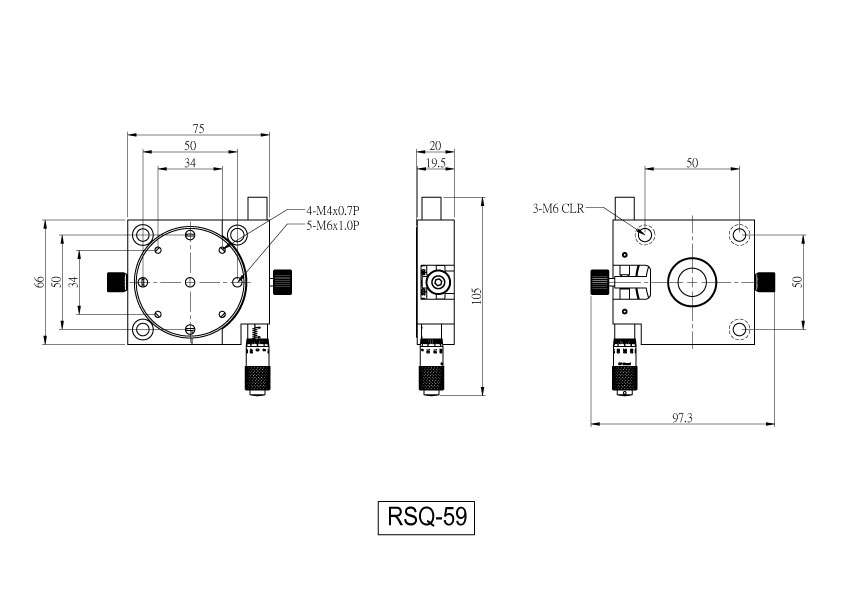

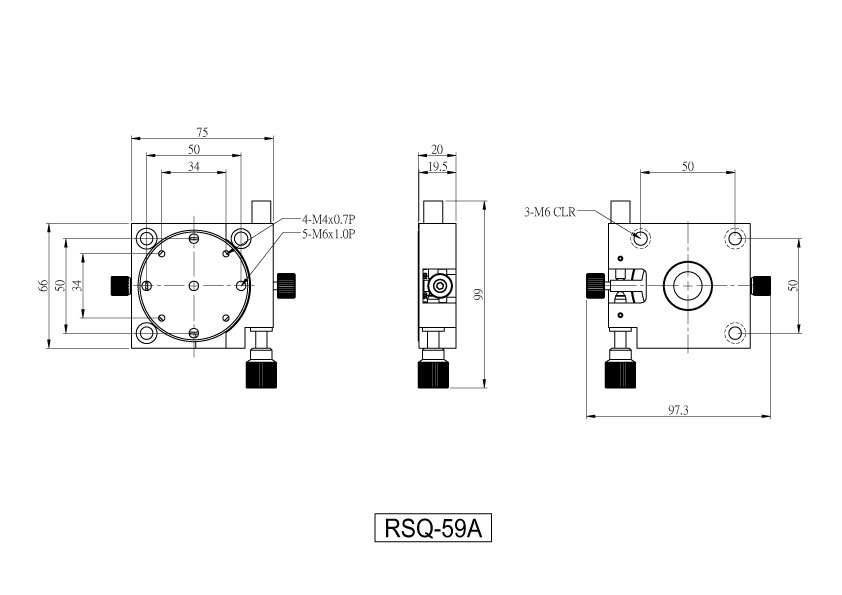

2D-Drawing



RSQ-series

• The RSQ series rotation stage belong to the category of miniature precision adjustment rotary stages, designed to be slim and suitable for installation in systems with lower optical path heights.

• Switchable screws on the side allow for coarse/fine angle control of the rotary knob. When the screws are locked, it provides fine adjustment within ±5 degrees, enabling precise angle control at any position.

• The tabletop scale displays increments of 1 degree for continuous rotation up to 360 degrees.

• The RSQ-59 series offers two drive options: 100TPI precision screws and Micrometer, which can be chosen based on specific requirements.



Part No. Deadline Price Quantity Cart
M-RSQ-38A

360° Rotation / Adjustment Screw Drive / Φ38.0mm Platform Size

In Stock
US$139.66
M-RSQ-59

360° Rotation / Micrometer Drive / Φ59.0mm Platform Size

In Stock
US$189.66
M-RSQ-59A

360° Rotation / Adjustment Screw Drive / Φ59.0mm Platform Size

In Stock
US$172.41
