  5. Manual Rotary Stage with a Center Aperture

Specification
 • Platform Size : Φ50.8mm/Φ76.2mm
 • Actuators:Gear
 • Center aperture:Φ25.4mm /Φ50.8mm
 • Adjustment:360°
 • Resolution:1°
 • Eccentricity:±25um

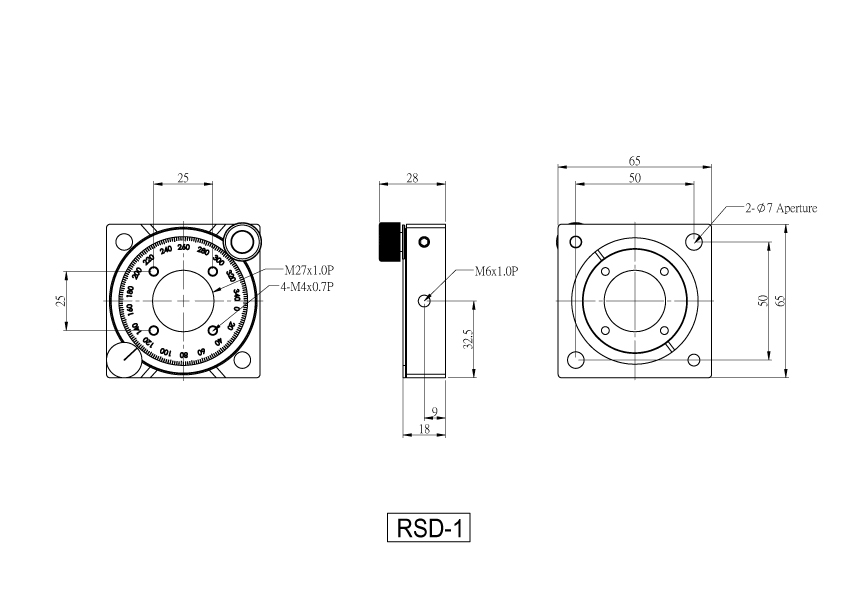

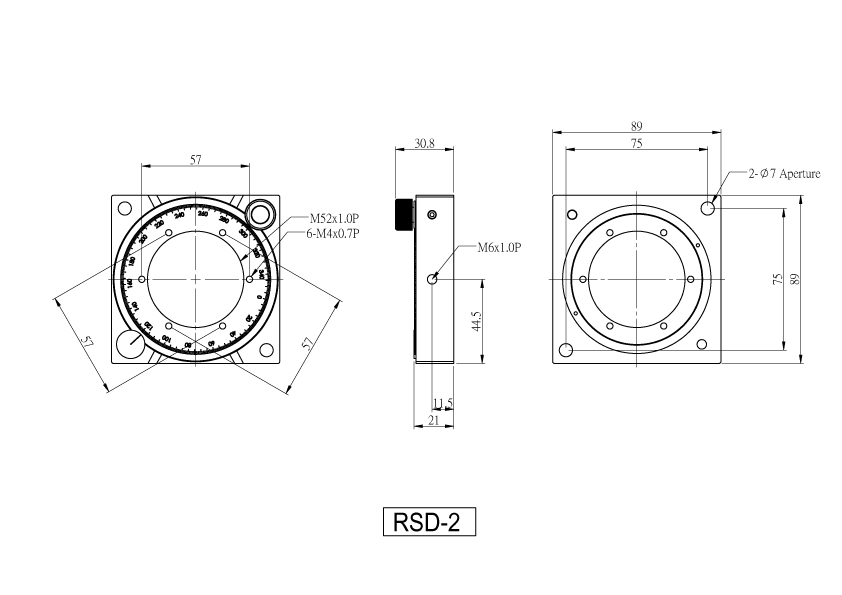

2D-Drawing



RSD-series

• Manual Rotation Stage, featuring 360-degree rotation capability through the side knob. Once adjusted to the desired angle, the platform can be locked in place using the screws on the side.

• The platform's center threaded hole is designed for mounting 1-inch and 2-inch diameter polarizing lenses and waveplates.

• Tabletop scale displays 1-degree increments for continuous rotation up to 360 degrees.

• Compatible for use with RS-A.

Part No. Deadline Price Quantity Cart
M-RSD-1

central aperture / 360° Rotation / Manual / Φ50.8mm Platform Size

In Stock
US$87.93
M-RSD-2

central aperture / 360° Rotation / Manual / Φ76.2mm Platform Size

In Stock
US$136.21

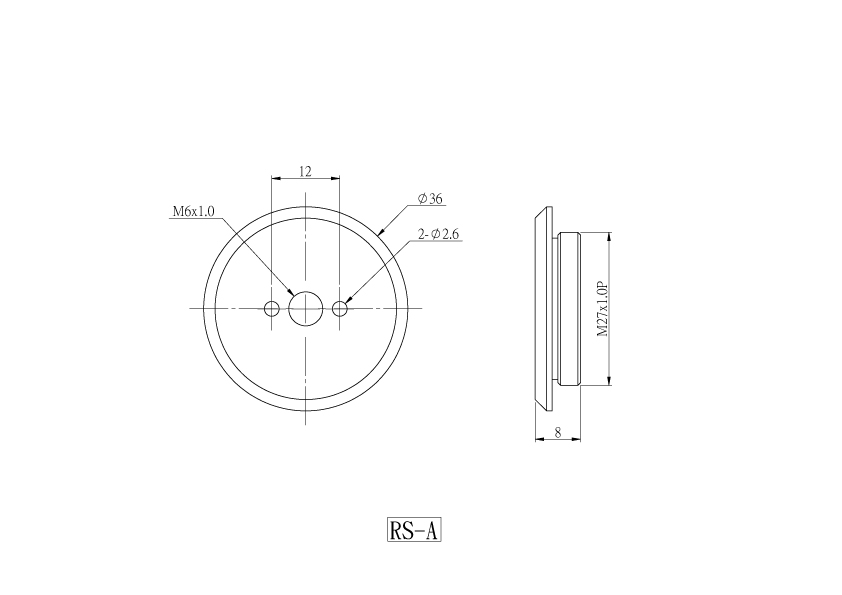

M-RS-A

Cover Plate for Use with RSD-1

In Stock
US$9.66
