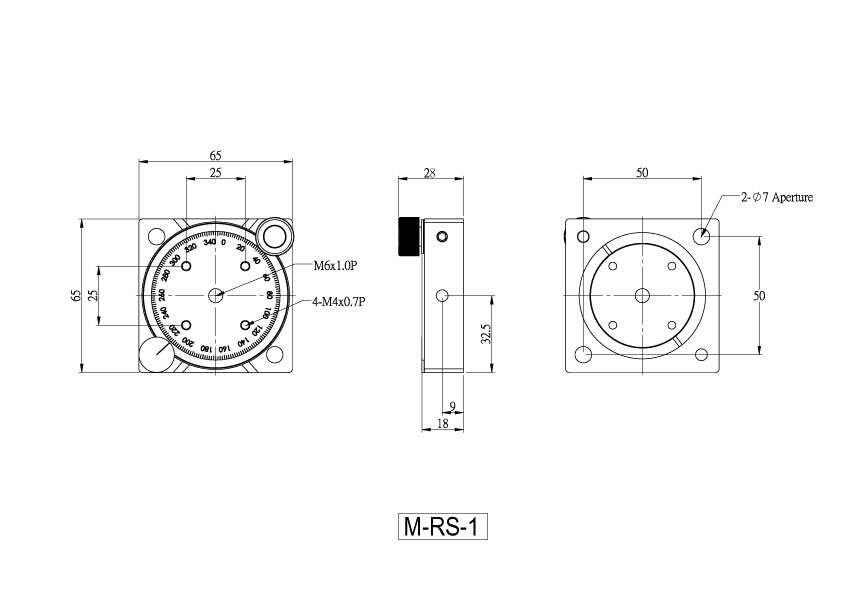

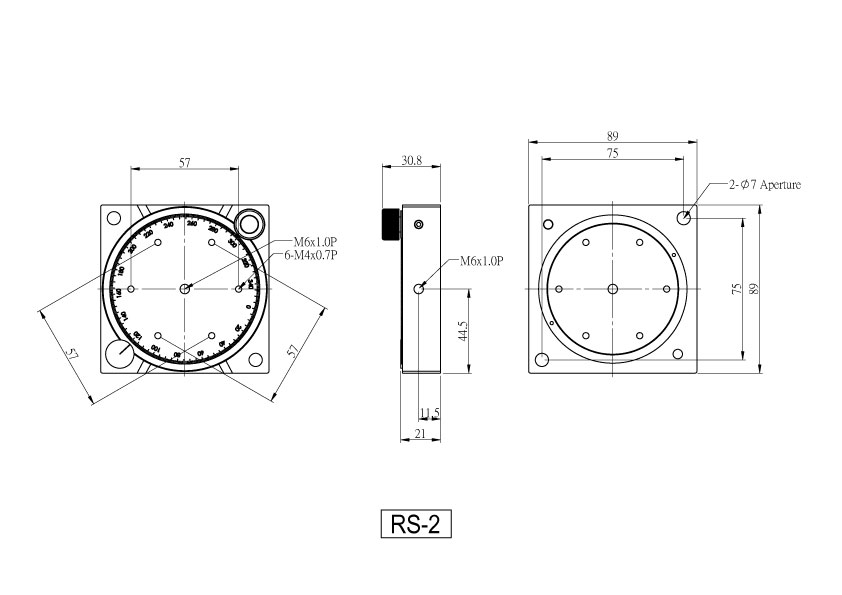

Specification • Platform Size: Φ50.8mm/Φ76.2mm • Actuators:Gear • Adjustment:360°  • Resolution:1°  • Eccentricity:±25um 2D-Drawing
Click to enlarge Click to enlarge

RS-series

• The manual simple rotating steage can realize 360-degree rotation through the side knob. When the required angle is adjusted, the screws on the side of the platform can be used to lock the rotation of the platform.

• Can be used with MC series for easy fixation.

• The scale on the table shows 1 degree and can be continuously adjusted and rotated up to 360 °.
