Specification

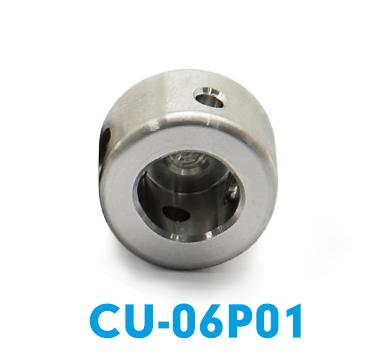

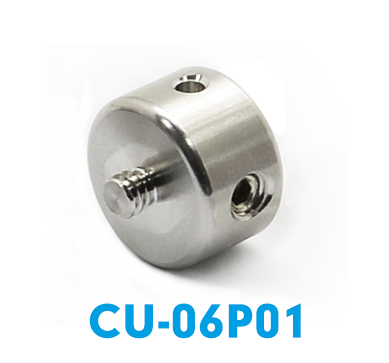

• CU-06P01 : Imperial #4-40 External Thread Adapter for Ø6mm Rod

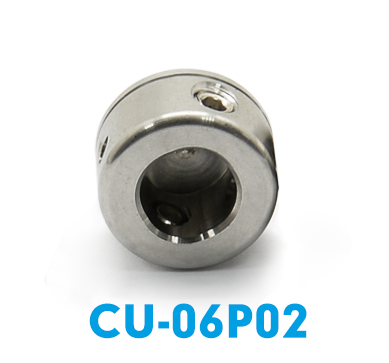

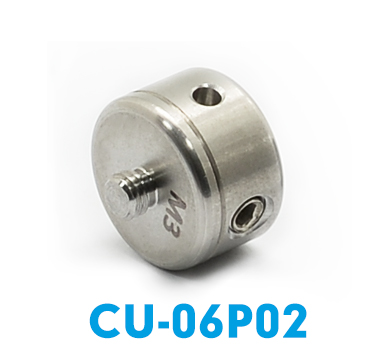

• CU-06P02 : Metric M3X0.5P External Thread Adapter for Ø6mm Rod

• CU-06P03 : Couple Rods at 90°

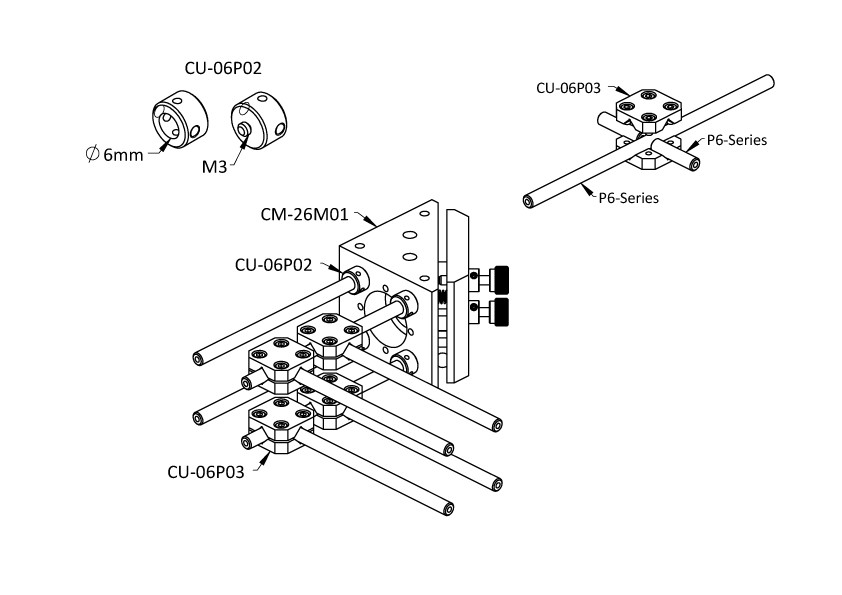

Application

Click to Enlarge

Ø 6mm Rod Adapter

CU-06P-series

 • When both ends of the P6 series are connected to the M3 screw, an unconnectable result will occur.

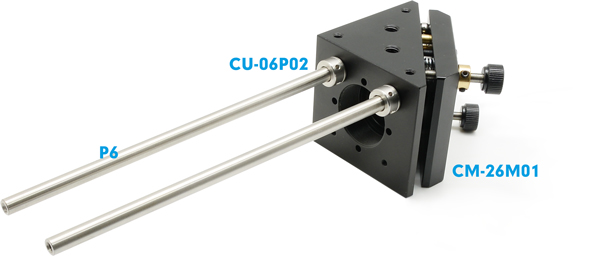

 • CU-06P02 can solve this problem. One end of CU-06P02 has an M3 thread, and the other end has a circular hole that can accommodate a diameter of 6mm, so that the P6 series support rod can be inserted. To prevent the P6 from loosening, there are several fixing screws on the side of CU-06P02.

 • CU-06P03 can make two systems orthogonal to each other at 90 degrees. There are four blind holes on the front that can accommodate 6mm rods. The P6 support rod can be firmly fixed by the M3 set screw on the side. The back has a 6mm through-hole and M3 threads on the side, allowing the CU-06P03 to slide and be fixed on the P6 support rod.
