Specification
	• Z-Travel Range : 6mm
	• Resolution : 0.01mm
	• Lock structure
	• Matching rod : Ø6 mm Post

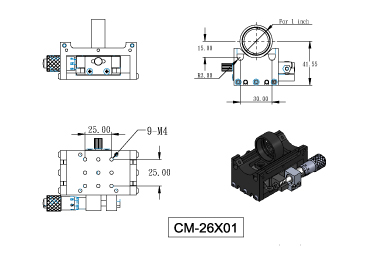

	2D-Drawing
	Click to Enlarge

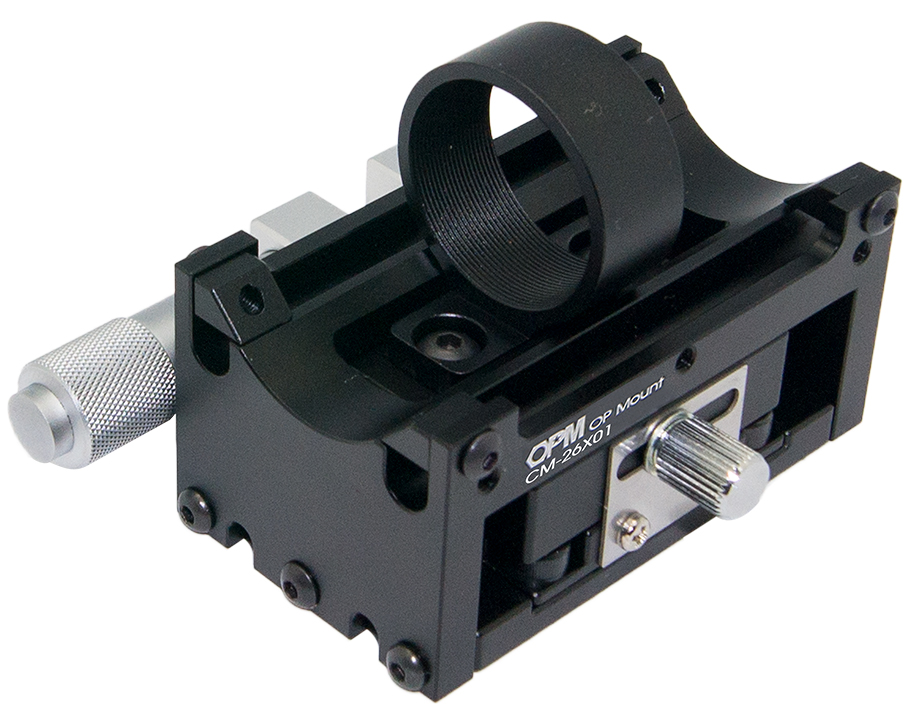

CM-26X01

• CM-26X01 adopts a steel cross roller track, which features smooth operation, high linearity, and durability.

• The side vernier scale provides a readable resolution of 10 microns, and can be locked in place using screws on the side of the platform once adjusted to the desired position. Additionally, there are M4 threaded holes on the bottom of the platform for integration with other components.
