CM-26L-series

The CM-26L-series offers various types of adjustment solutions that can meet the adjustment requirements of X, Y, Z, θx, θy (Z direction is the optical axis direction). Using these products can precisely align the axis of optical components with the optical axis, suitable for applications in lenses, objectives, pinholes, and other optical components.

When it is necessary to arrange new components on an existing optical path, the CM-26L01 can be chosen, which can be easily and quickly inserted into the system without affecting the position of other components in the optical path.

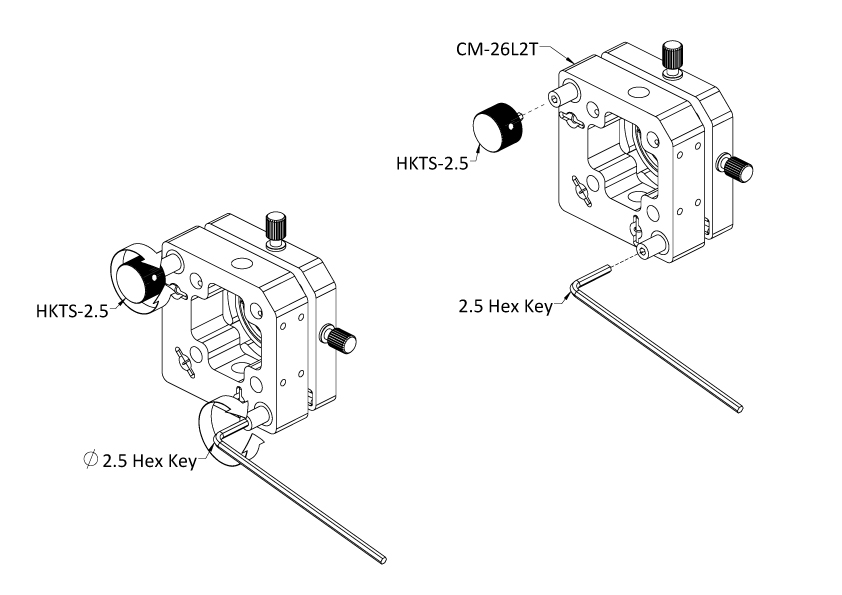

Both the CM-26L01 and CM-26L03 have locking functions on the side, which can be fixed in the intended position.

Item Number		CM-26L1T	CM-26L2T	CM-26L2TH	CM-26L3T	CM-26L3TH	CM-26L01
Adjust Range		XY=±1mm	θxθy±3° XY=±1.5mm	θxθy±3° XY=±1.5mm	θxθy±3° XYZ=±1.5mm	θxθy±3° XYZ=±1.5mm	-
Resolution		0.25mm/rev	θxθy=5mrad/rev XY=0.25mm/rev	θxθy=5mrad/rev XY=0.25mm/rev	θxθy=5mrad/rev XYZ=0.25mm/rev	θθxθy=5mrad/rev XYZ=0.25mm/rev	-
Optics Diameter		Ø=25.4mm	Ø=25.4mm	Ø=25.4mm	Ø=25.4mm	Ø=25.4mm	Ø=25.4mm
Type		Ø1"Lens Mount	Ø1" 4-Axis Adjustable Lens Mount	Ø1" 4-Axis Adjustable Lens Mount(no knob)	Ø1" 5-Axis Adjustable Lens Mount	Ø1" 5-Axis Adjustable Lens Mount(no knob)	Ø1"Quick Release Mount
Drawing
