All CM-26M-series can accommodate optical components up to one inch in size. When combined with the P6 connecting rod, it is easy to place the optical components on the predetermined optical path.

These optical mounts use 100TPI (0.25mm) adjustment screws to align the beam with the center of the predetermined optical axis.

Item Number		CM-26M01	CM-26M02	CM-26M03	CM-26M04	CM-26M05	CM-26M06
Adjust Range		θxθy±3°	θxθy±3°	θxθy±3°Z=±3mm	θxθy±3°  Z=±3mm	θxθy±2°	θxθy±3°
Resolution		θxθy=4mrad/rev	θxθy=4mrad/rev	θxθy=5mrad/rev Z=0.25mm/rev	θxθy=5mrad/rev Z=0.25mm/rev	θxθy=10mrad/rev	θxθy=10mrad/rev
Optics Diameter		Ø=25.4mm	Ø=25.4mm	Ø=25.4mm	Ø=25.4mm	Ø=25.4mm	Ø=25.4mm
Type		Right-Angle Kinematic Mirror Mount	Right-Angle Kinematic Mirror Mount	Ø 1" Kinematic Mirror Mounts	Ø 1" Kinematic Mirror Mounts	Ø1" Beam splitter Mount	Ø1" Gimbal Mirror Mount
Connection		M3 Thread	6mm Hole	6mm Hole	6mm Hole	M3 Thread	6mm Hole

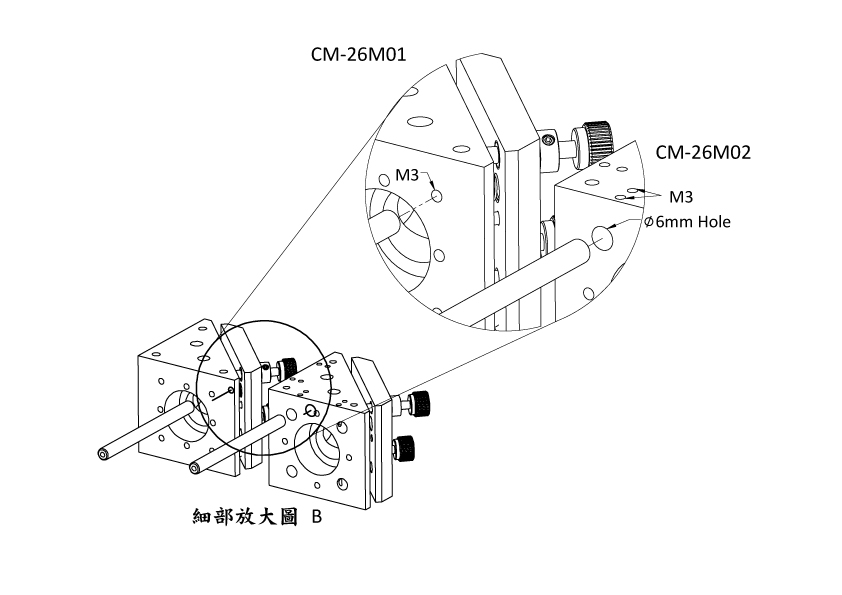

Drawing
