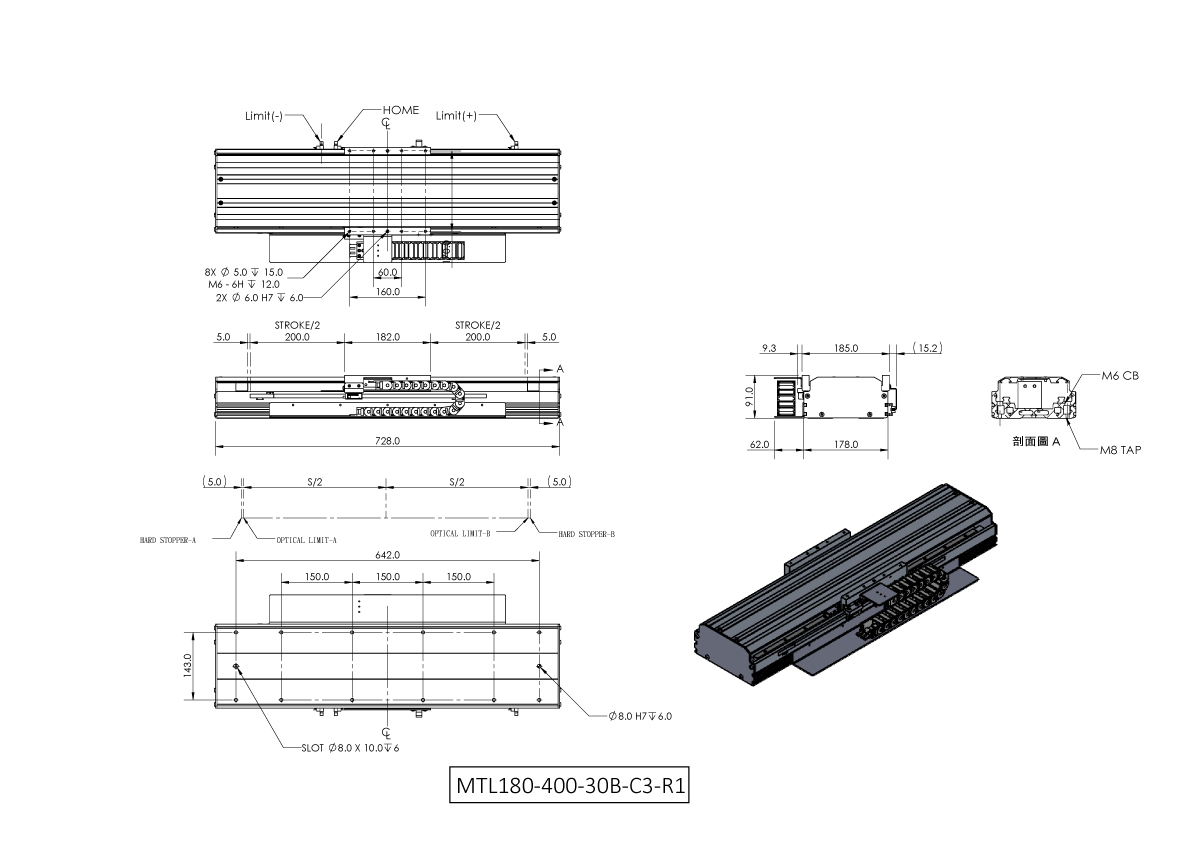

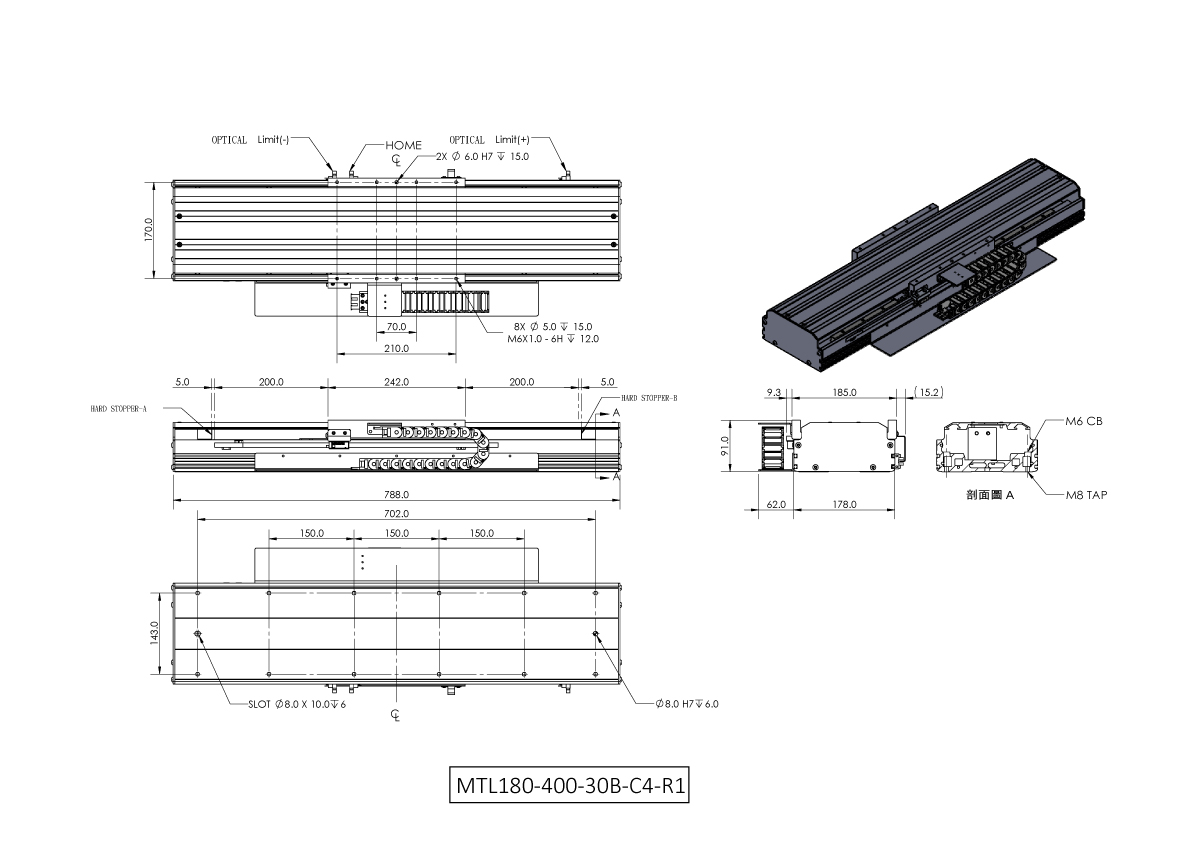

2D-Drawing



MTL180-400

• Fast speed, zero backlash.
• Optional resolution of 0.1um or 1.0um.
• Made of solid aluminum alloy with high rigidity.
• Applicable to optical inspection.
• Ironless Linear Motor Drive with excellent positioning accuracy.



Specifications
Compare MTL180-400-30B-C3-R10 MTL180-400-30B-C4-R10 MTL180-400-30B-C3-R01 MTL180-400-30B-C4-R01
Travel 400mm
Resolution  1um 0.1um
Repeatability <3um <±0.3um
Peak Force 434N 579N 434N 579N
Continuous Force@120°C 87N 116N 87N 116N
Price US$3172.41 US$3379.31 US$3172.41 US$3379.31



Part No. Deadline Price Quantity Cart
MTL180-400-30B-C3-R10

X Linear Motor Stage/400mm Travel Range/1um Resolution/87N Continuous Force@120°C

Inquiry
US$3172.41
MTL180-400-30B-C4-R10

X Linear Motor Stage/400mm Travel Range/1um Resolution/116N Continuous Force@120°C

Inquiry
US$3379.31
MTL180-400-30B-C3-R01

X Linear Motor Stage/400mm Travel Range/0.1um Resolution/87N Continuous Force@120°C

Inquiry
US$3172.41
MTL180-400-30B-C4-R01

X Linear Motor Stage/400mm Travel Range/0.1um Resolution/116N Continuous Force@120°C

Inquiry
US$3379.31
