Model Definition




5-Phase Closed Loop Stepper Motor System

Pin Diagrams



Male Description Female Description
Pin
 Description Pin Description Pin Description Pin Description
1
 Home(output 0V NPN) 10 5 Phase Motor E (Black) 1 - 10 -
2
 GND 11 - 2 - 11 -
3
Forward Limit Switch
(output 0V NPN)
 12 - 3 - 12 Encoder Z+
4
Reverse Limit Switch
(output 0V NPN)
 13 - 4 Encoder Z- 13 Encoder B+
5
 Vcc +(24 VDC) 14 - 5 Encoder B- 14 Encoder A+

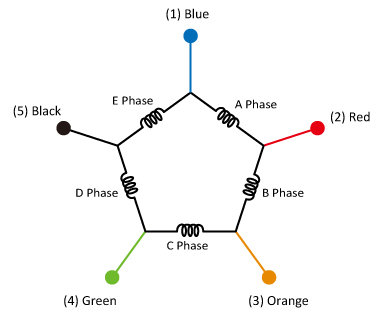

6 5 Phase Motor A (Blue) 15

6 Encoder A- 15 -
7 5 Phase Motor B (Red)   7 -   -
8 5 Phase Motor C (Orange)   8 5V   -
9 5 Phase Motor D (Green)   9 0V   -

Part No. Deadline Price Quantity Cart
CTC-5-1-F200-110

1-Channel /5 Phase Closed-loop Stepper motor Controller/Resolution:20000 /110V

Inquiry
US$1762.72
CTC-5-2-F200-110

2-Channel /5 Phase Closed-loop Stepper motor Controller/Resolution:20000 /110V

Inquiry
US$2101.7
CTC-5-3-F200-110

3-Channel /5 Phase Closed-loop Stepper motor Controller/Resolution:20000 /110V

Inquiry
US$2576.28
CTC-5-4-F200-110

4-Channel /5 Phase Closed-loop Stepper motor Controller/Resolution:20000 /110V

Inquiry
US$2881.36
