Translating Rectangular Filter Holders

PLH-XY-series

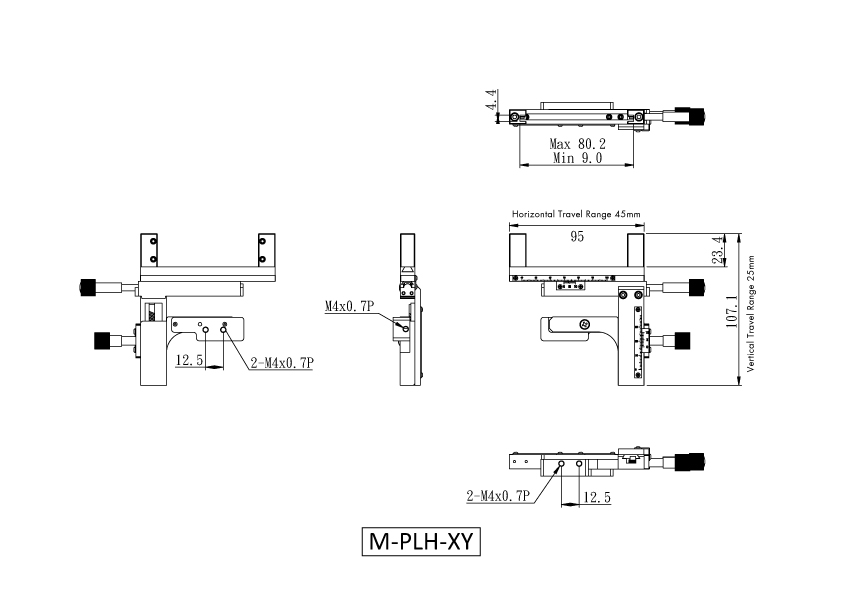

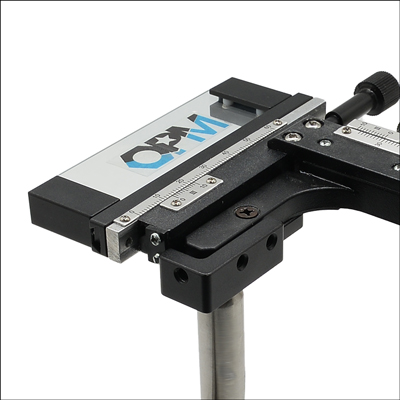

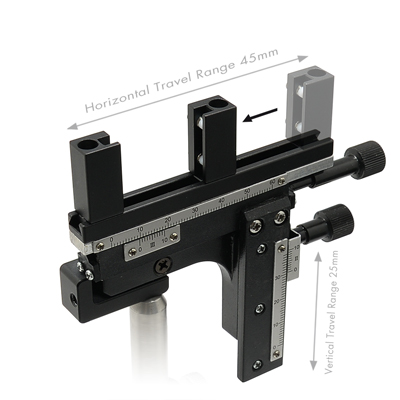

• PLH-XY can install square optical elements with a width of 9.0mm~80.0mm and a thickness of up to 4.0mm. The PLH-XY has two drivers, the adjustment range is 45mm and 25mm, and each translation axis has a resolution of 0.1mm, which can be used for Accurate positioning of mounted optics.

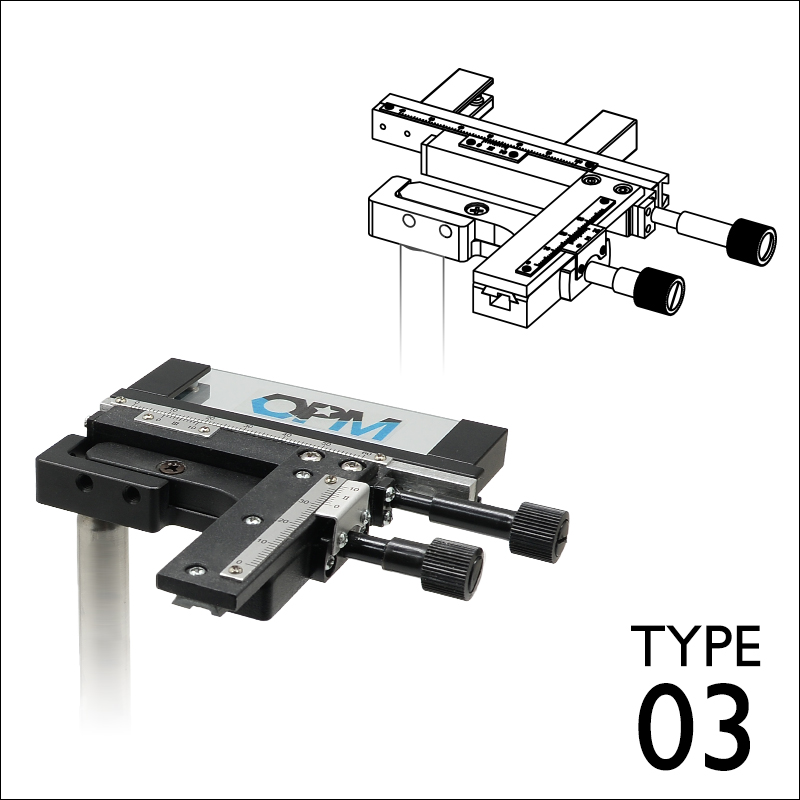

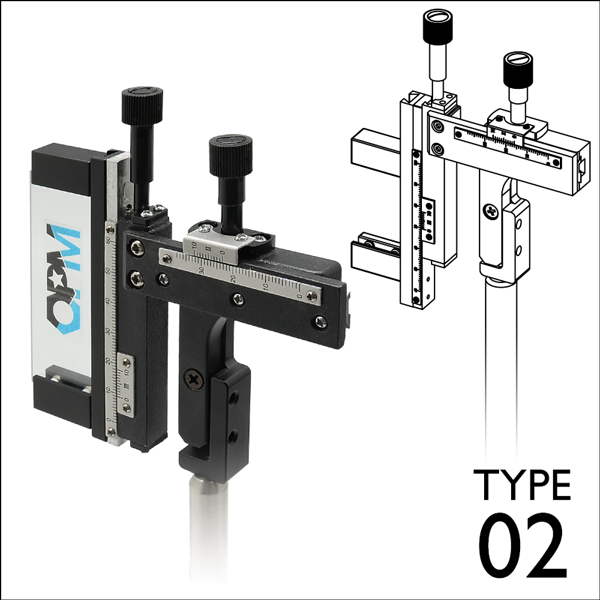

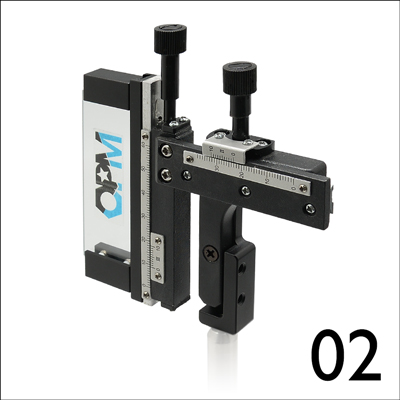

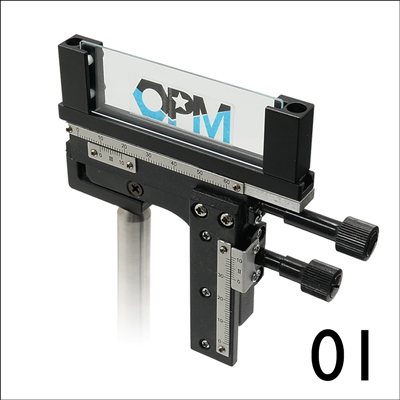

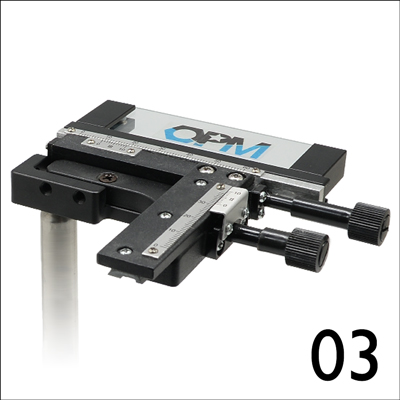

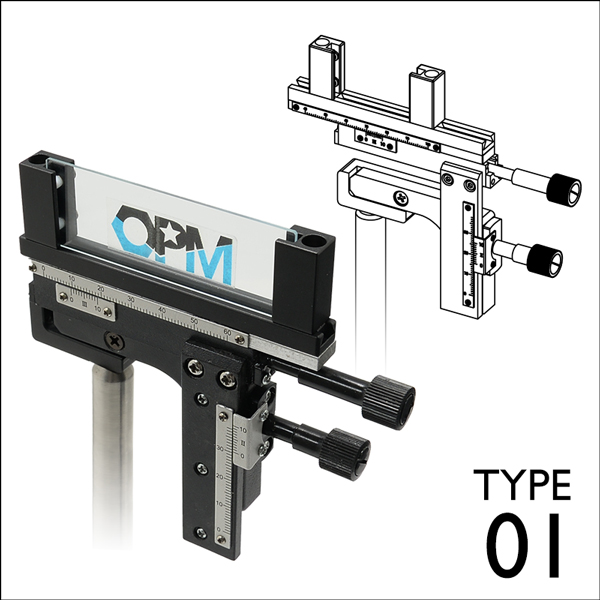

• Each PLH-XY has 3 mounting threads, so there are 3 mounting methods (as shown in the picture)

• Note: 4.4mm of each end will be covered when the optic is placed in the groove.

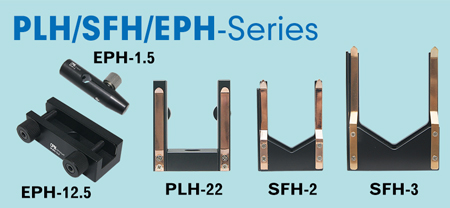

Optical Fixing Mounting Clamps

• Material: Aluminum

• Filter / Plate / Various Optical Size Mounting

• Mounting Thickness : 0 - 13 mm

Specifications
Item Number M-PLH-A M-PLH-22 M-SFH-2 M-SFH-3 M-EPH-12.5 M-EPH-1.5
Width(mm) 307.2mm 50mm 50mm 76mm - -
Thickness(mm) 13mm 4mm 3mm 3mm 12.5mm 1.5mm



Part No. Deadline Price Quantity Cart
M-PLH-XY

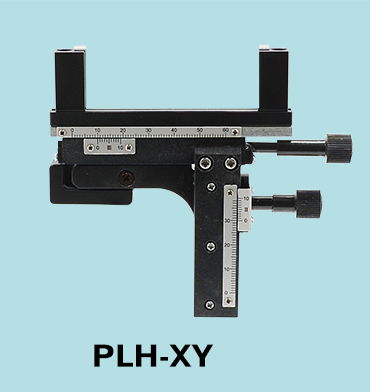

Horizontal / Vertical Adjusting Optical Fixing Mounting Clamps.

In stock
US$248.28
M-PLH-22

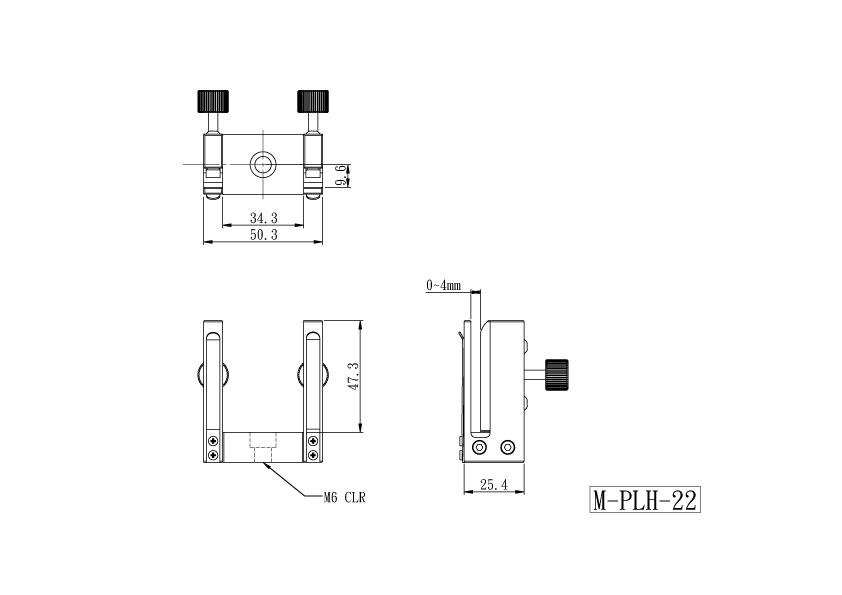

Plate Clamps / Width Mount 50 mm / Thickness Mount 0-4mm

In stock
US$72.41
M-PLH-A

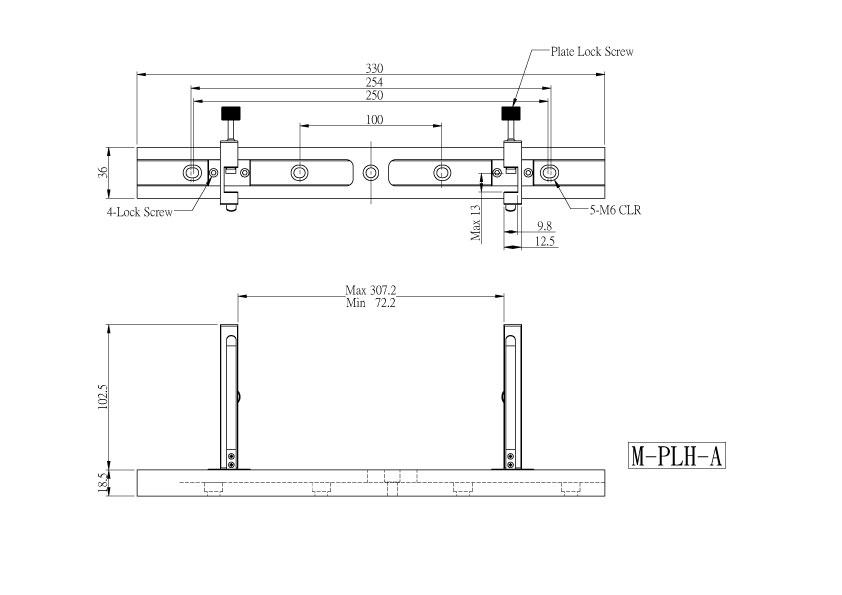

Plate Clamps / Width Mount 63.5-283 mm / Thickness Mount 0-4mm

In stock
US$156.90

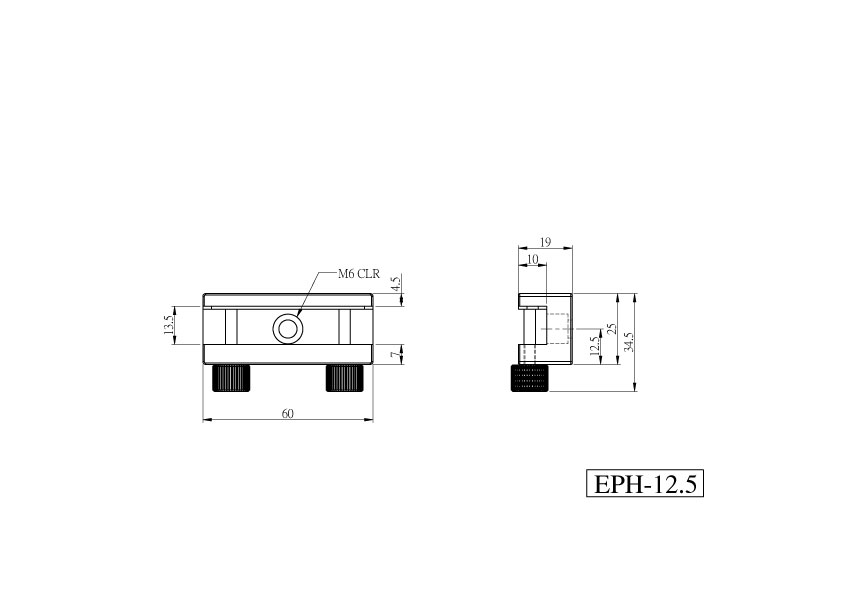

M-EPH-12.5

Economical Plate Clamps / Thickness Mount 0-12.5mm / M6 CLR

In stock
US$20.69

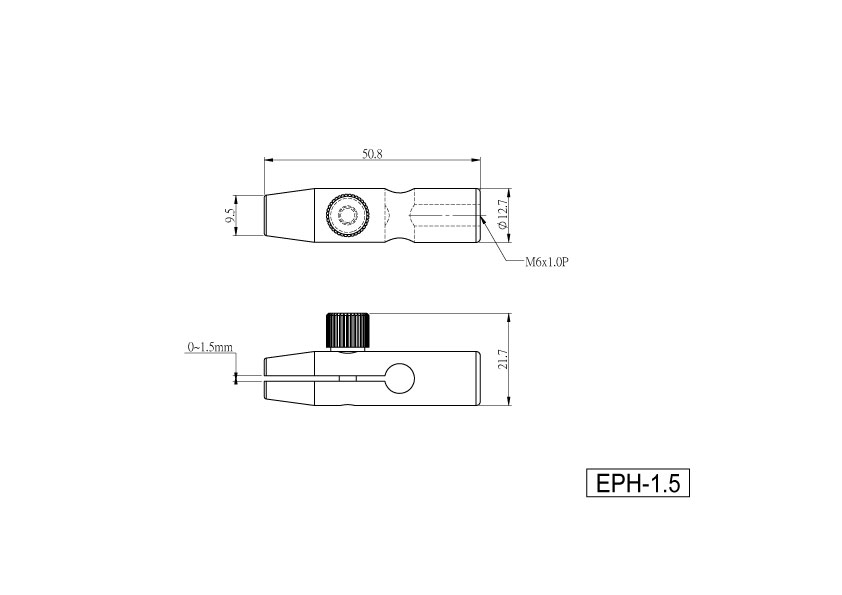

M-EPH-1.5

Economical Plate Clamps / Thickness Mount 0-1.5mm / M6 Taps

In stock
US$20.69
M-SFH-2

Single Filter Mounts / Width Mount 50 mm / Thickness Mount 0-3mm

In stock
US$32.76

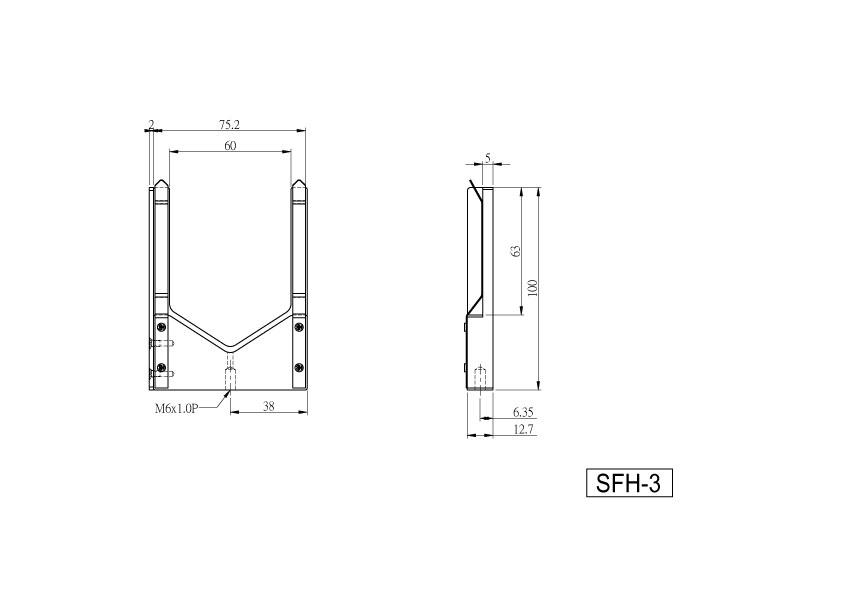

M-SFH-3

Single Filter Mounts / Width Mount 76 mm / Thickness Mount 0-4mm

In stock
US$46.55
