Overview

  Up to 40N,loading for linear type 1.5N for vertical type

  Travel range: 28 to 44 mm for linear type; 10 mm for vertical type

  100nm / 1nm  Resolution

  The performance data is verified by the triple beam interferom-eter for providing the best quality of the measuring result.

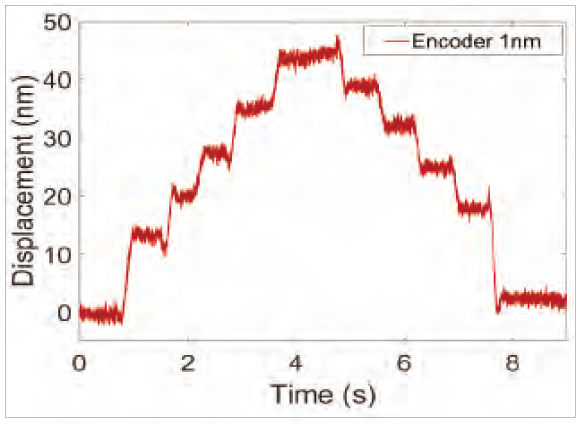

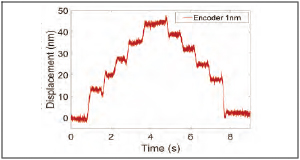

Motion performance






Click to Enlarge







Click to Enlarge


Mechanical Properties
Model number MMPX42-28A1 MMPX52-36A1 MMPX62-44A1 MMPZ42-10A1
Travel range (mm) 28mm 36mm 44mm 10mm

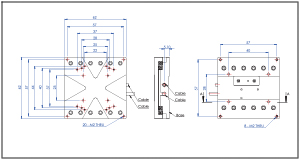

Dimension L, W, H (mm) 42x42x15mm 52x52x15mm 62x62x15mm 42x42x37mm
Guide Type Crossed roller bearings
Material Anodized aluminum as standard; Stainless steel
Weight (g) 53 85 130 165
Allowable Load 4kg 150g
Allowable Axis Load 150 g
Pitch / Yaw  ±200 µrad/  ±100 µrad
Maximum Speed 10 mm/s
Encoder Resolution 1 nm
Min. incremental motion 15 nm
 Bidirectional repeatability 50 nm
Home function yes
Limit function yes




Part No. Deadline Price Quantity Cart
MMPX42-28A001

1 nm resolution/Travel range (mm):28/Dimension L, W, H (mm):42x42x15

Contact us
US$3466.66
MMPX52-36A001

1 nm resolution/Travel range (mm):36/Dimension L, W, H (mm):52x52x15

Contact us
US$3533.33
MMPX62-44A001

1 nm resolution/Travel range (mm):44/Dimension L, W, H (mm):62x62x15

Contact us
US$3600.00
MMPZ42-10A001

1 nm resolution/Travel range (mm):10/Dimension L, W, H (mm):42x42x37

Contact us
US$3433.33
