Scanner Head Adjustment Adapter

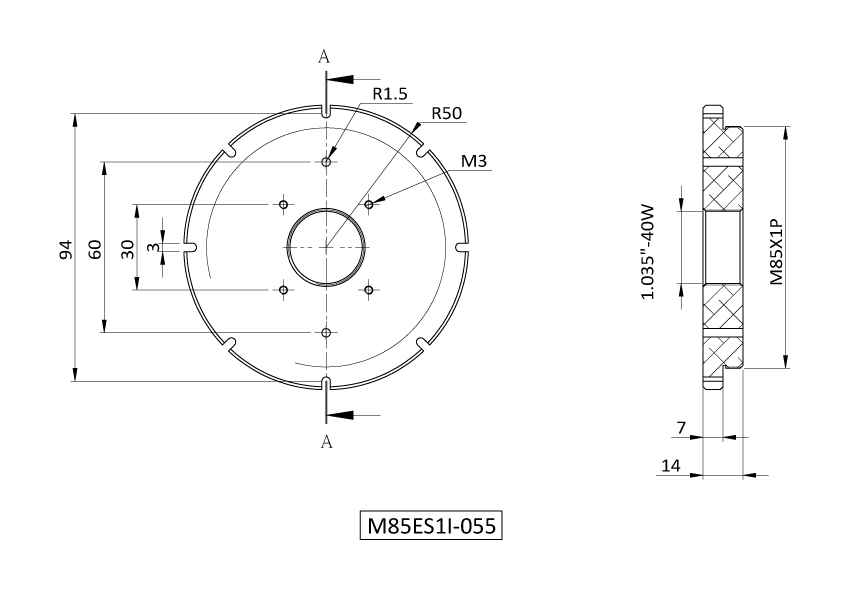

• Equipped with an external M85X1P thread for compatibility with commercially available vibration lenses.

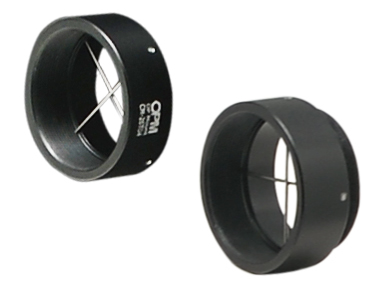

• Has an internal 1.035”-40W thread compatible with the CM-26T09 target for optical alignment.

• Features four metric M3 internal threads spaced 30mm apart at the center.

• There is a 3mm-wide notch on the outer edge, facilitating tool application for exerting force.

• Constructed from aluminum alloy.

When aligning the origin coordinates of the vibration lens with the laser light, adjustments are often not intuitive and quick.

The M85ES1I has an internal 1.035”-40W threaded hole at the center, allowing it to be paired with a target featuring an external 1.035”-40W thread. This enables quick collimation through the target. Additionally, the four M3 holes spaced 30mm apart at the center offer the capability to accommodate other observation equipment (such as beam profilers and power meters).
