  6. LJB-series




Click to enlarge

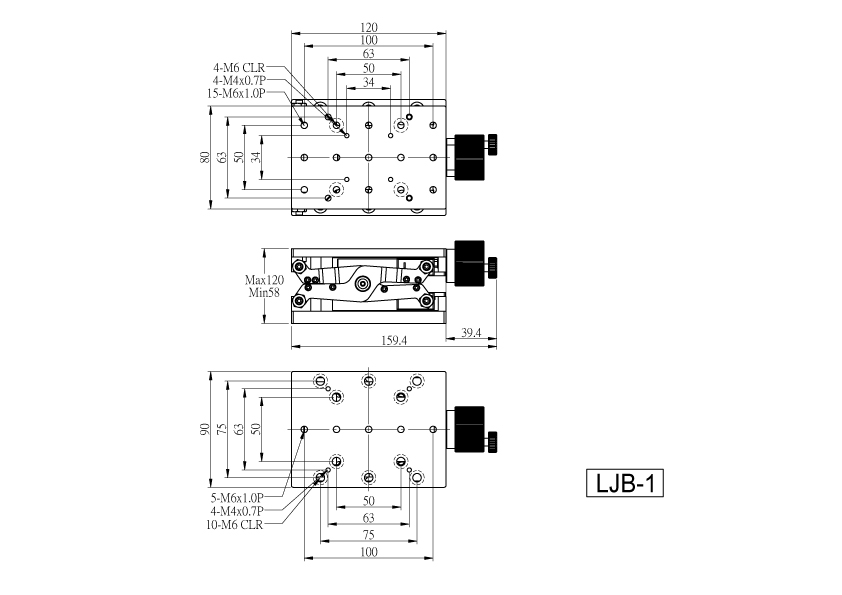

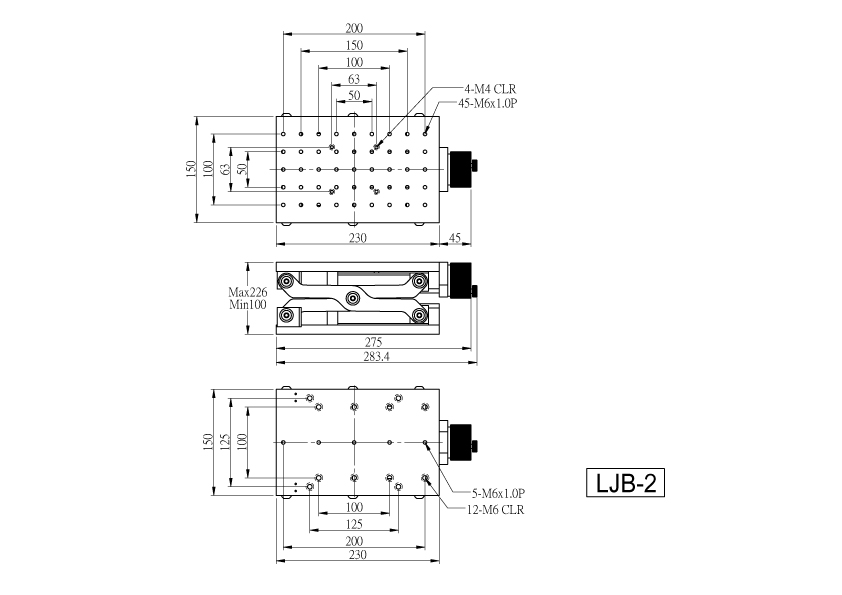

2D-Drawing


Z-axis Stage

LJB-series

The LJB series Z-axis displacement stages feature a shear-type construction, offering low-profile, long-range capabilities. The internal stainless steel rails provide a Z-axis load capacity of up to 25 kg, and the platform includes an array of M6 and M4 threaded holes for component attachment, enhancing installation flexibility.

• The LJB-1 platform has dimensions of 80x120mm, with a travel range from 62mm to 120mm and a vertical load capacity of up to 25kg. It boasts a compact size while offering high load-bearing capabilities.

• The LJB-2 platform measures 150x230mm, with a travel range from 106mm to 226mm and a vertical load capacity of up to 40kg.

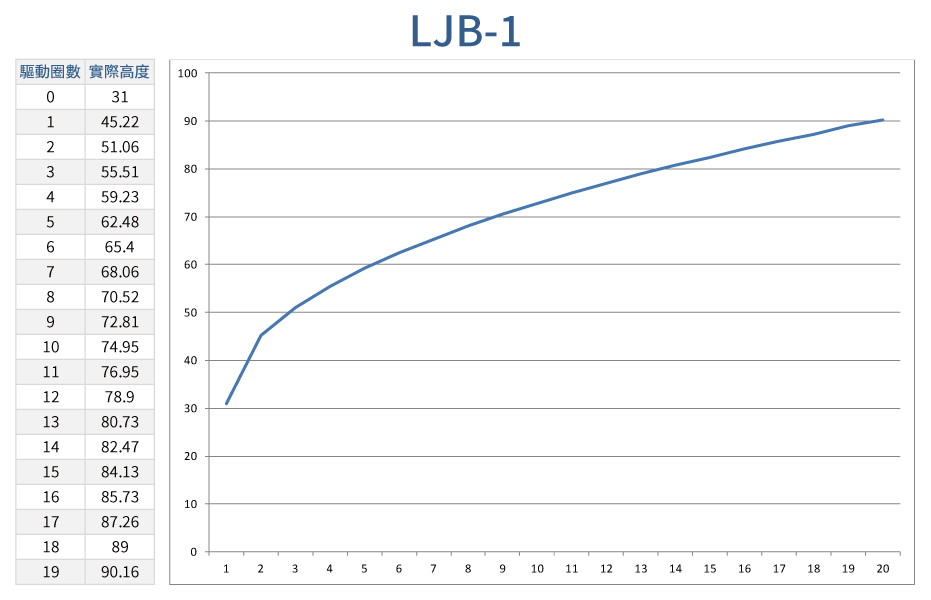

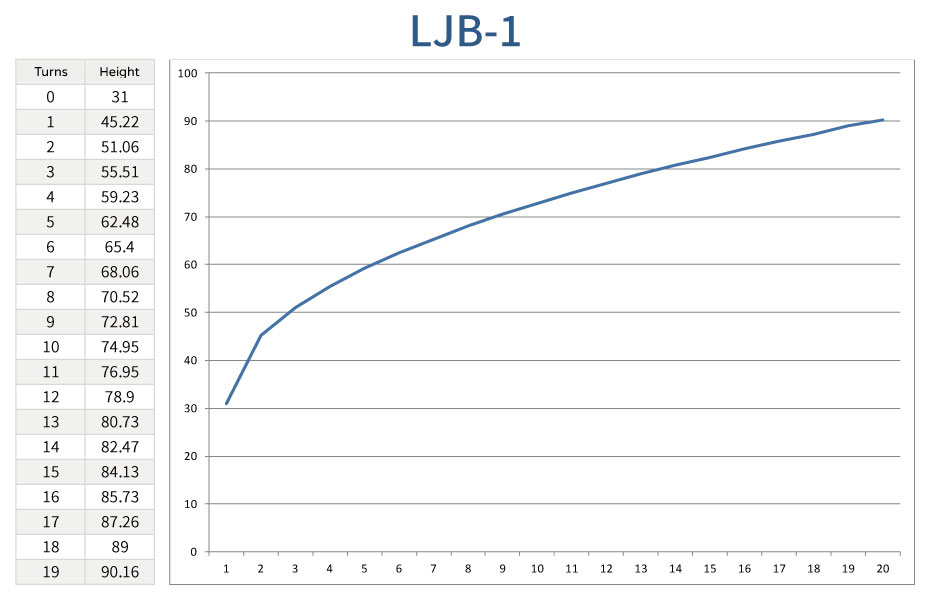

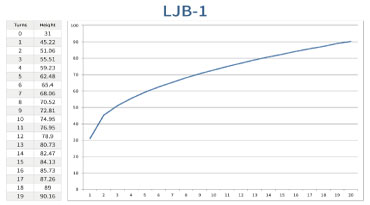

Specification
Part Number : M-LJB-1 M-LJB-2
Platform size :  80mmx120mm 150mmx230mm
Travel : 62mm~120mm 106mm~226mm
Loading : 25kg 40kg
Structure : Lab Jack
Material : Aluminum 、Anodized Black



Part Number/Description Delivery Price Qty. Add to Cart
M-LJB-1

Shear-shaped Structure/60mm Travel
In Stock
US$362.07
M-LJB-2

Shear-shaped Structure/120mm Travel
In Stock
US$965.52
