  6. TCV32-Series

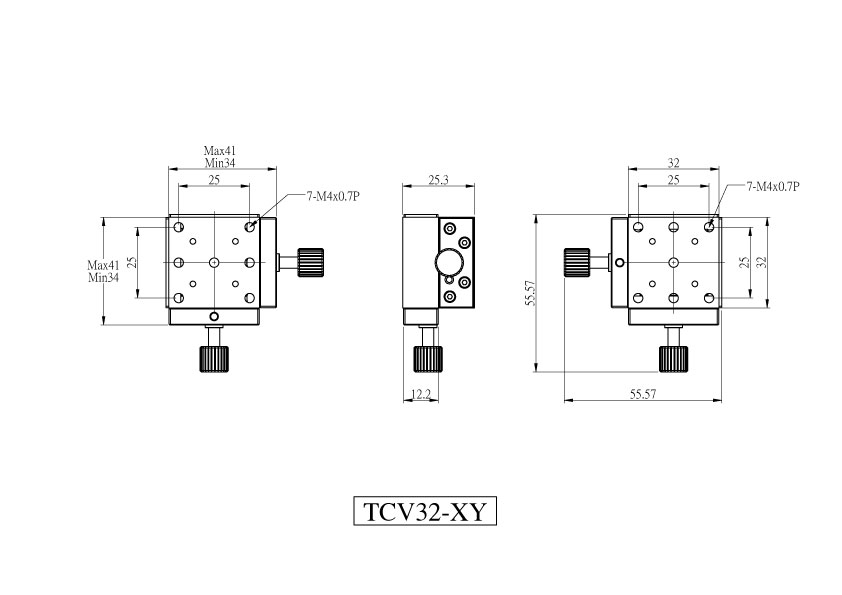

2D-Drawing



TCV32-series

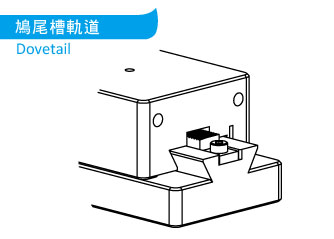

The TCV32 series utilizes a miniature dovetail groove track design, with a platform size of 32x32mm. The TCV32XY features an integrated design that provides excellent intersectionality in both the X and Y directions and employs high-precision 100TPI precision screws for actuation.




Specification
platform size Driver Travel Straightness Material Axis
32mm x 32mm
100TPI
調整螺絲
 7mm ±15um  Aluminum 、Anodized Black XY



Part Number/Description Delivery Price Qty. Add to Cart
M-TCV32XY-03A

Dovetail/0.3" Travel/Center Drive/Adjustment Screw(100TPI)
In Stock
US$172.41
