2D-Drawing



TSS180-4-series

• Side drive reduces space utilization and achieves a compact purpose.

• The TSS180 series platform employs a steel cross-roller bearing track design, characterized by high rigidity, high load capacity, low friction, and minimal operational noise. It is well-suited for applications requiring high-precision displacement. To cater to user convenience, we offer the option of two drive mechanisms: a 10um micrometer and a 100TPI precision screw.


• The platform dimensions of 180mm x 80mm offer excellent carrying capacity, allowing for better placement of various mechanical components.

Specification
 Platform Size Driver Travel Straightness Material
180mm x 80mm Micrometer / 100TPI Screws Side Driver ± 50 mm ±20mm  Aluminum 、Anodized Black





Part Number/Description Delivery Price Qty. Add to Cart

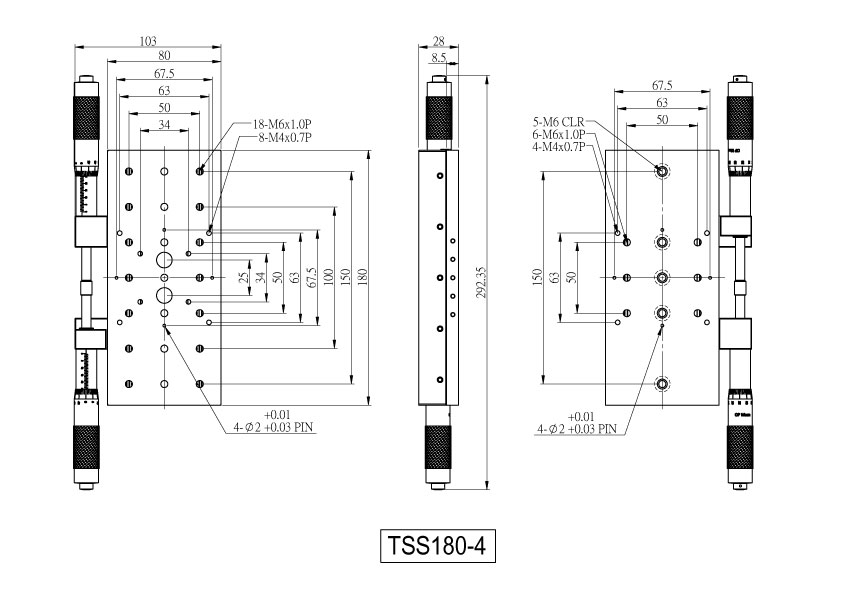

M-TSS180X-4

180mmx80mm / 101.6mm Travel / X-axis / Side Driver / 10um Micrometer
In Stock
US$644.83

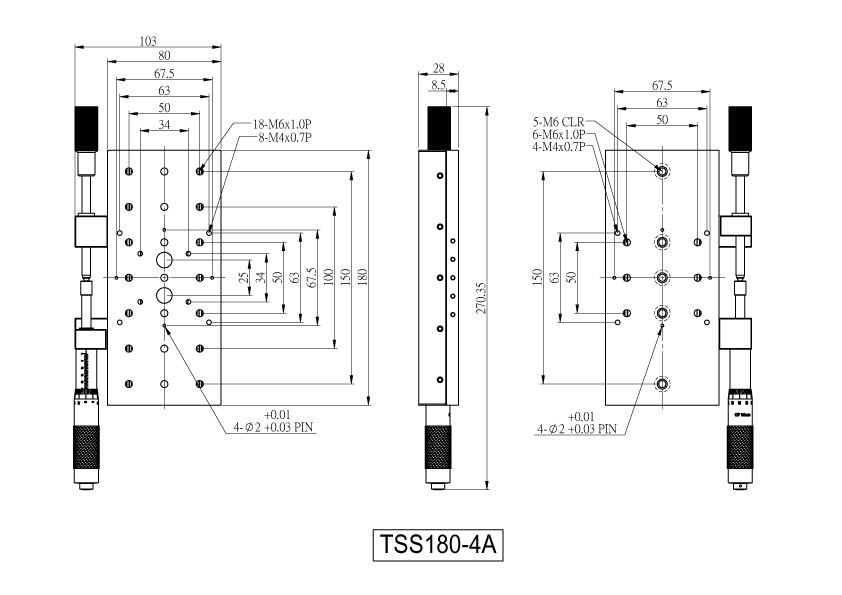

M-TSS180X-4A

180mmx80mm / 101.6mm Travel / X-axis / Side Driver / 100TPI Screws
In Stock
US$575.86
