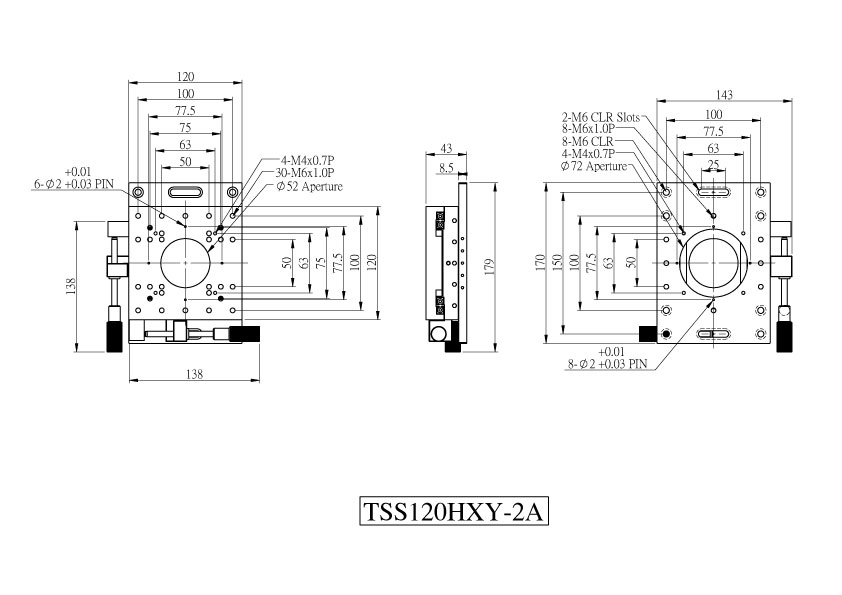

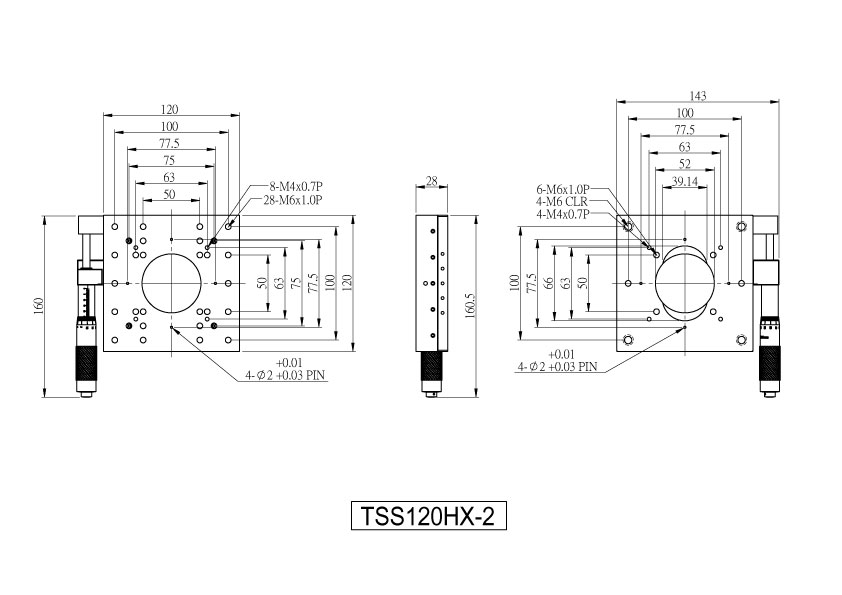

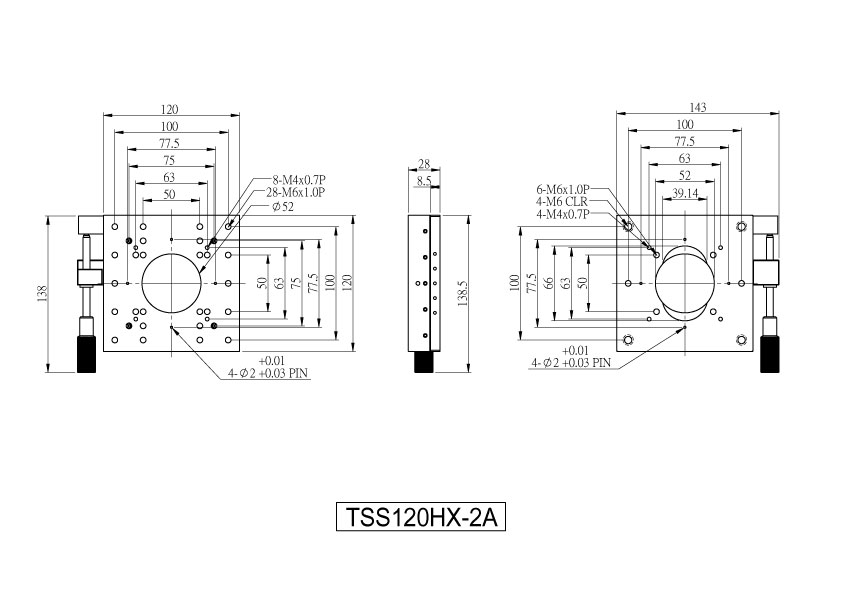

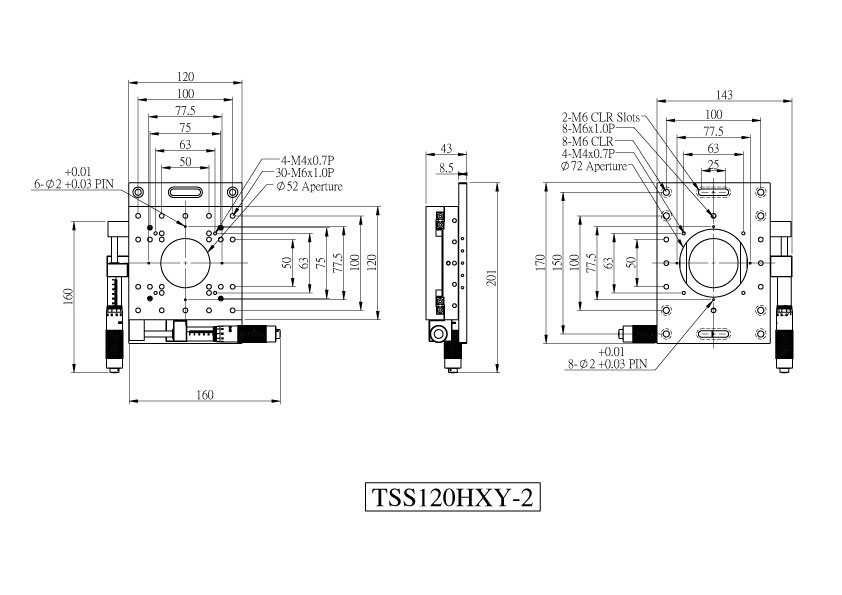

2D-Drawing



TSS120H-2-series

• The TSS120H series platform employs a steel cross-roller bearing track design, characterized by high rigidity, high load capacity, low friction, and minimal operational noise. It is well-suited for applications requiring high-precision displacement. To cater to user convenience, we offer the option of two drive mechanisms: a 10um micrometer and a 100TPI precision screw.

• The platform employs an integrated XY-axis design structure, achieving precise right angles and reducing the thickness of the platform. The 120mm platform dimensions allow for better placement of various mechanical components.

• The central part of this platform features a 52mm through-hole design, which provides an ideal option when bottom illumination or penetration is required.
Specification
 Platform Size Driver Travel Straightness Material
120 x 120mm Micrometer / 100TPI Screws Side Driver ±25mm ±10um  Aluminum 、Anodized Black





Part Number/Description Delivery Price Qty. Add to Cart
M-TSS120HX-2

120mmx120mm / 50mm Travel / X-axis / Side Driver / 10um Micrometer / Central Aperture
In Stock
US$431.03
M-TSS120HX-2A

120mmx120mm / 50mm Travel / X-axis / Side Driver / 100TPI Screws / Central Aperture
In Stock
US$396.55
M-TSS120HXY-2

120mmx120mm / 50mm Travel / XY-axis / Side Driver / 10um Micrometer / Central Aperture
In Stock
US$862.07
M-TSS120HXY-2A

120mmx120mm / 50mm Travel / XY-axis / Side Driver / 100TPI Screws / Central Aperture
In Stock
US$793.10
