TCS120H-2-series
• The TCS120H series platform employs a steel cross-roller bearing track design, characterized by high rigidity, high load capacity, low friction, and minimal operational noise. It is well-suited for applications requiring high-precision displacement. To cater to user convenience, we offer the option of two drive mechanisms: a 10um micrometer and a 100TPI precision screw.

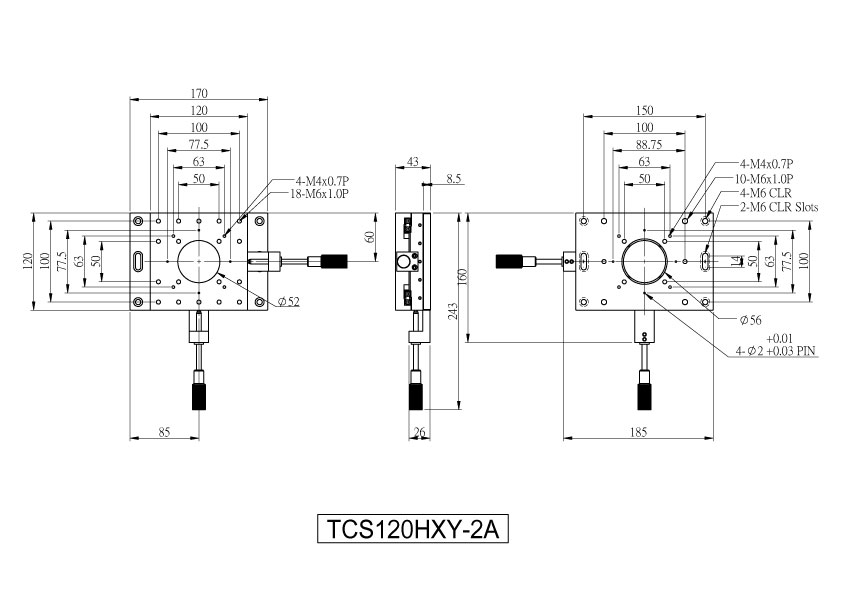

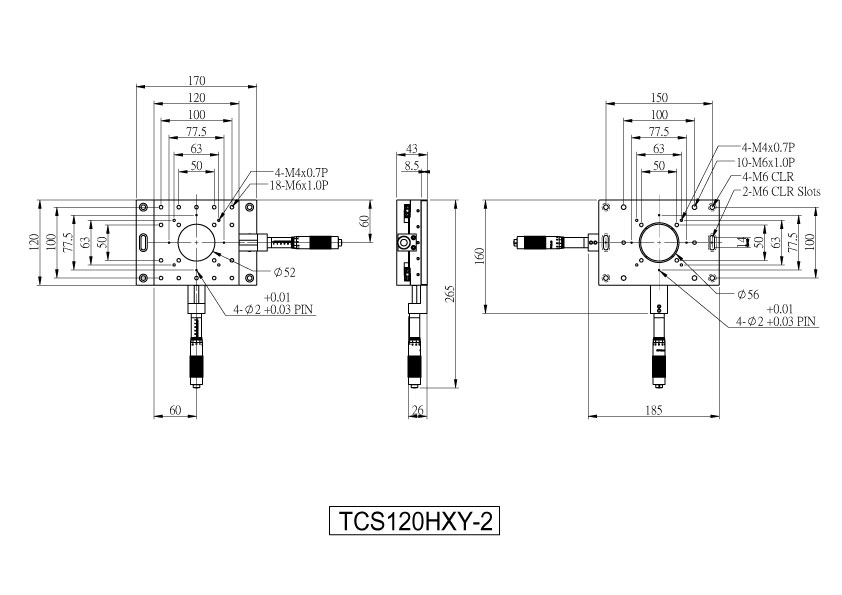

• The platform employs an integrated XY-axis design structure, achieving precise right angles and reducing the thickness of the platform. The 120mm platform dimensions allow for better placement of various mechanical components.
• The central part of this platform features a 52mm through-hole design, which provides an ideal option when bottom illumination or penetration is required.
| Specification |
| Platform Size | Driver | Travel | Straightness | Material |
| 120 x 120mm | Micrometer / 100TPI Screws Center Driver | ±25mm | ±10um | Aluminum 、Anodized Black |
| Products | Part Number/Description | Delivery | Price | Qty. | Add to Cart |
