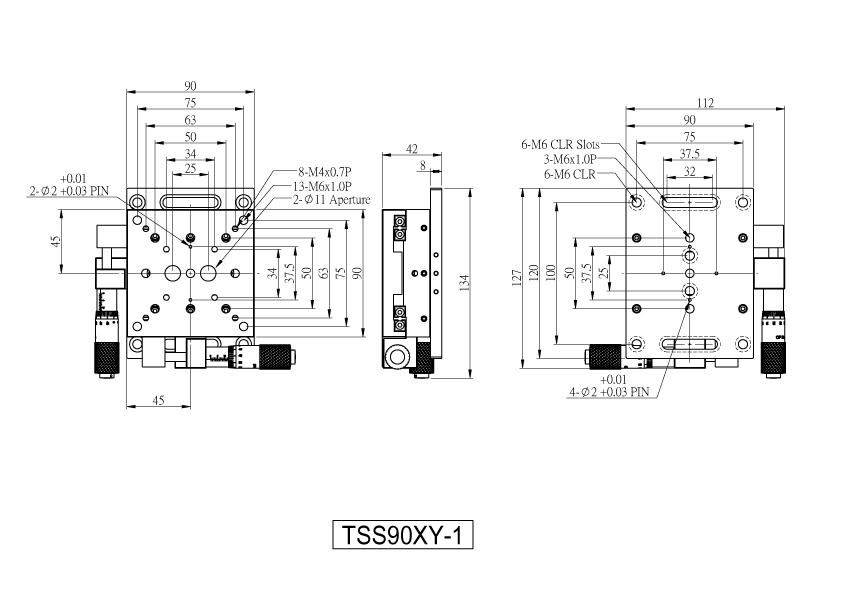

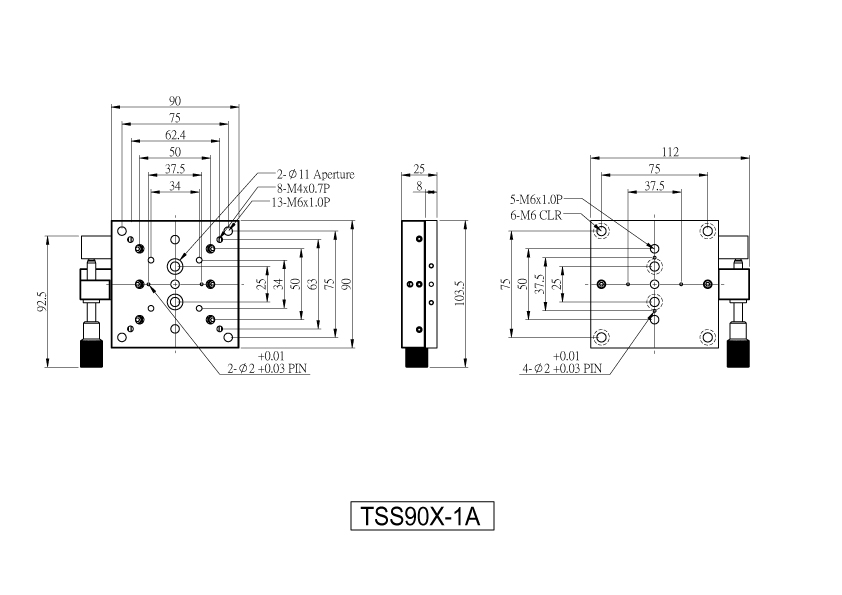

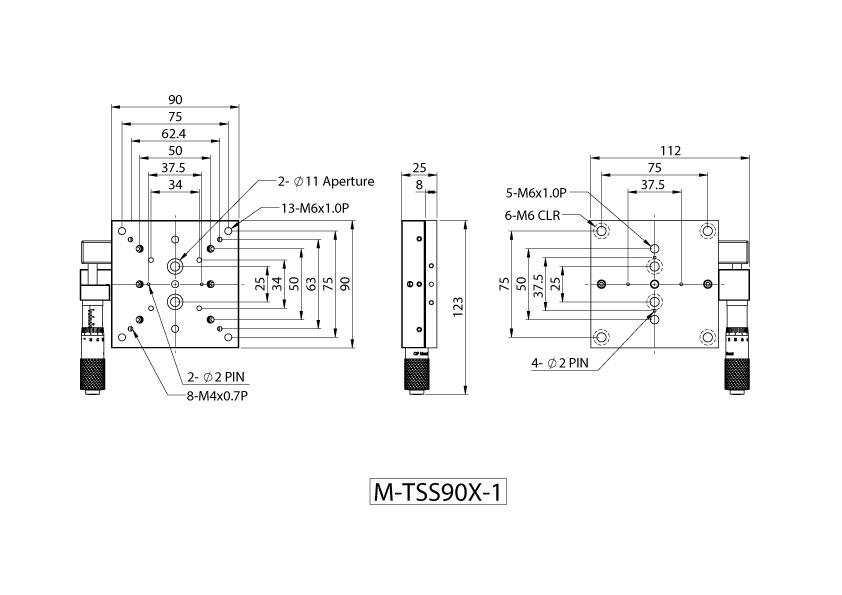

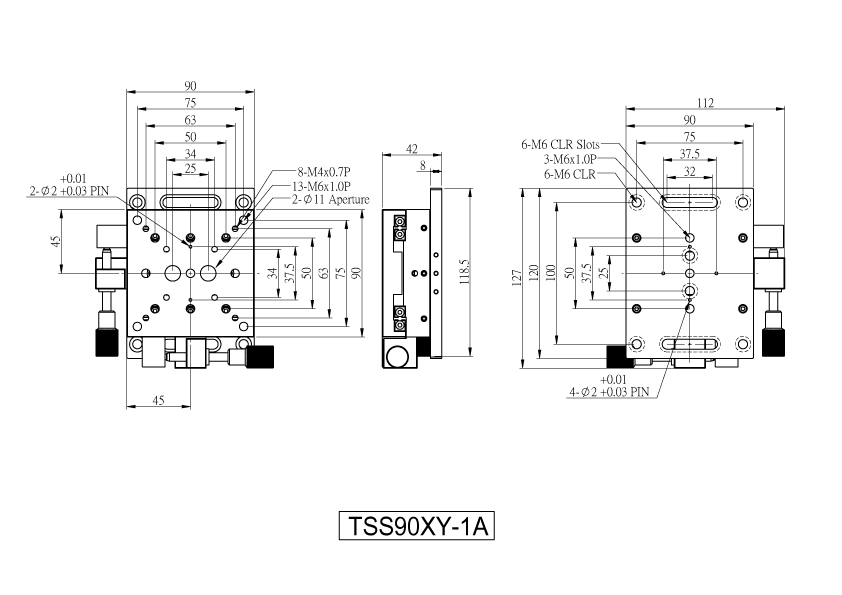

2D-Drawing



TSS90-1-series

• Side drive reduces space utilization and achieves a compact purpose.

• The TSS90 series platform employs a steel cross-roller bearing track design, characterized by high rigidity, high load capacity, low friction, and minimal operational noise. It is well-suited for applications requiring high-precision displacement. To cater to user convenience, we offer the option of two drive mechanisms: a 10um micrometer and a 100TPI precision screw.


• The platform employs an integrated XY-axis design structure, achieving precise right angles and reducing the thickness of the platform. The 90mm platform dimensions allow for better placement of various mechanical components.
Specification
 Platform Size Driver Travel

Resolution

 Straightness Material
90 x 90mm Micrometer / 100TPI Screws Side Driver ±12.5mm 10um ±10um  Aluminum 、Anodized Black





Part Number/Description Delivery Price Qty. Add to Cart
M-TSS90X-1

90mmx90mm / 25mm Travel / X-axis / Side Driver / 10um Micrometer
In Stock
US$268.97
M-TSS90X-1A

90mmx90mm / 25mm Travel / X-axis / Side Driver / 100TPI Screws
In Stock
US$248.28
M-TSS90XY-1

90mmx90mm / 25mm Travel / XY-axis / Side Driver / 10um Micrometer
In Stock
US$537.93
M-TSS90XY-1A

90mmx90mm / 25mm Travel / XY-axis / Side Driver / 100TPI Screws
In Stock
US$496.55
