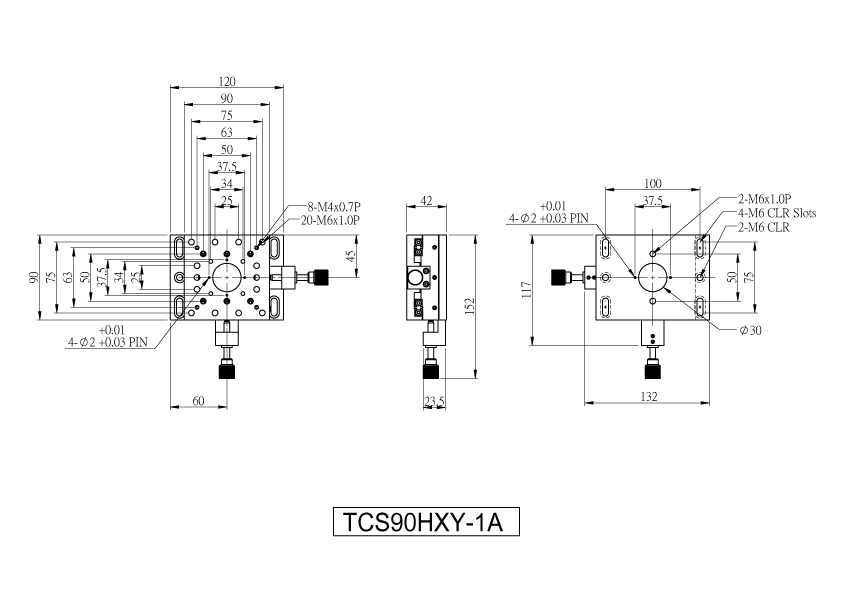

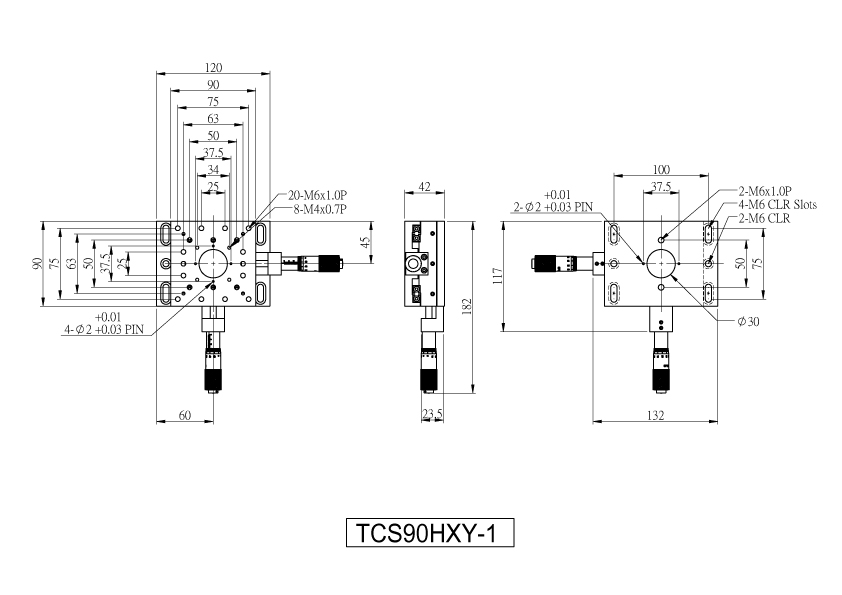

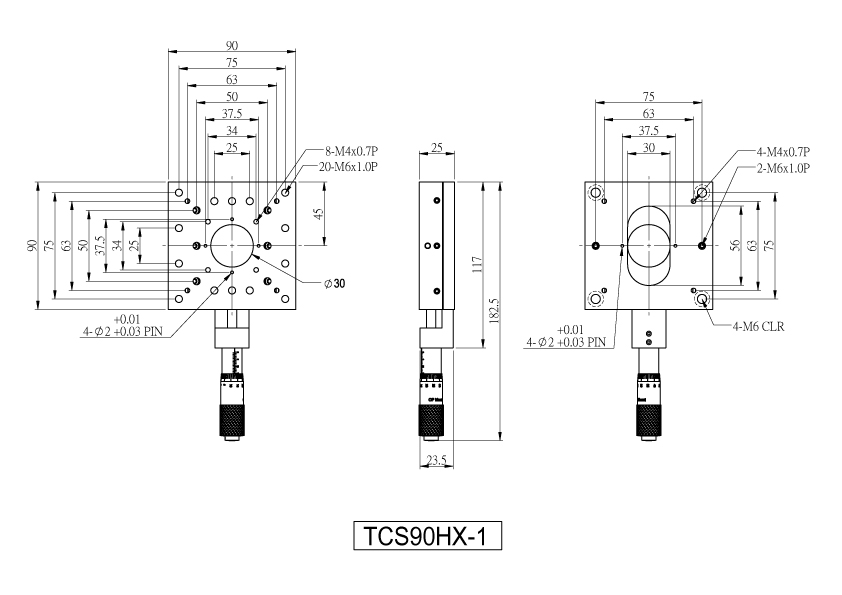

2D-Drawing



TCS90H-1-series

• The TCS90H series platform employs a steel cross-roller bearing track design, characterized by high rigidity, high load capacity, low friction, and minimal operational noise. It is well-suited for applications requiring high-precision displacement. To cater to user convenience, we offer the option of two drive mechanisms: a 10um micrometer and a 100TPI precision screw.

• The platform employs an integrated XY-axis design structure, achieving precise right angles and reducing the thickness of the platform. The 90mm platform dimensions allow for better placement of various mechanical components.

• There is a central Ø30 through-hole design on this platform, which provides an ideal option for bottom illumination or penetration needs.
Specification
 Platform Size Driver Travel

Resolution

 Straightness Material
90 x 90mm Micrometer / 100TPI Screws Center Driver ±12.5mm 10um ±10um  Aluminum 、Anodized Black





Part Number/Description Delivery Price Qty. Add to Cart
M-TCS90HX-1

90mmx90mm / 25mm Travel / X-axis / Center Driver / 10um Micrometer / Central Aperture
In Stock
US$286.21
M-TCS90HX-1A

90mmx90mm / 25mm Travel / X-axis / Center Driver / 100TPI Screws / Central Aperture
In Stock
US$265.52
M-TCS90HXY-1

90mmx90mm / 25mm Travel / XY-axis / Center Driver / 10um Micrometer / Central Aperture
In Stock
US$572.41
M-TCS90HXY-1A

90mmx90mm / 25mm Travel / XY-axis / Center Driver / 100TPI Screws / Central Aperture
In Stock
US$531.03
