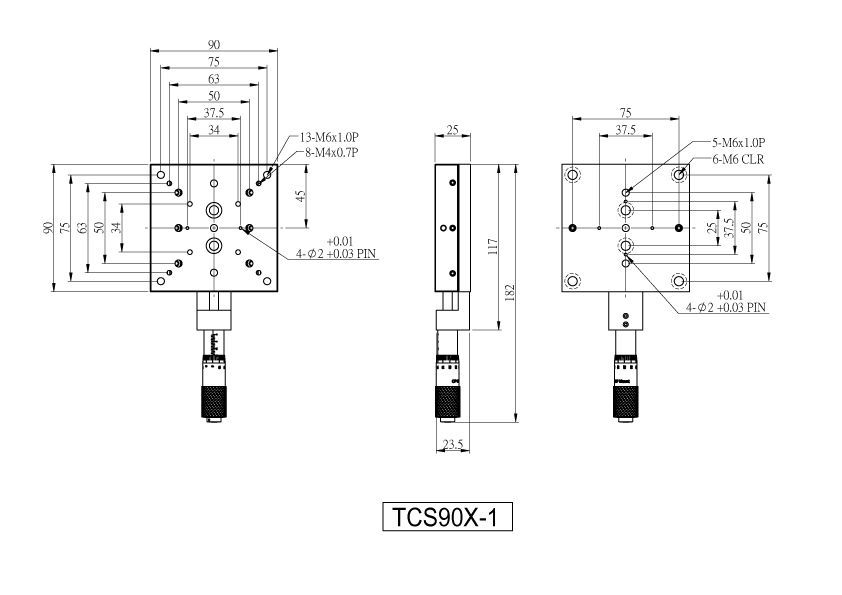

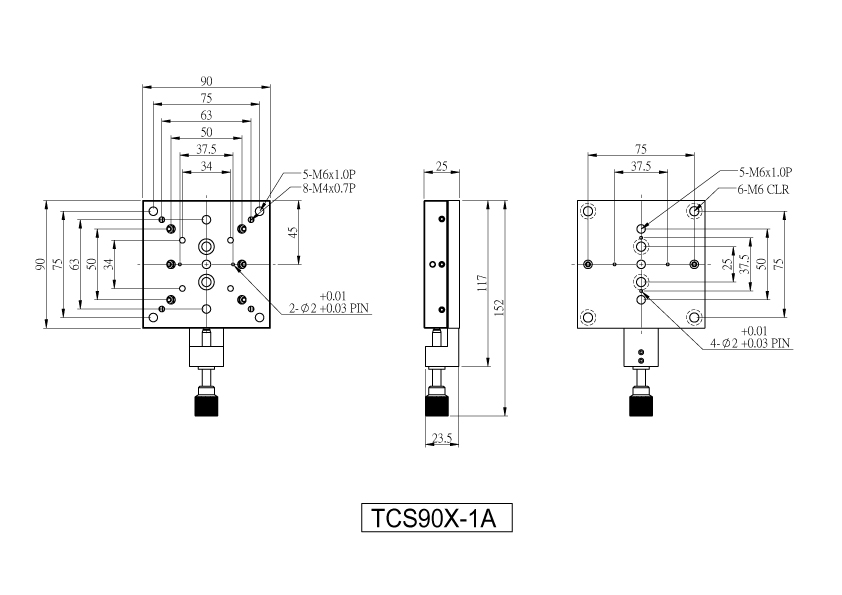

TCS90-1-series
• The TCS90 series platform employs a steel cross-roller bearing track design, characterized by high rigidity, high load capacity, low friction, and minimal operational noise. It is well-suited for applications requiring high-precision displacement. To cater to user convenience, we offer the option of two drive mechanisms: a 10um micrometer and a 100TPI precision screw.

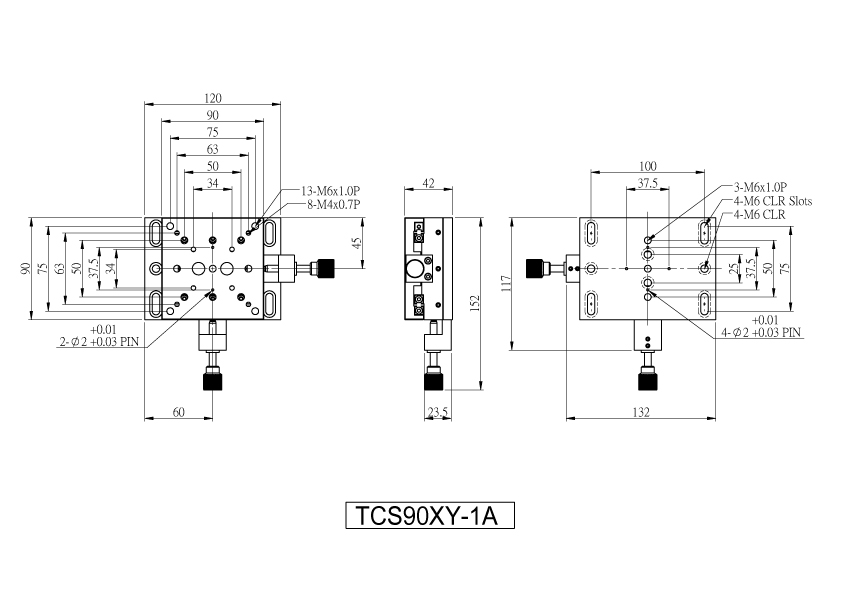

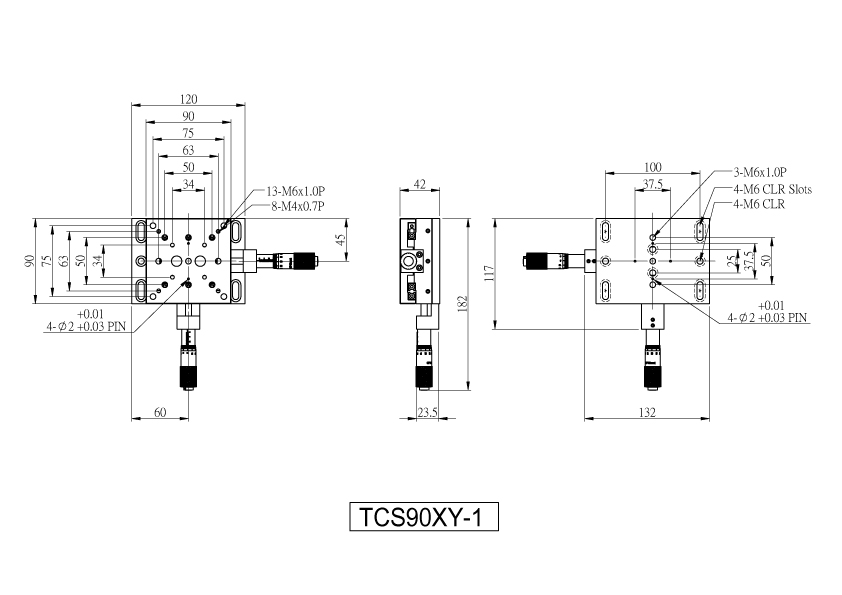

• The platform employs an integrated XY-axis design structure, achieving precise right angles and reducing the thickness of the platform. The 90mm platform dimensions allow for better placement of various mechanical components.
| Specification |
| Platform Size | Driver | Travel |
Resolution |
Straightness | Material |
| 90 x 90mm | Micrometer / 100TPI Screws Center Driver | ±12.5mm | 10um | ±10um | Aluminum 、Anodized Black |
