2D-Drawing



TSS60-05-series

• The TSS60 series platform employs a steel cross-roller bearing track design, characterized by high rigidity, high load capacity, low friction, and minimal operational noise. It is well-suited for applications requiring high-precision displacement. To cater to user convenience, we offer the option of two drive mechanisms: a 10um micrometer and a 100TPI precision screw.




•  And the M16 tapped hole at the center of the stage can mount PH-XJ post holders.


Specification
 Platform Size Driver Travel

Resolution

 Straightness Material
60 x 60mm Micrometer / 100TPI Screws Side Driver  ±6.5mm 10um ±7.5um  Aluminum 、Anodized Black





Part Number/Description Delivery Price Qty. Add to Cart

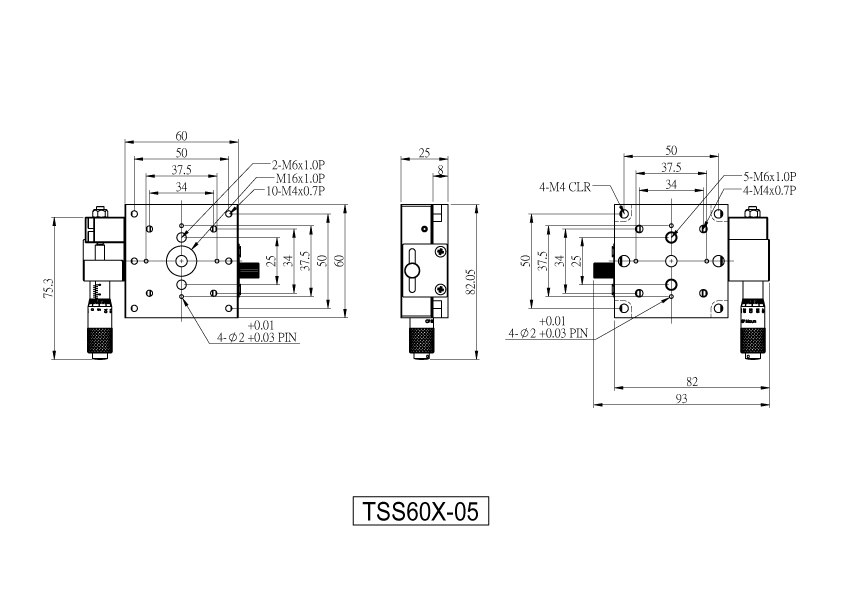

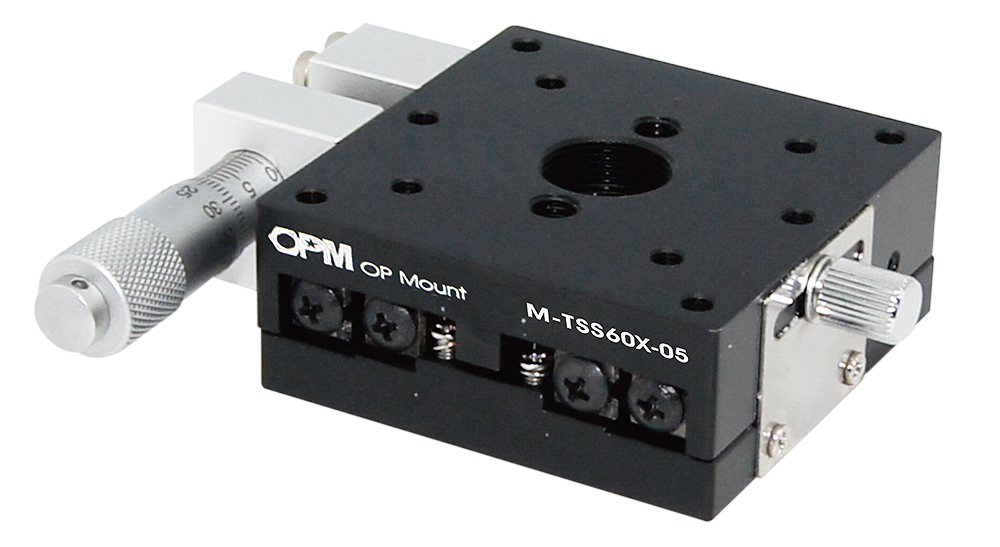

M-TSS60X-05

60mmx60mm / 13mm Travel / X-axis / Side Driver / 10um Micrometer
In Stock
US$234.48

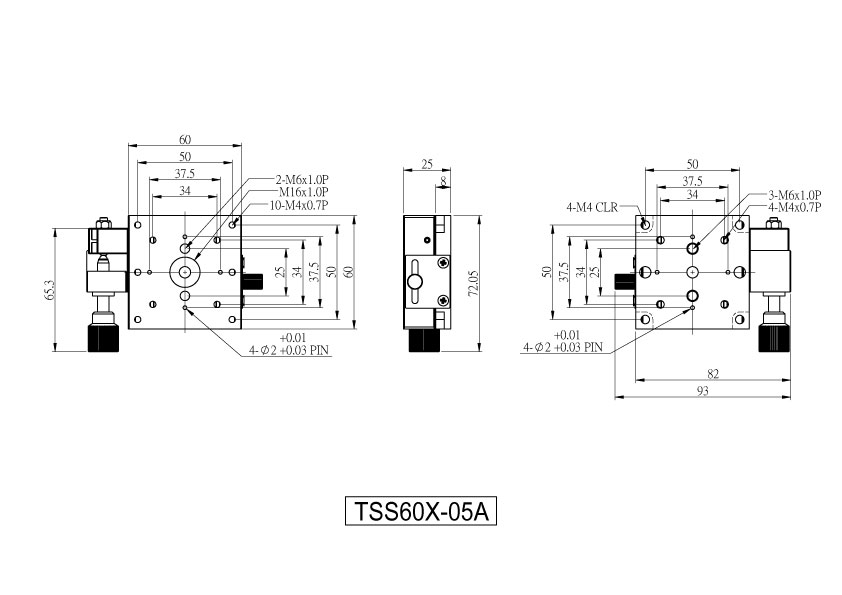

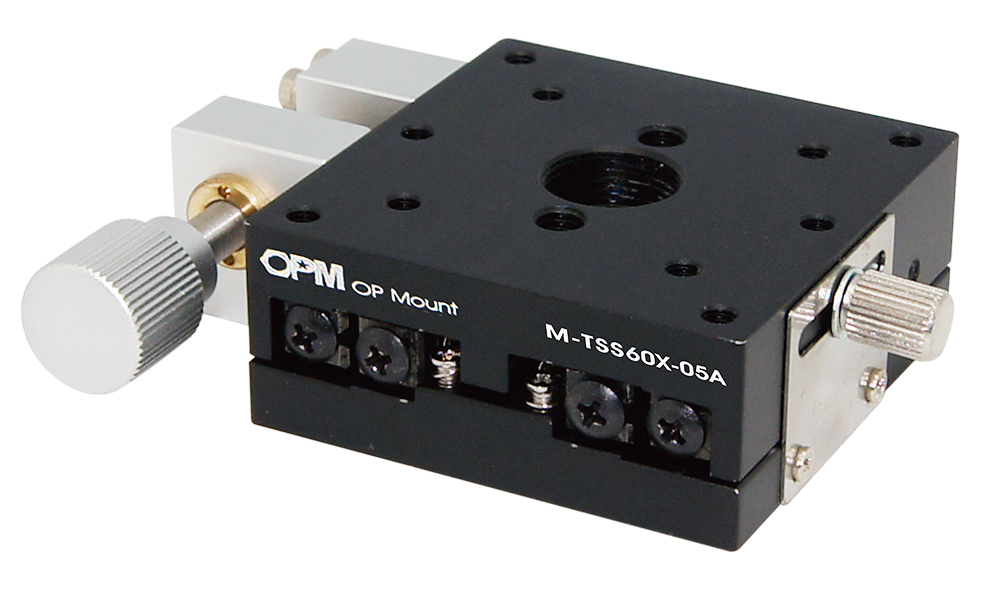

M-TSS60X-05A

60mmx60mm / 13mm Travel / X-axis / Side Driver / Adjustment Screw(100TPI)
In Stock
US$224.14

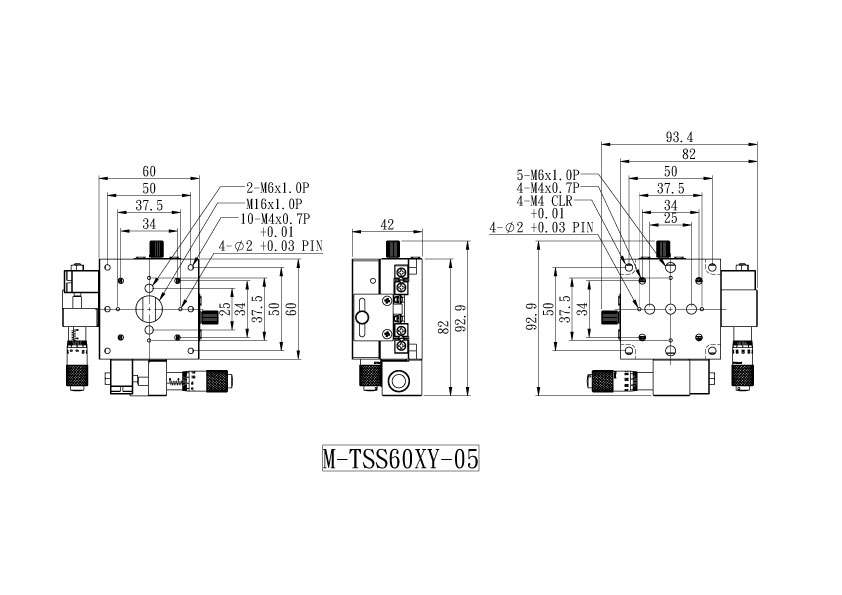

M-TSS60XY-05

60mmx60mm / 13mm Travel / XY-axis / Side Driver / 10um Micrometer
In Stock
US$431.03

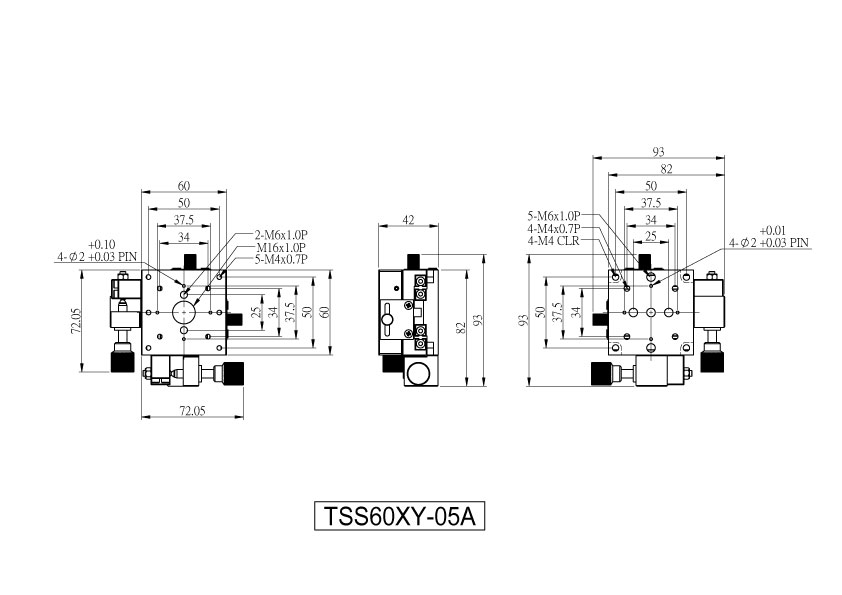

M-TSS60XY-05A

60mmx60mm / 13mm Travel / XY-axis / Side Driver / Adjustment Screw(100TPI)
In Stock
US$403.45
