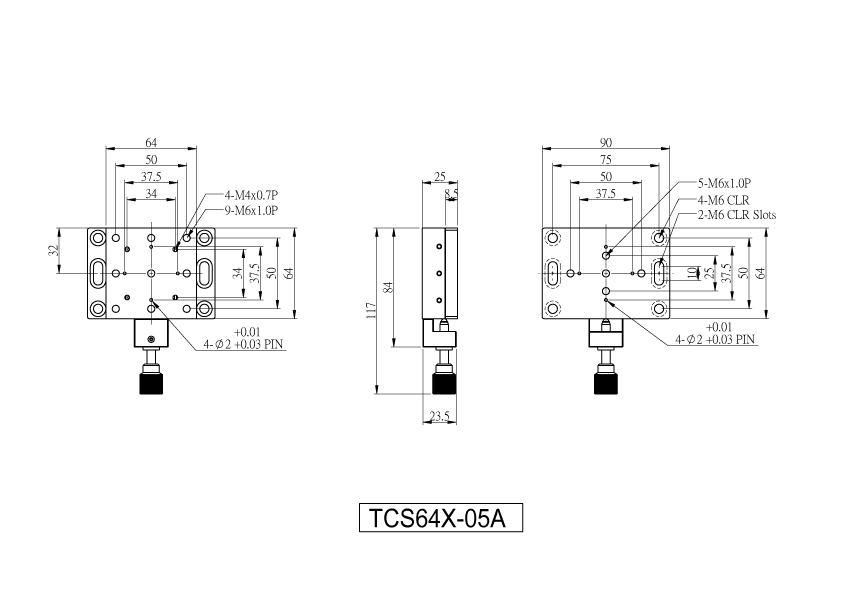

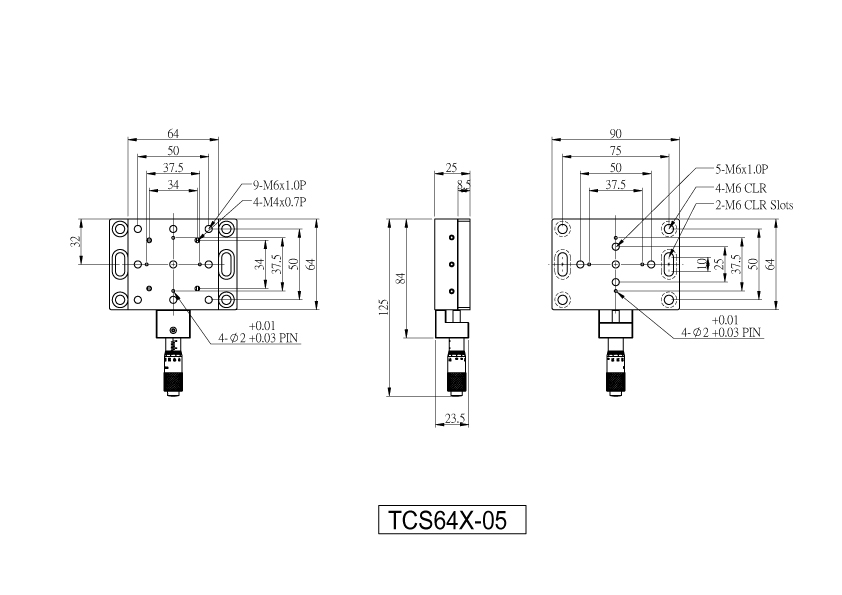

2D-Drawing



TCS64-05-series

• The TCS64 series platform employs a steel cross-roller bearing track design, characterized by high rigidity, high load capacity, low friction, and minimal operational noise. It is well-suited for applications requiring high-precision displacement. To cater to user convenience, we offer the option of two drive mechanisms: a 10um micrometer and a 100TPI precision screw.

• The installation method of the TCS64X-05 micrometer differs from that of a typical linear stage. When used in the vertical direction, it can prevent the issue of the slide stage dropping due to excessive surface load.

Specification
 Platform Size Driver Travel

Resolution

 Straightness Material
64 x 64mm Micrometer / 100TPI Screws Center Driver  ±6.5mm 10um ±7.5um  Aluminum 、Anodized Black





Part Number/Description Delivery Price Qty. Add to Cart

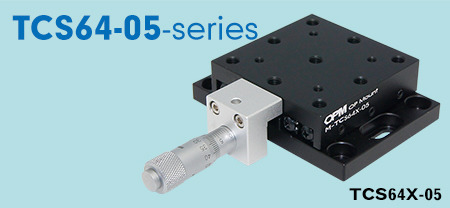

M-TCS64X-05

64mm x 64mm Dimensions / 13mm Travel / Center Drive Micrometer / X-axis
In Stock
US$237.93

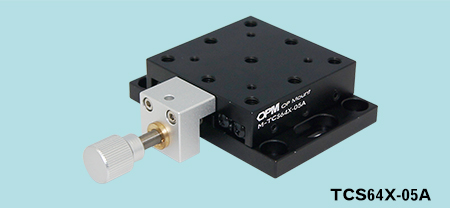

M-TCS64X-05A

64mm x 64mm Dimensions / 13mm Travel / Center Drive Adjustment Screw(100TPI) / X-axis
In Stock
US$227.59
