2D-Drawing



TCS32-03-series

• The TCS32 series platform employs a steel cross-roller bearing track design, characterized by high rigidity, high load capacity, low friction, and minimal operational noise. It is well-suited for applications requiring high-precision displacement. To cater to user convenience, we offer the option of two drive mechanisms: a 10um micrometer and a 100TPI precision screw.

• The integrated design enables the TCS32 series platform to maintain long-term stability and vertical alignment in the XY and XYZ directions.




Specification
 Platform Size Driver Travel

Resolution

 Straightness Material
32 x 32mm Micrometer / 100TPI Screws Center Driver  ±3.5mm 10um ±15um  Aluminum 、Anodized Black





Part Number/Description Delivery Price Qty. Add to Cart

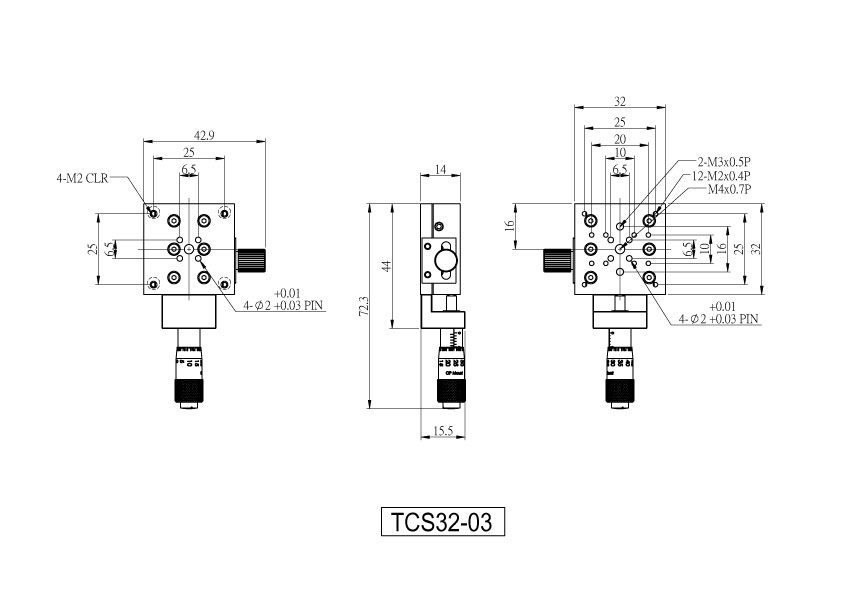

M-TCS32X-03

32mm x 32mm Dimensions / 7mm Travel / Center Drive Micrometer / X-axis
In Stock
US$234.48

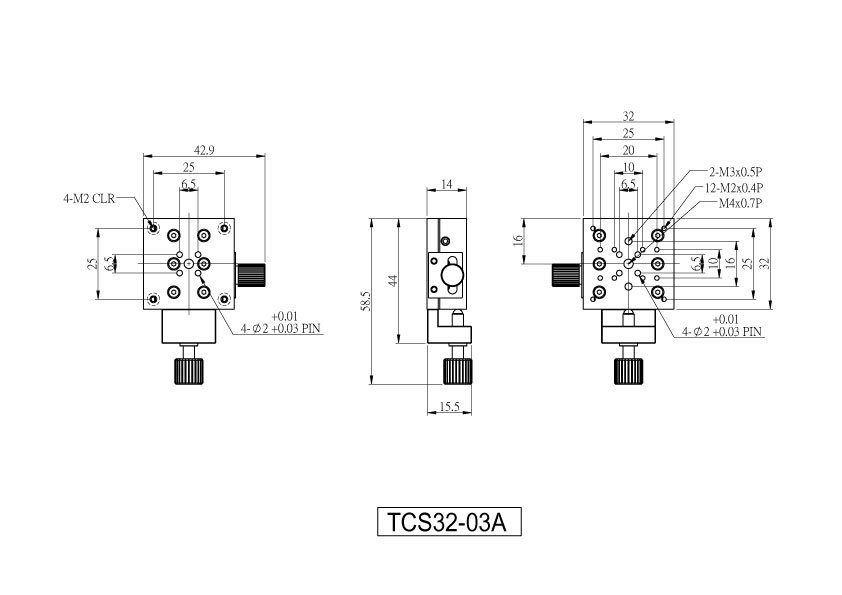

M-TCS32X-03A

32mm x 32mm Dimensions / 7mm Travel / Center Drive 100TPI Screws / X-axis
In Stock
US$217.24

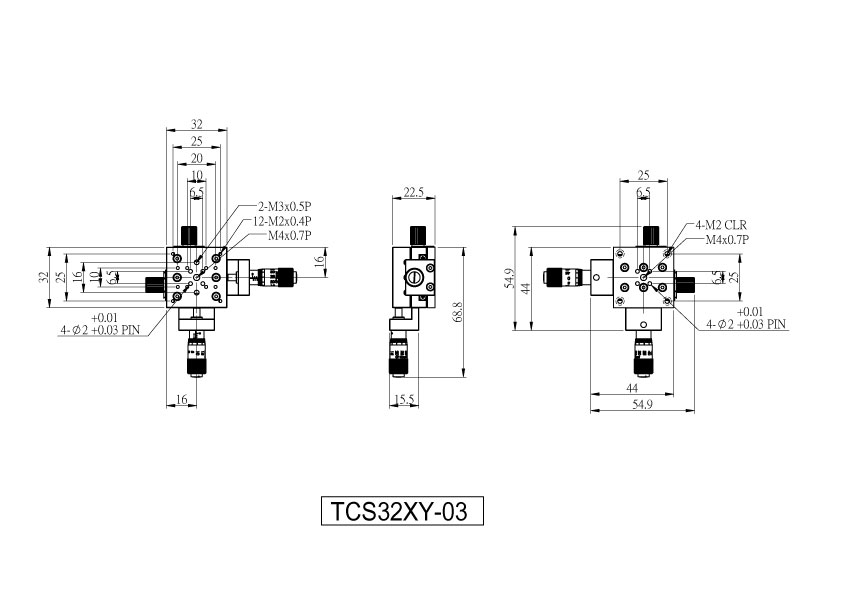

M-TCS32XY-03

32mm x 32mm Dimensions / 7mm Travel / Center Drive Micrometer / XY-axis
In Stock
US$482.76

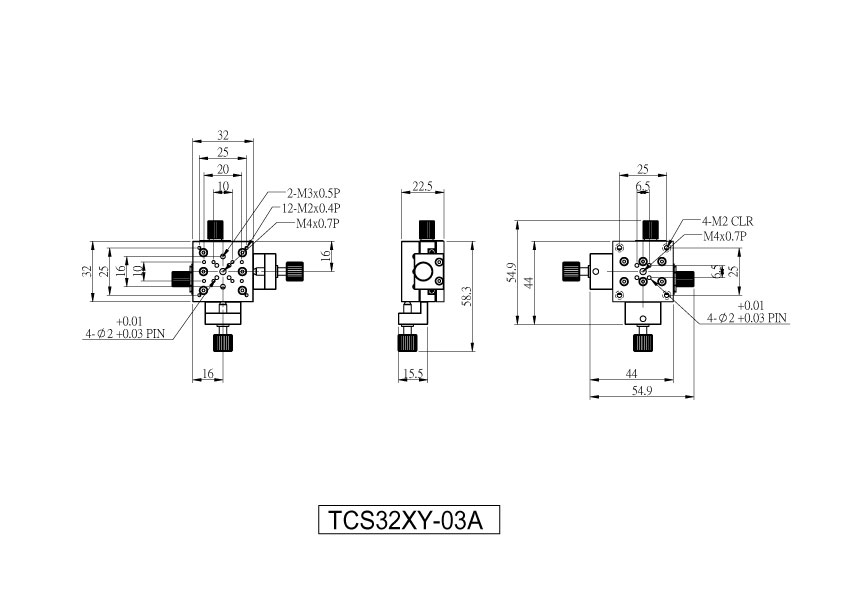

M-TCS32XY-03A

32mm x 32mm Dimensions / 7mm Travel / Center Drive 100TPI Screws / XY-axis
In Stock
US$448.28
M-TCS32XYZ-03

32mm x 32mm Dimensions / 7mm Travel / Center Drive Micrometer / XYZ-axis
In Stock
US$717.24

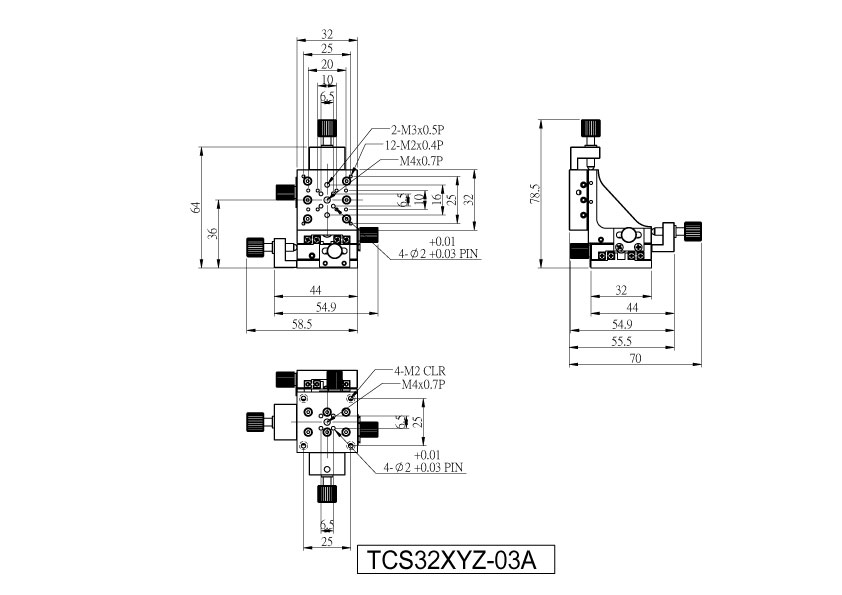

M-TCS32XYZ-03A

32mm x 32mm Dimensions / 7mm Travel / Center Drive 100TPI Screws / XYZ-axis
In Stock
US$665.52
