2D-Drawing



TS65H-1-series

• Side drive reduces space utilization and achieves a compact purpose.

• The TS65H series stage adopts a design with roller bearing linear steel rail tracks, which provides excellent stability and maintains consistent linear displacement. To ensure user convenience, we offer two driving options: micrometer and 100TPI precision screws for selection.

• This platform features a central through-hole design of M16X1P, which provides an ideal option when bottom illumination or penetration is required.


Note:The product will be discontinued when sold out.
Specification
Platform Size Driver Travel Resolution Straightness Material
65 X 65mm
Micrometer / 100TPI Screws
Center Driver
  ±12.5mm 10um ±15um  Aluminum 、Anodized Black



Part Number/Description Delivery Price Qty. Add to Cart
M-TS65HX-1

65mm x 65mm Dimensions / 25mm Travel / Side Drive Micrometer / X-axis / Central Aperture
In Stock
US$172.41

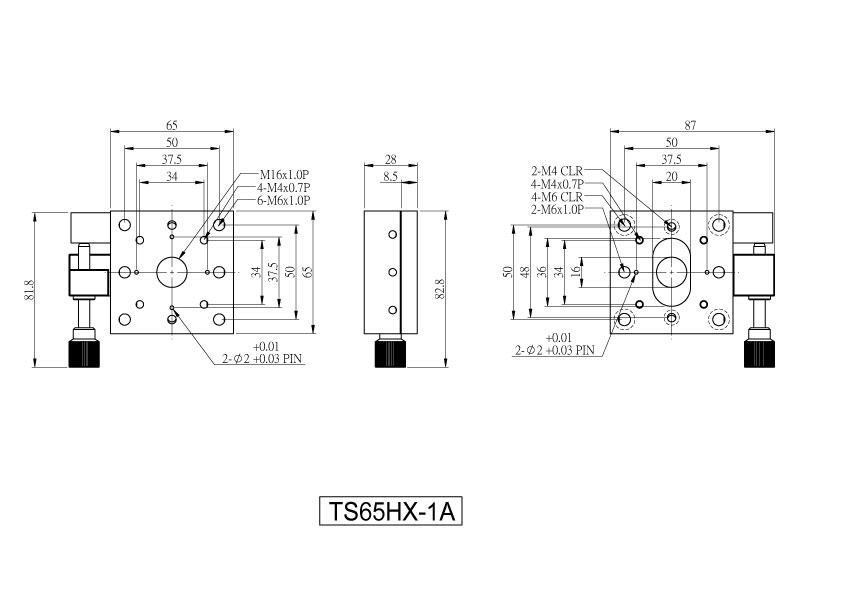

M-TS65HX-1A

65mm x 65mm Dimensions / 25mm Travel / Side Drive 100TPI Screws / X-axis / Central Aperture
In Stock
US$151.72

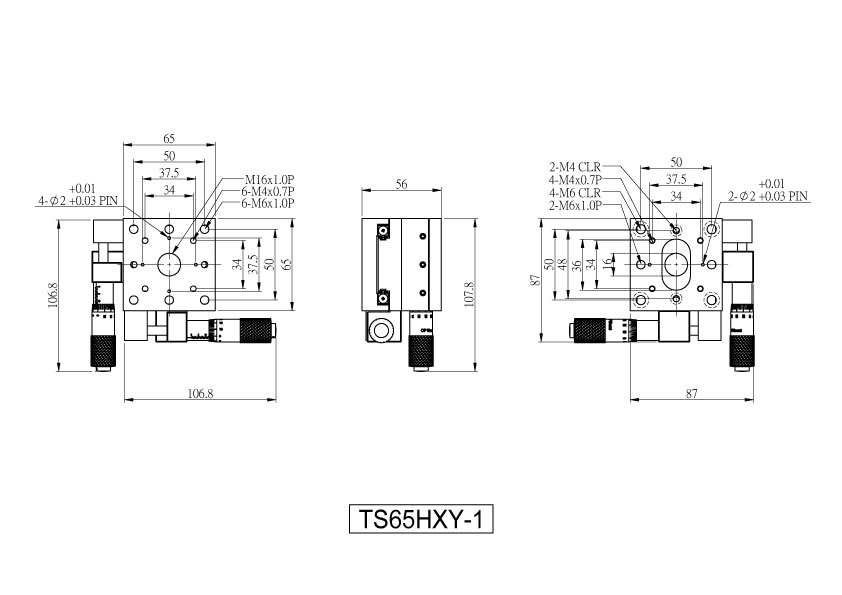

M-TS65HXY-1

65mm x 65mm Dimensions / 25mm Travel / Side Drive Micrometer / XY-axis / Central Aperture
In Stock
US$348.46

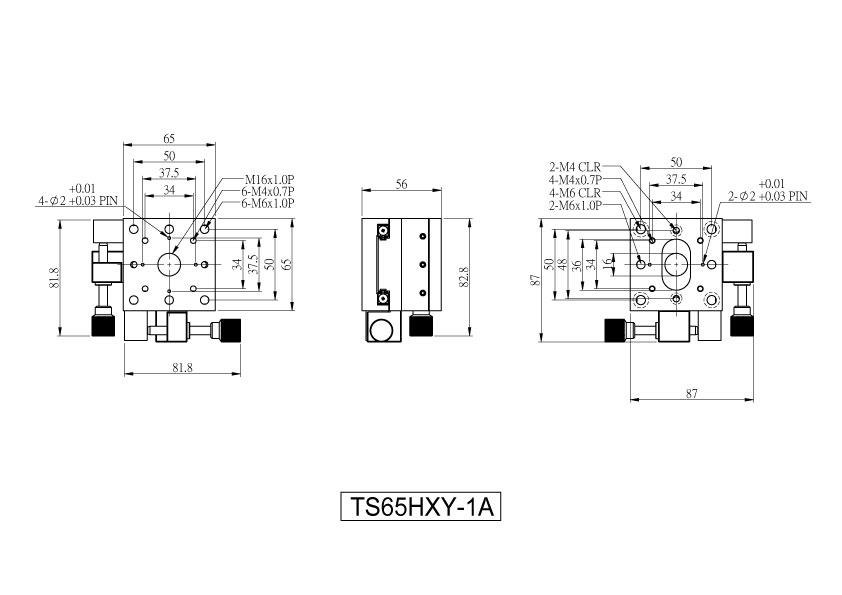

M-TS65HXY-1A

65mm x 65mm Dimensions / 25mm Travel / Side Drive 100TPI Screws / XY-axis / Central Aperture
In Stock
US$303.45
