2D-Drawing



TS65-1-series

• Side drive reduces space utilization and achieves a compact purpose.

• The TS65 series stage adopts a design with roller bearing linear steel rail tracks, which provides excellent stability and maintains consistent linear displacement. To ensure user convenience, we offer two driving options: micrometer and 100TPI precision screws for selection.

• The product surface is treated with a hard anodized finish, and each platform is equipped with precision positioning locks, allowing orthogonal errors between two assembled platforms to be within 2mrad.


Note:The product will be discontinued when sold out.
Specification
Platform Size Driver Travel Resolution Straightness Material
65 X 65mm
Micrometer / 100TPI Screws
Side Driver
  ±12.5mm 10um ±15um  Aluminum 、Anodized Black



Part Number/Description Delivery Price Qty. Add to Cart

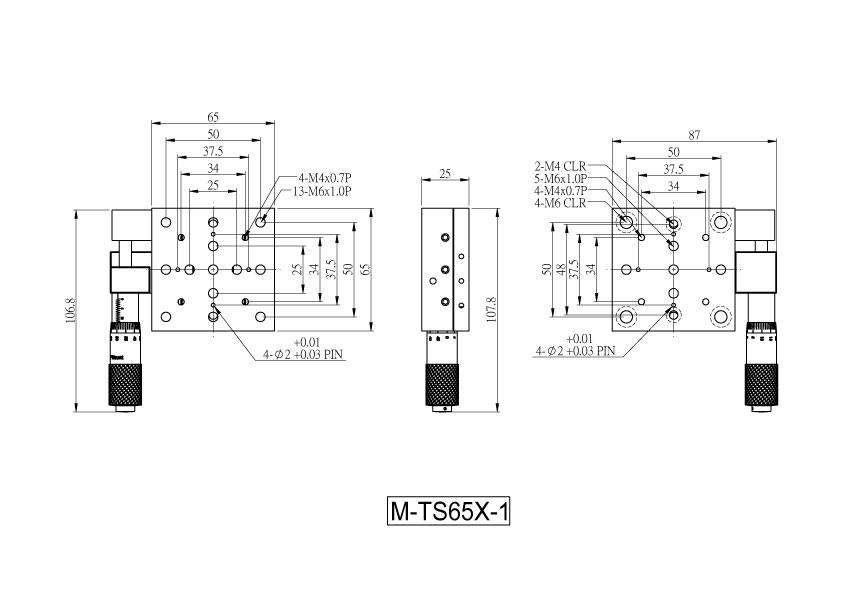

M-TS65X-1

65mm x 65mm Dimensions / 25mm Travel / Center Drive Micrometer / X-axis
In Stock
US$165.52

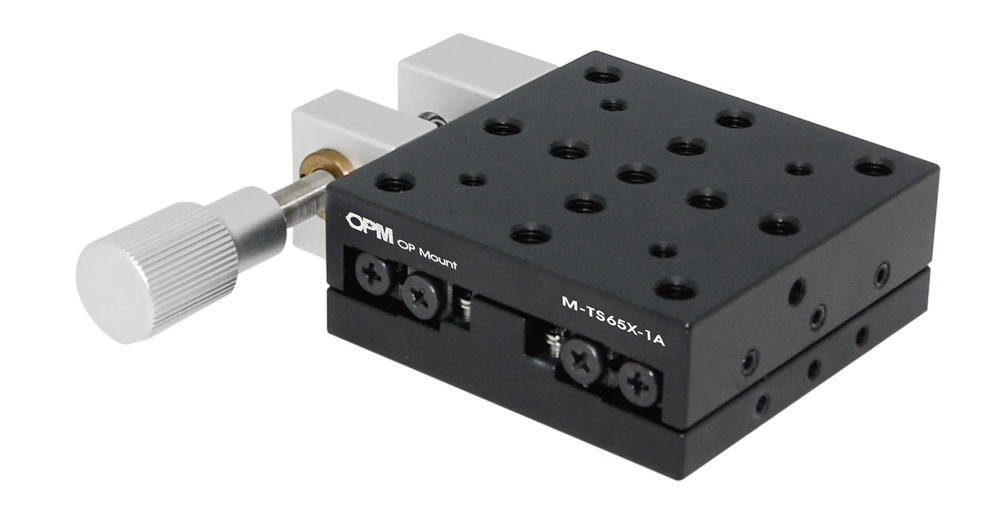

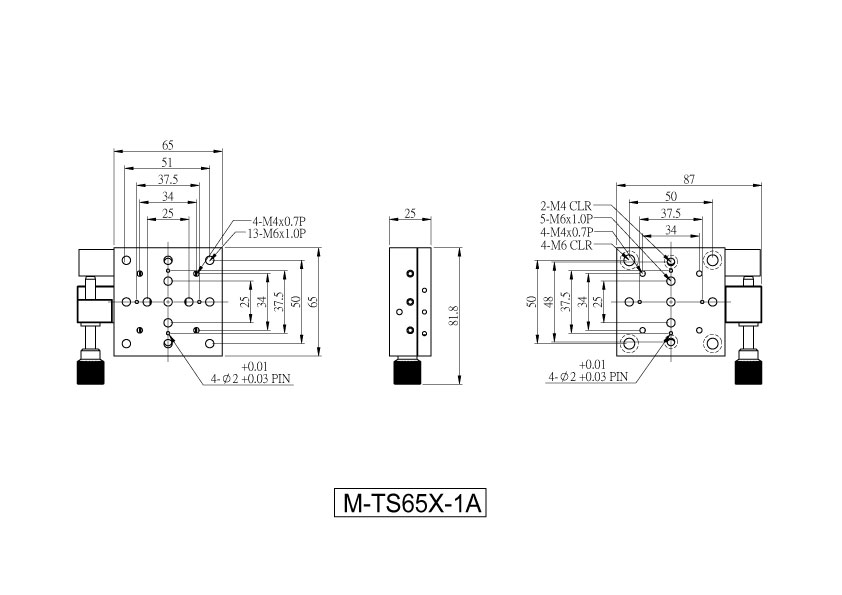

M-TS65X-1A

65mm x 65mm Dimensions / 25mm Travel / Center Drive Adjustment Screw(100TPI) / X-axis
In Stock
US$148.28

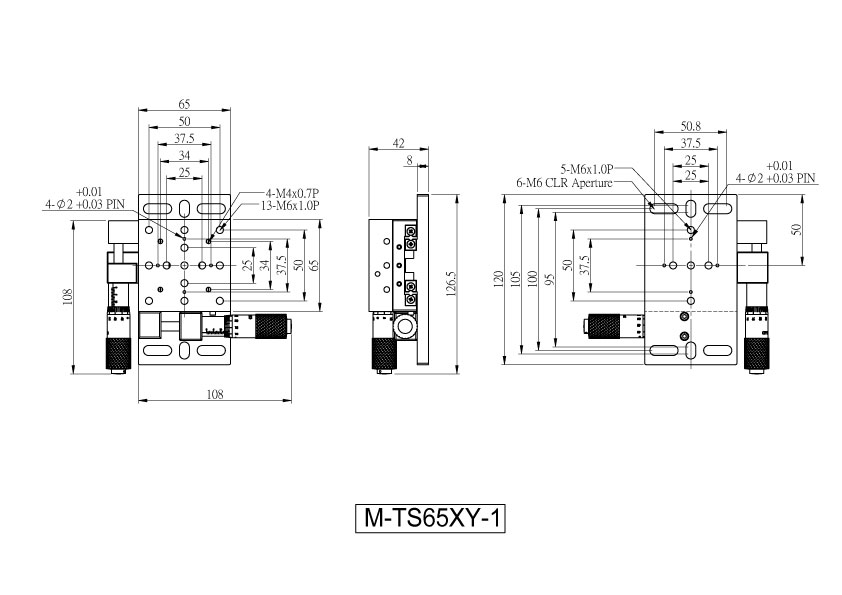

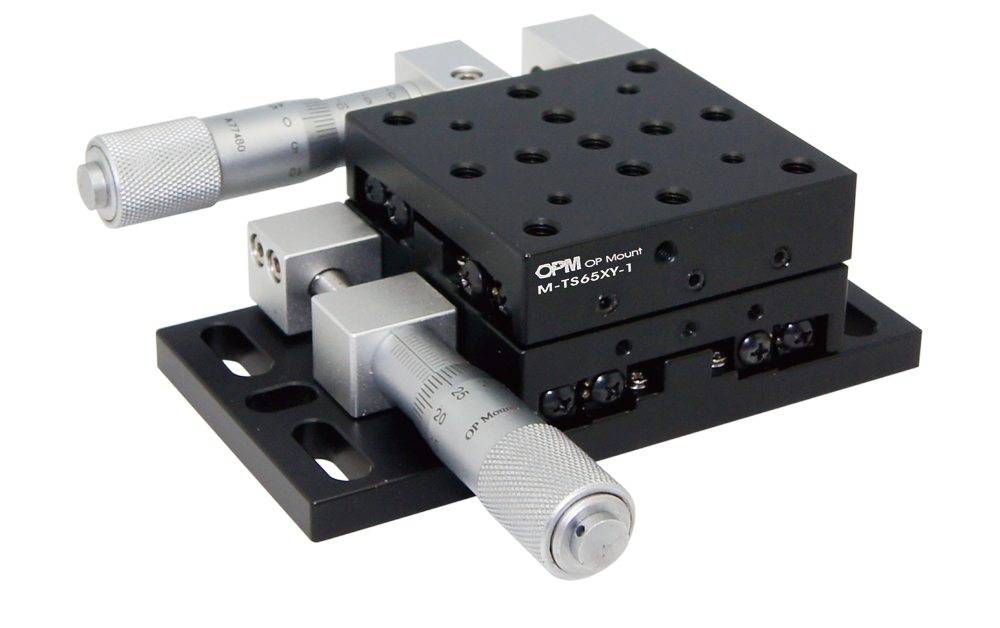

M-TS65XY-1

65mm x 65mm Dimensions / 25mm Travel / Center Drive Micrometer / XY-axis
In Stock
US$341.38

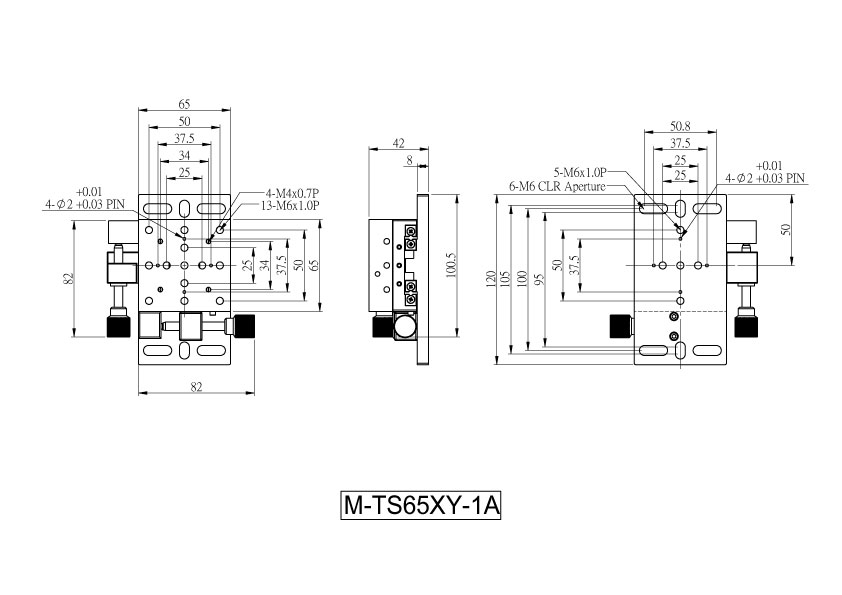

M-TS65XY-1A

65mm x 65mm Dimensions / 25mm Travel / Center Drive Adjustment Screw(100TPI) / XY-axis
In Stock
US$296.55
