TS60-05-series

• Side drive reduces space utilization and achieves a compact purpose.

• The TS60 series stage adopts a design with roller bearing linear steel rail tracks, which provides excellent stability and maintains consistent linear displacement. To ensure user convenience, we offer two driving options: micrometer and 100TPI precision screws for selection.

• The product surface is treated with a hard anodized finish, and each platform is equipped with precision positioning locks, allowing orthogonal errors between two assembled platforms to be within 2mrad.



Note:The product will be discontinued when sold out.

Note:Recommend replacing with the TSS-series or TSSJ-series Crossed Roller Guide Stage featuring steel crossed roller guides for higher precision and reduced friction.

Specification
 Platform Size Driver Travel Resolution Straightness Material
60 x 60mm Micrometer / 100TPI Screws Side Driver  ±6.5mm 10um ±15um  Aluminum 、Anodized Black


Part Number/Description Delivery Price Qty. Add to Cart
M-TS60X-05

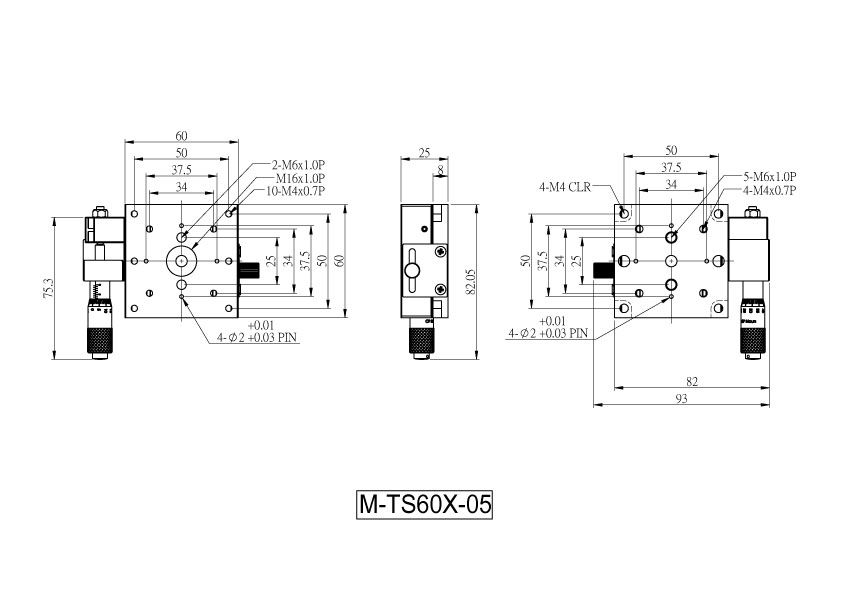

60mmx60mm / 13mm Travel / X-axis / Side Driver / 10um Micrometer
In Stock
US$143.02
M-TS60X-05A

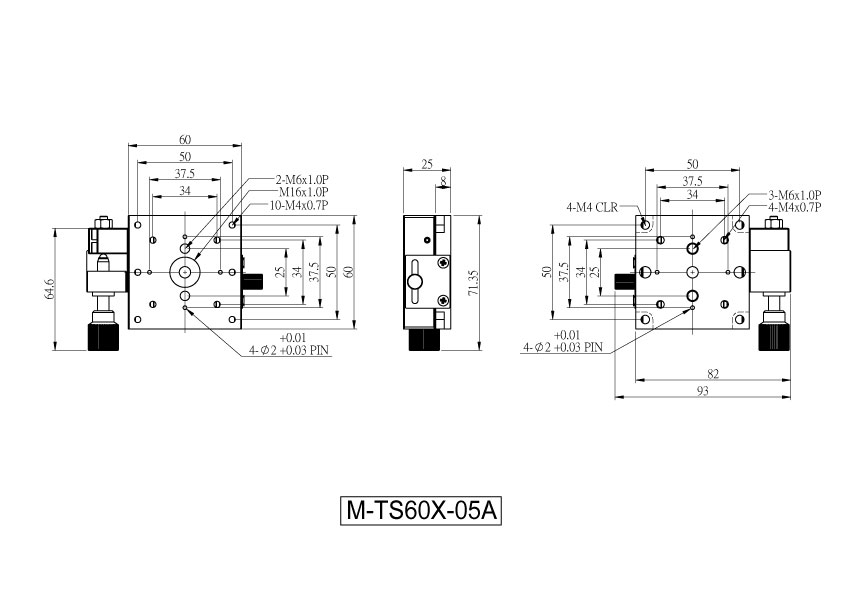

60mmx60mm / 13mm Travel / X-axis / Side Driver / Adjustment Screw(100TPI)
In Stock
US$125.46
M-TS60XY-05

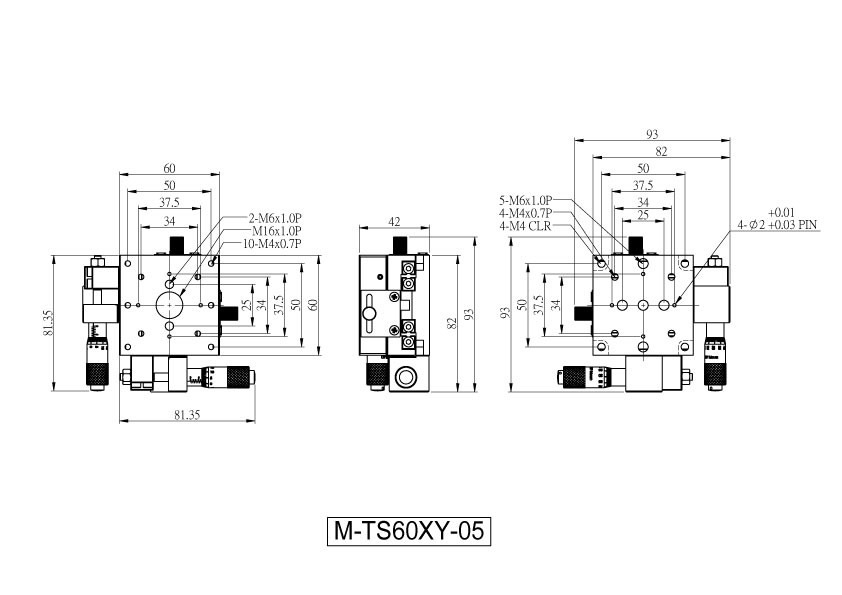

60mmx60mm / 13mm Travel / XY-axis / Side Driver / 10um Micrometer
In Stock
US$296.90
M-TS60XY-05A

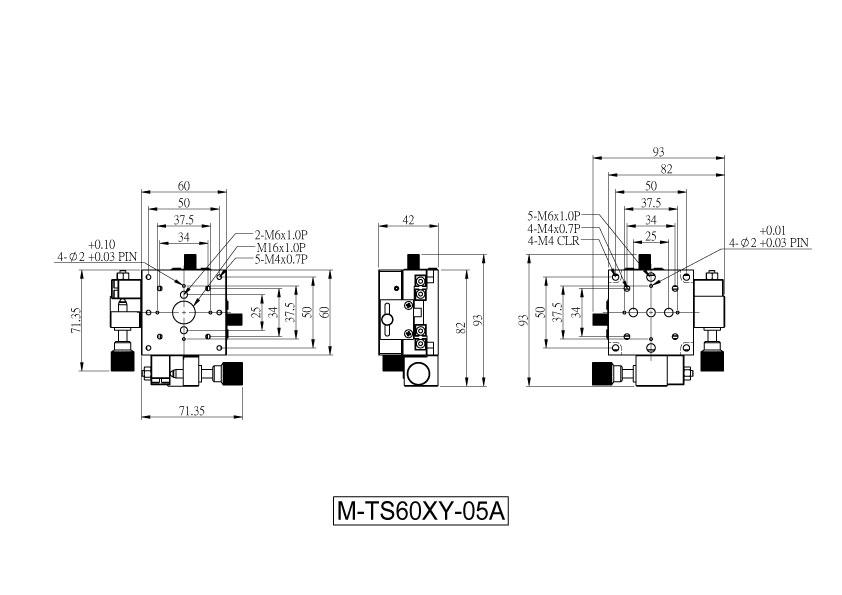

60mmx60mm / 13mm Travel / XY-axis / Side Driver / Adjustment Screw(100TPI)
In Stock
US$265.83
