TC64-05-series

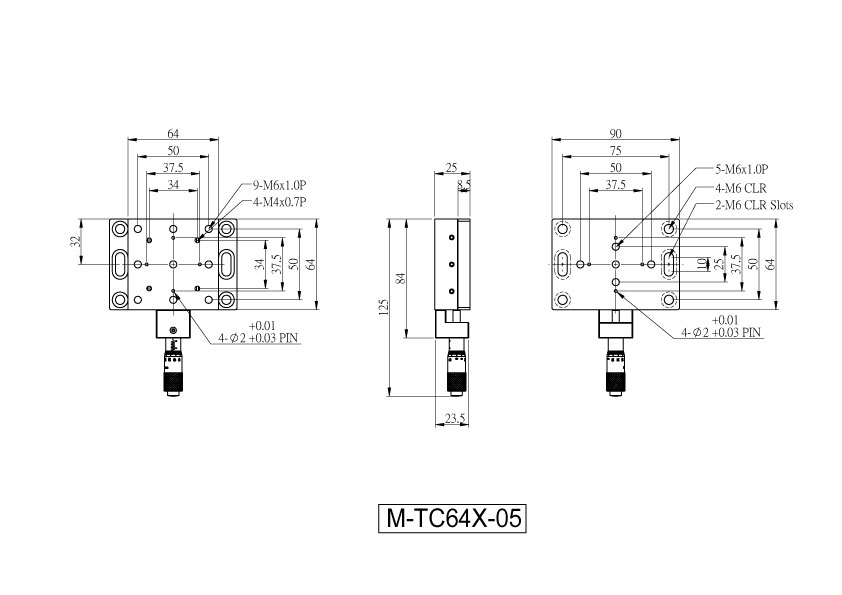

• The TC64 series stage utilizes a design with roller bearing steel track rails design, offering excellent stability and maintaining consistent linear motion. For ease of use, we provide two drive options: micrometer heads with 100TPI precision screws and vernier scales.

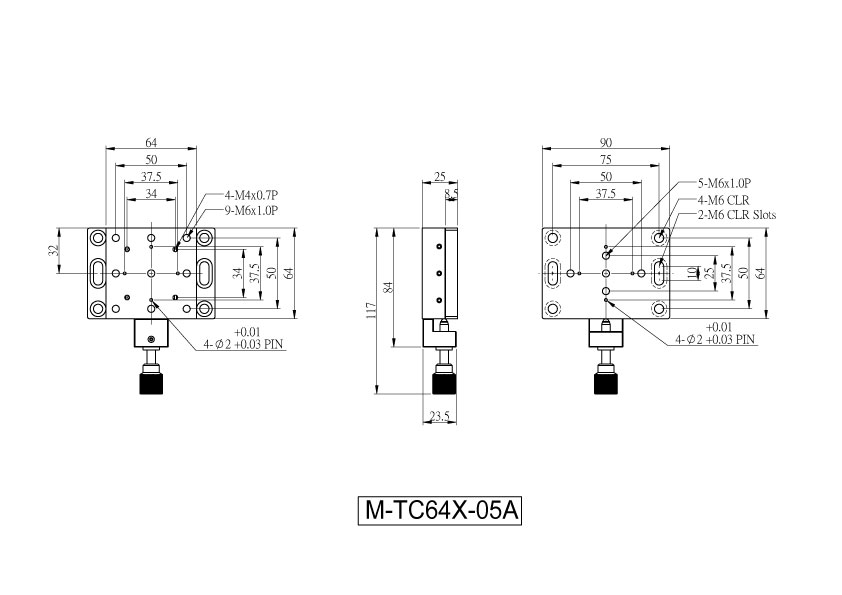

• The installation method of the TC64X-05 vernier scale side micrometer head differs from the typical linear stage configuration. When used vertically, it prevents the issue of the stage surface dropping due to excessive weight load.



Note:The product will be discontinued when sold out.

Note:Recommend replacing with the TCS-series Crossed Roller Guide Stage featuring steel crossed roller guides for higher precision and reduced friction.

Specification

Platform Size	Driver	Travel	Resolution	Straightness	Material
64 X 64mm	Micrometer / 100TPI Screws	±6.5mm	10um	±15um	Aluminum 、Anodized Black
