2D-Drawing



TCM60-05-series

• Two different configurations for convenient layout usage, suitable for both left-hand and right-hand setups.

• The TCM60 series stage utilizes a steel Cross Roller Bearing track design, providing high rigidity, high load capacity, low friction, and low operating noise. It is well-suited for high-precision displacement applications. To ensure user convenience, we offer two driving options: micrometer card and 100TPI precision screws.

• The thin design of the XY axis with a thickness of 28mm allows for easy installation in any location.

• It features an externally installed prominent structure, facilitating seamless integration with the threaded hole below and creating a unified processing method, resulting in excellent perpendicularity in the XY direction.

• When combined with TCM60Z-05, TCM60XY can be easily assembled into a three-axis translation stage.
Specification
 Platform Size Driver Travel

Right / Left

 Straightness Capacity
60 x 60mm Micrometer / 100TPI Screws Center Driver  ±6.5mm Left-hand/Right-hand ±15um  Aluminum 、Anodized Black





Part Number/Description Delivery Price Qty. Add to Cart

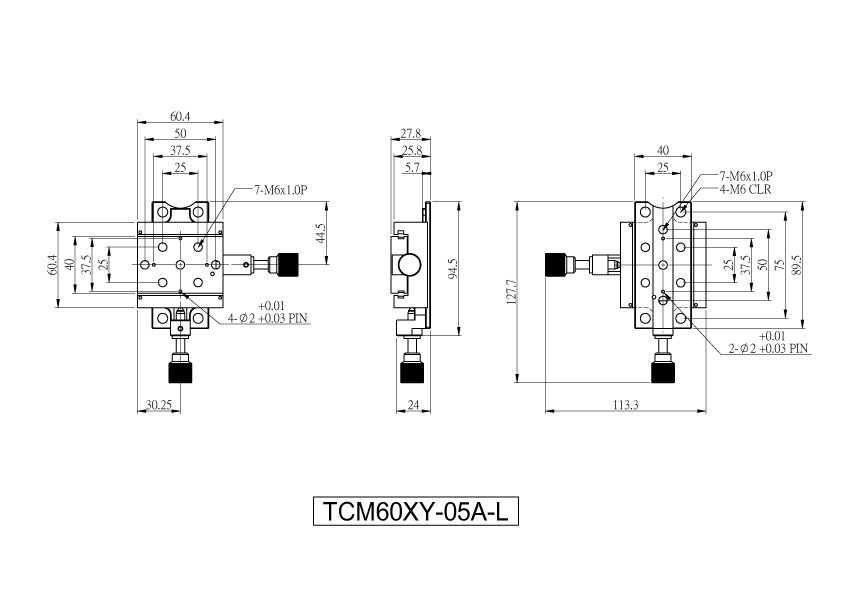

M-TCM60XY-05A-L

60mmx60mm / 13mm Travel / XY-axis / Center Drive / Adjustment Screw(100TPI) / Left-Hand

In stock
US$286.21

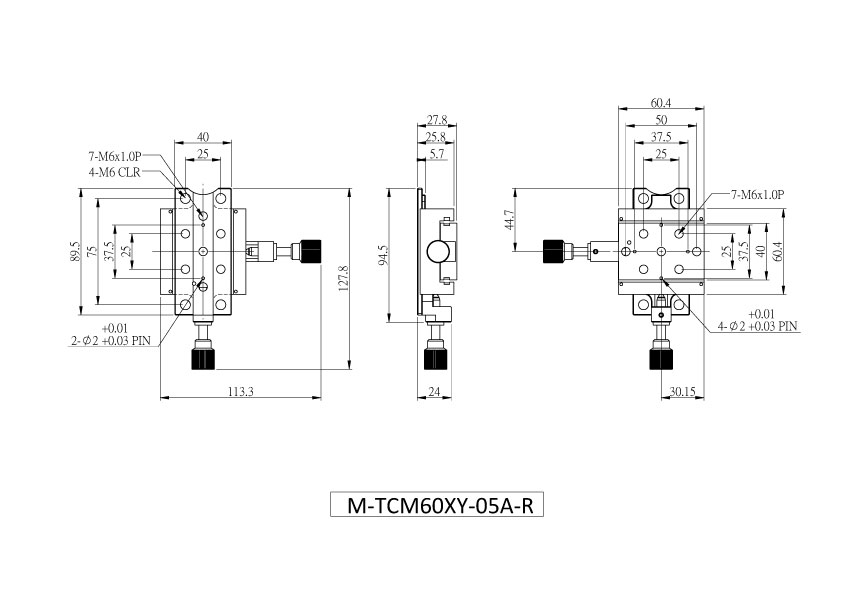

M-TCM60XY-05A-R

60mmx60mm / 13mm Travel / XY-axis / Center Drive / Adjustment Screw(100TPI) / Right-Hand

In stock
US$286.21

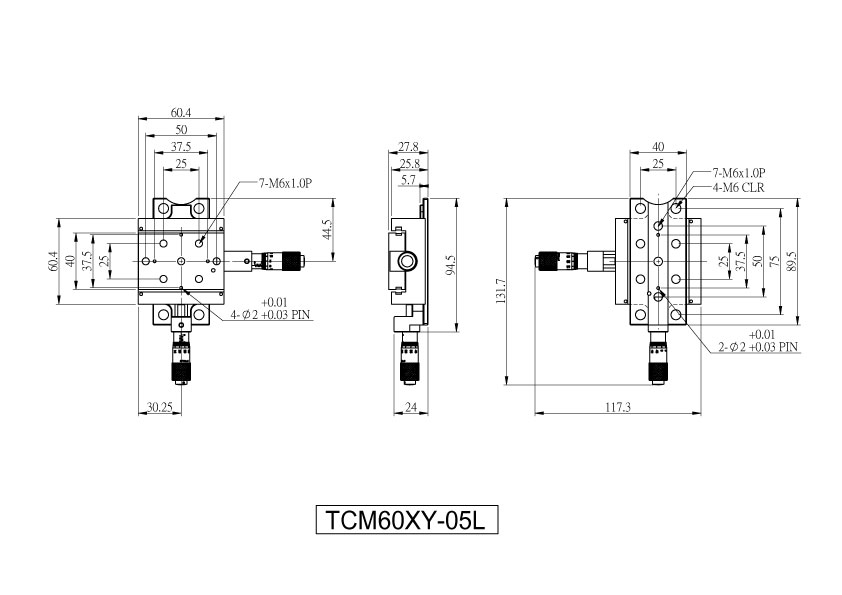

M-TCM60XY-05-L

60mmx60mm / 13mm Travel / XY-axis / Center Drive / Micrometer / Left-Hand
In stock
US$310.34
M-TCM60XY-05-R

60mmx60mm / 13mm Travel / XY-axis / Center Drive / Micrometer / Right-Hand
In stock
US$310.34

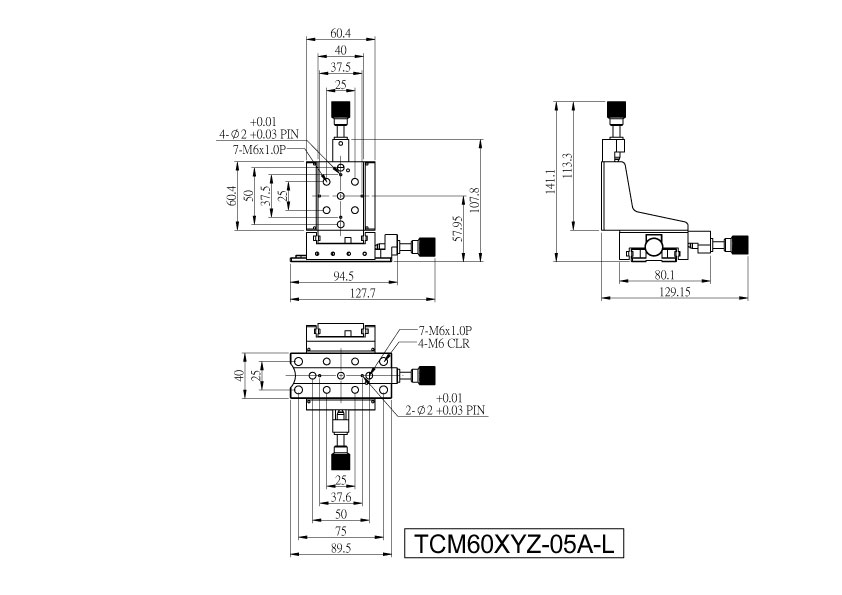

M-TCM60XYZ-05A-L

60mmx60mm / 13mm Travel / XYZ-axis / Center Drive / Adjustment Screw(100TPI) / Left-Hand

In stock
US$468.97

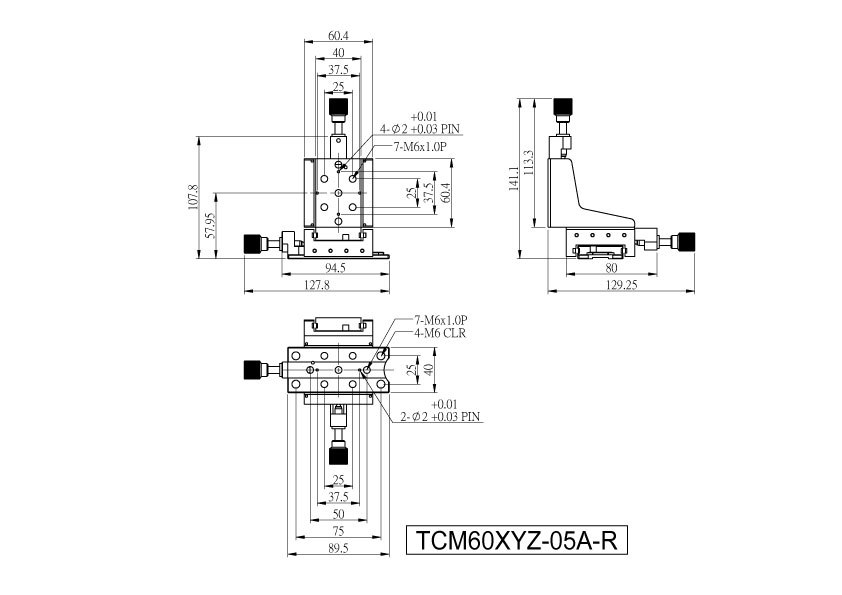

M-TCM60XYZ-05A-R

60mmx60mm / 13mm Travel / XYZ-axis / Center Drive / Adjustment Screw(100TPI) / Right-Hand
In stock
US$468.97

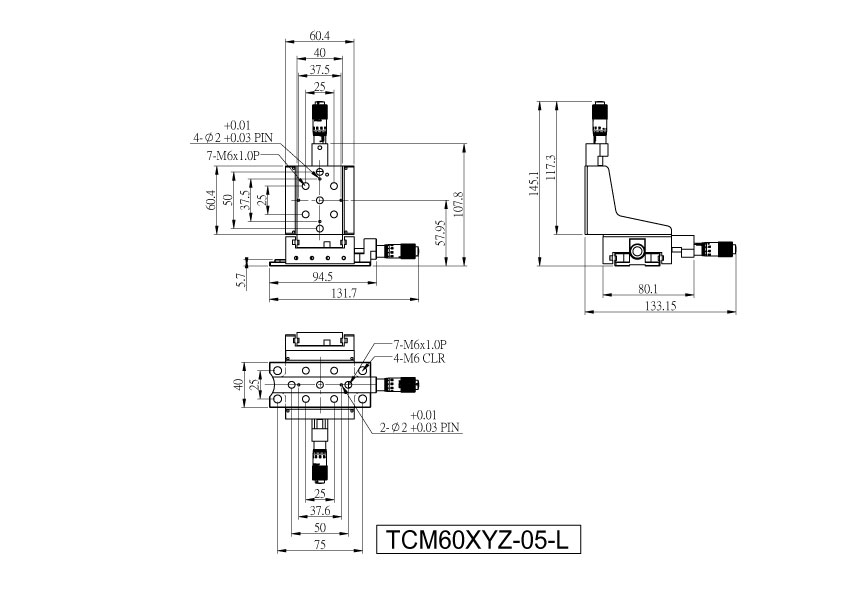

M-TCM60XYZ-05-L

60mmx60mm / 13mm Travel / XYZ-axis / Center Drive / Micrometer / Left-Hand
In stock
US$517.24
M-TCM60XYZ-05-R

60mmx60mm / 13mm Travel / XYZ-axis / Center Drive / Micrometer / Right-Hand
In stock
US$517.24

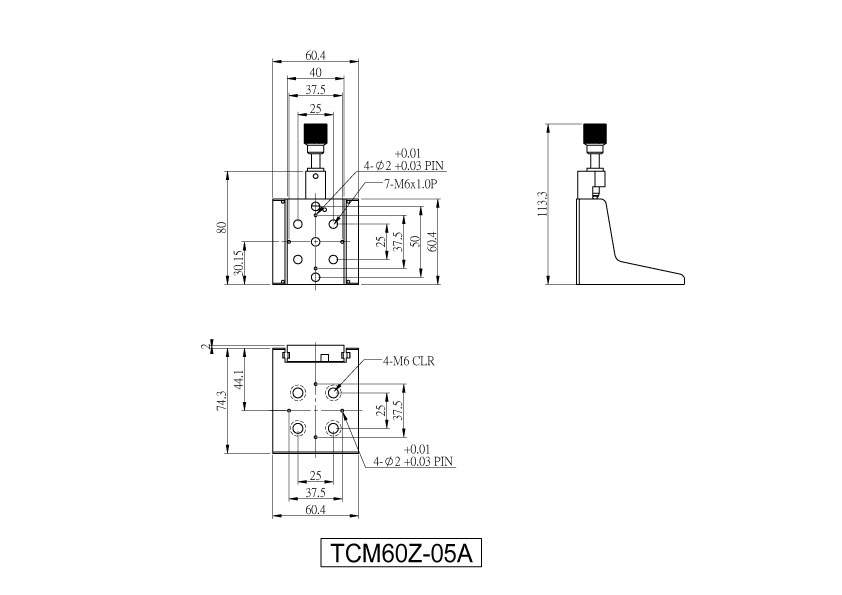

M-TCM60Z-05A

60mmx60mm / 13mm Travel / Z-axis vertical / Center Driver / Adjustment Screw(100TPI)
In stock
US$182.76

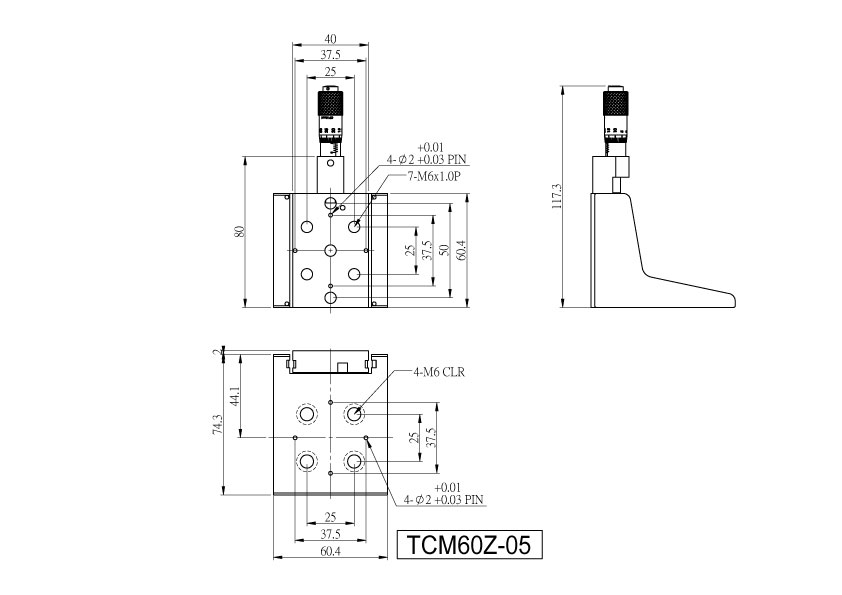

M-TCM60Z-05

60mmx60mm / 13mm Travel / Z-axis vertical / Center Driver / Micrometer
In stock
US$206.90
