  6. TC38-05-Series


2D-Drawing



TS38-05-series

• The TC38 series stage utilizes a design with roller bearing linear steel track rails, which provides excellent stability and maintains constant linear displacement. To ensure convenience of use, we offer two options for drive: micrometer card and 100 TPI precision screw.

• The TC38XYZ series consists of three TC38X stages combined with a base plate and a right angle bracket AB-34, allowing for assembly and utilization in multi-axis systems.





Specification
 Platform Size Driver Travel Resolution Straightness Material
38 x 38mm Micrometer / 100TPI Screws Center Driver  ±6.5mm 10um ±15um  Aluminum 、Anodized Black





Part Number/Description Delivery Price Qty. Add to Cart
M-TC38X-05

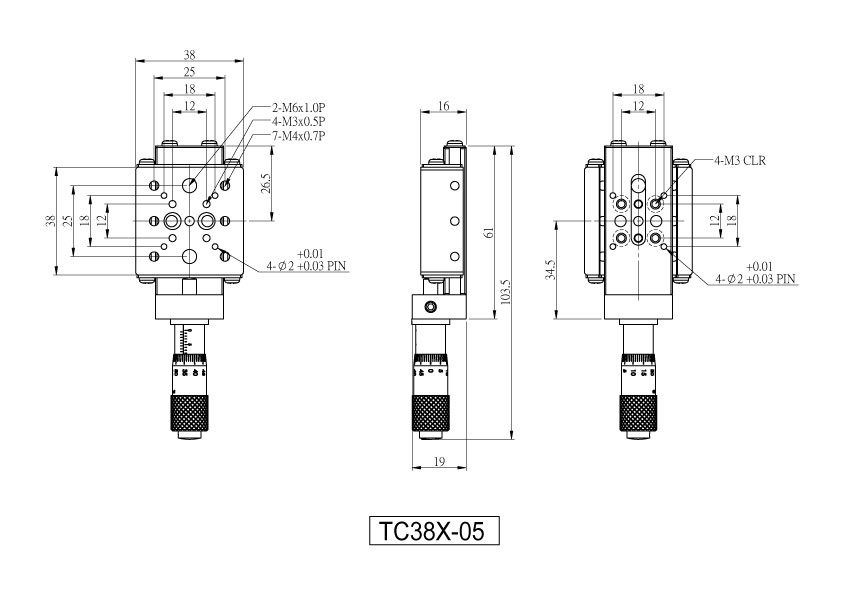

38mm x 38mm / 13mm Travel / Center Driver / Micrometer / x-axis
In stock
US$137.93
M-TC38X-05A

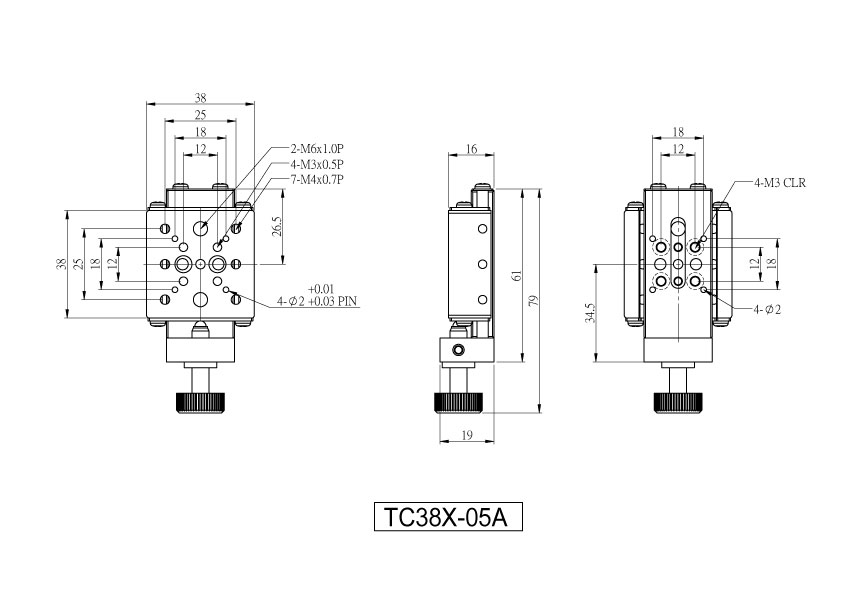

38mm x 38mm / 13mm Travel / Center Driver / Adjustment Screw(100TPI) / x-axis
In stock
US$118.97
M-TC38XY-05

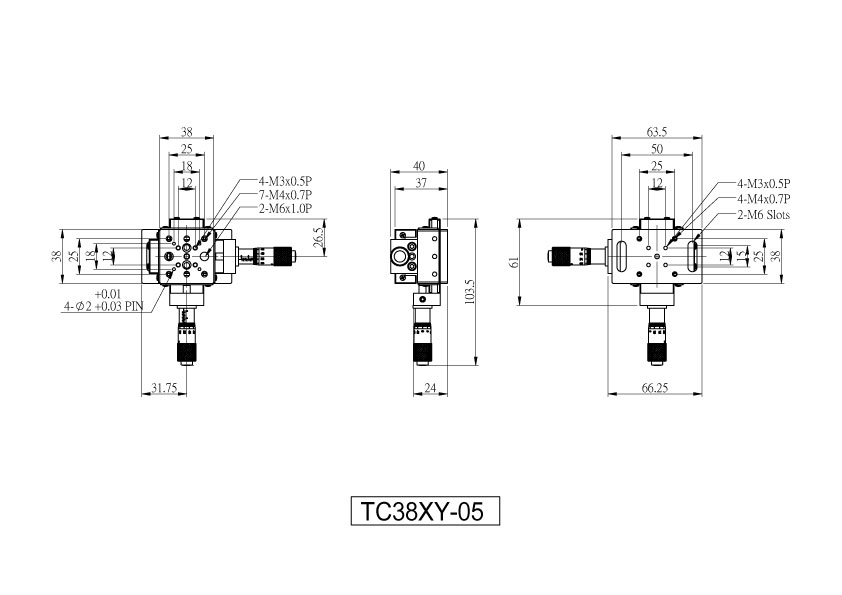

38mm x 38mm / 13mm Travel / Center Driver / Micrometer / XY-axis
In stock
US$272.41
M-TC38XY-05A

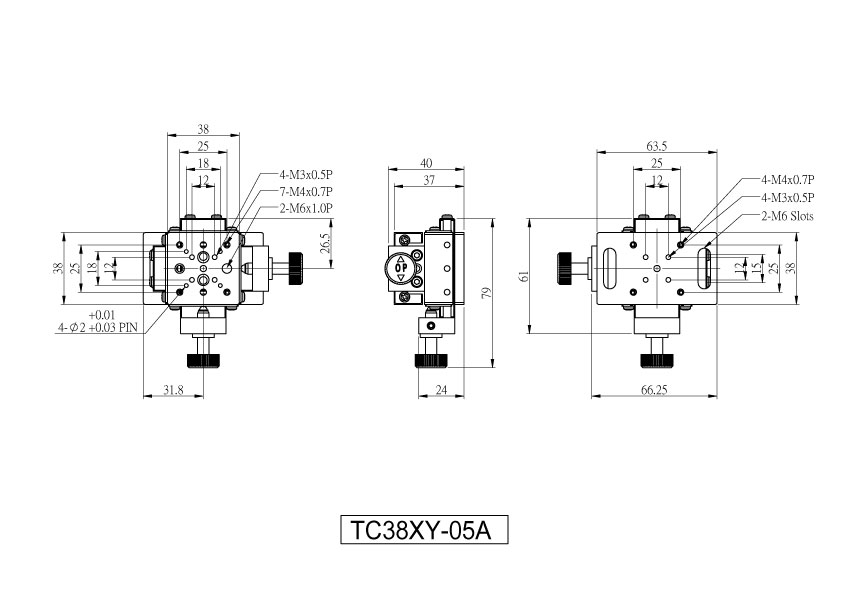

38mm x 38mm / 13mm Travel / Center Driver / Adjustment Screw(100TPI) / XY-axis
In stock
US$253.45
M-TC38XYZ-05

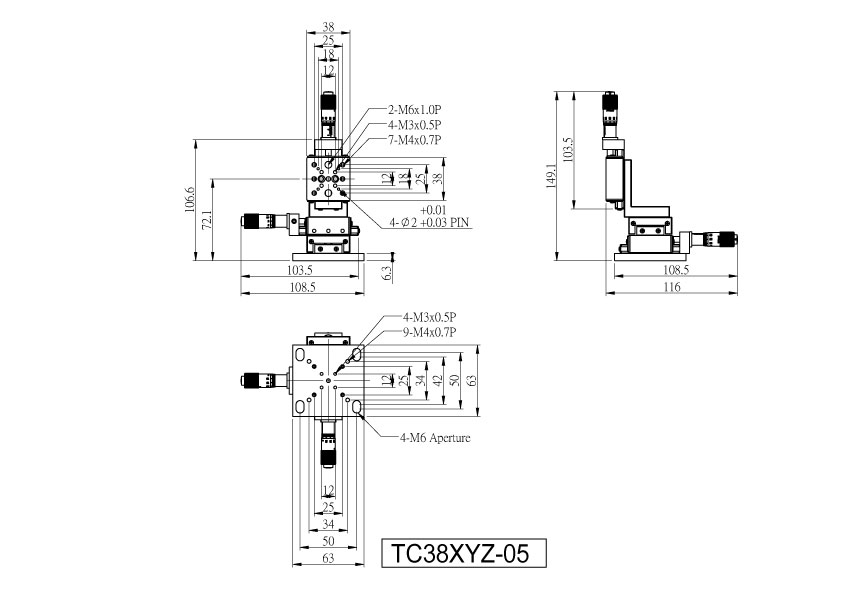

38mm x 38mm / 13mm Travel / Center Driver / Micrometer / XYZ-axis
In stock
US$451.72
M-TC38XYZ-05A

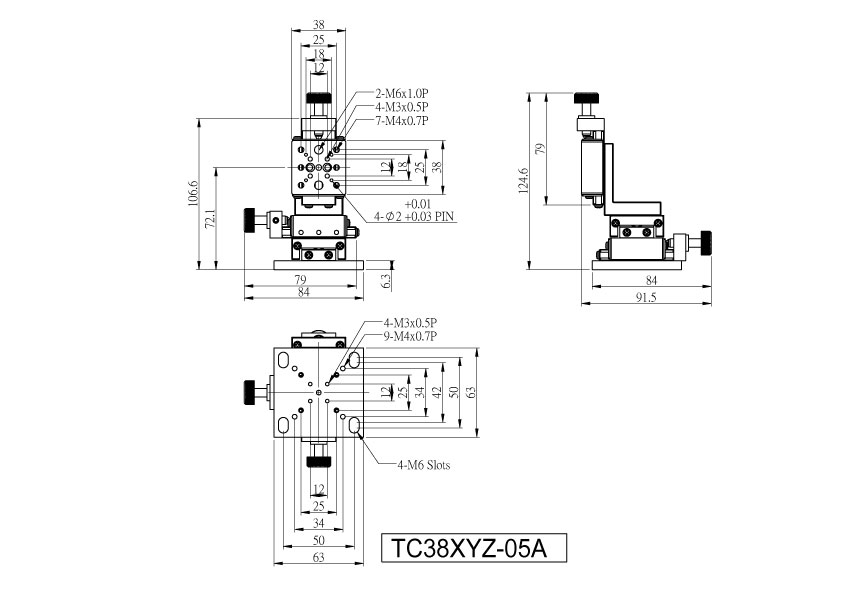

38mm x 38mm / 13mm Travel / Center Driver / Adjustment Screw(100TPI) / XYZ-axis
In stock
US$394.83
