2D-Drawing



TS34-05-series

• Side drive reduces space utilization and achieves a compact purpose.

• The TS34 series stage utilizes a design with roller bearing steel track rails, which provides excellent stability and maintains constant linear displacement. To ensure convenience of use, we offer two options for side drive: micrometer card and 100 TPI precision screw.

• The platform surface is equipped with M4 and M6 holes for integration with other components.



Specification
 Platform Size Driver Travel Resolution Straightness Material
34 x 34mm Micrometer / 100TPI Screws Side Driver  ±6.5mm 10um ±15um  Aluminum 、Anodized Black





Part Number/Description Delivery Price Qty. Add to Cart

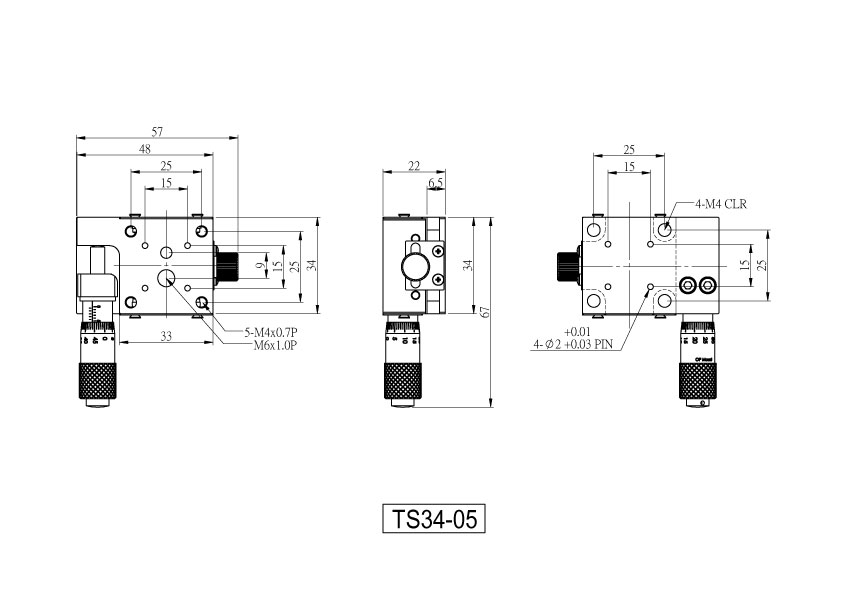

M-TS34X-05

34mmx34mm / 13mm Travel / Side Drive / Micrometer / x-axis
In stock
US$144.83

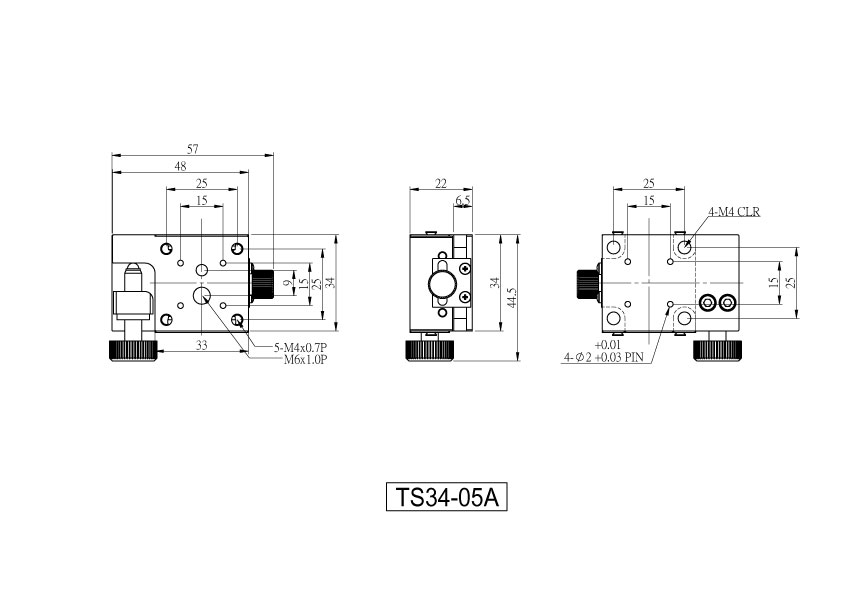

M-TS34X-05A

34mmx34mm / 13mm Travel / Side Drive / 100TPI Screws / x-axis
In stock
US$134.48

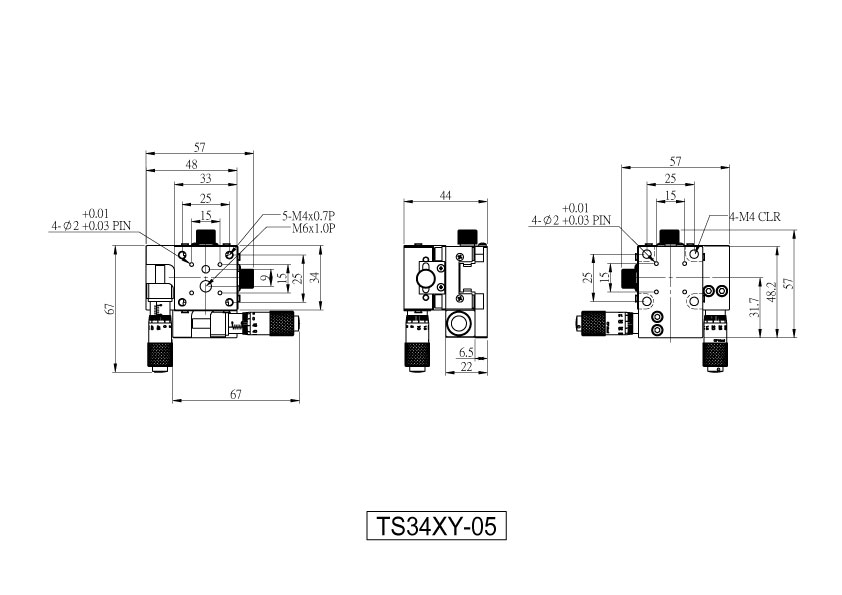

M-TS34XY-05

34mmx34mm / 13mm Travel / Side Drive / Micrometer / xy-axis
In stock
US$272.41

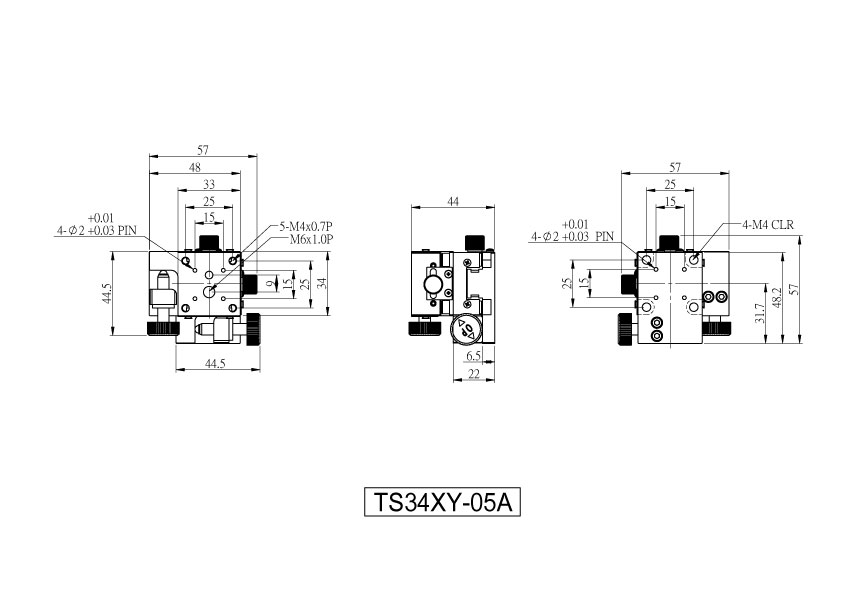

M-TS34XY-05A

34mmx34mm / 13mm Travel / Side Drive / 100TPI Screws / xy-axis
In stock
US$248.28
