Specification
 • Platform size : 90mm x 90mm
 • Driver : Micrometer Center Driver
 • Travel : 25mm
 • Resolution : 10um
 • Material : Aluminum 、Anodized Black
 • Straightness : 25um
 • Capacity : 147N(Horizontal Capacity) 49N(Vertical Capacity)

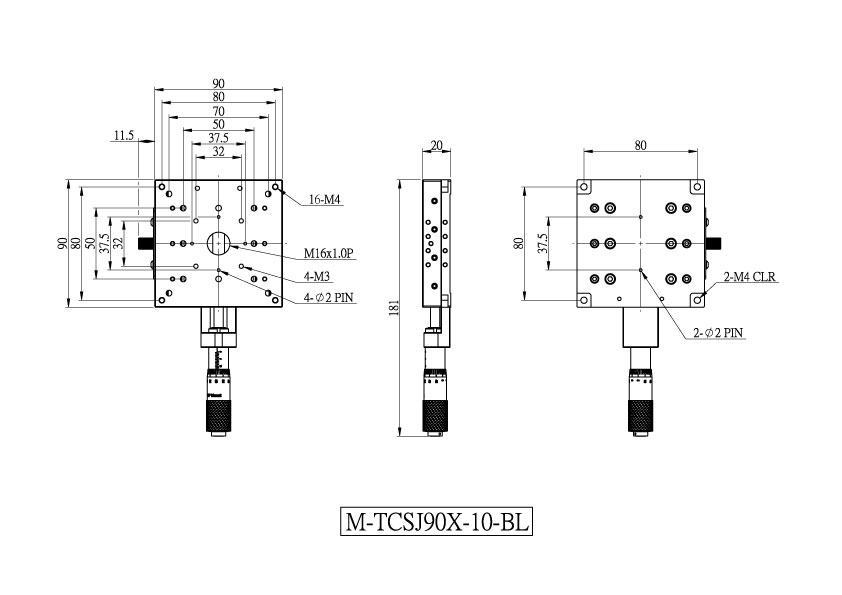

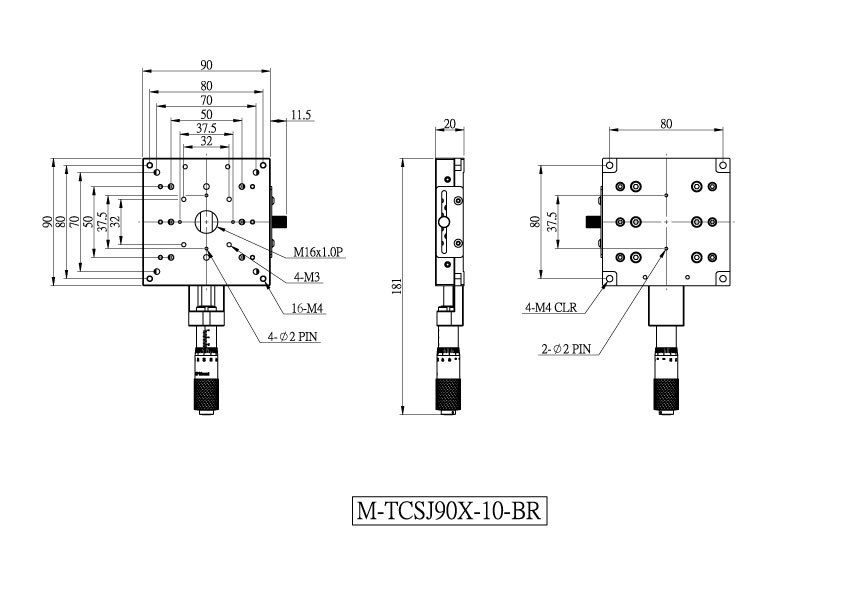

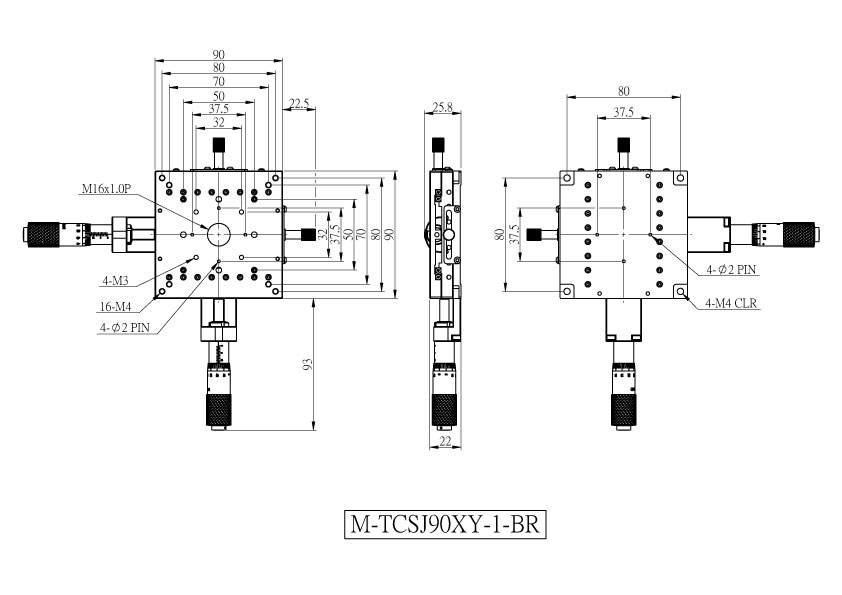

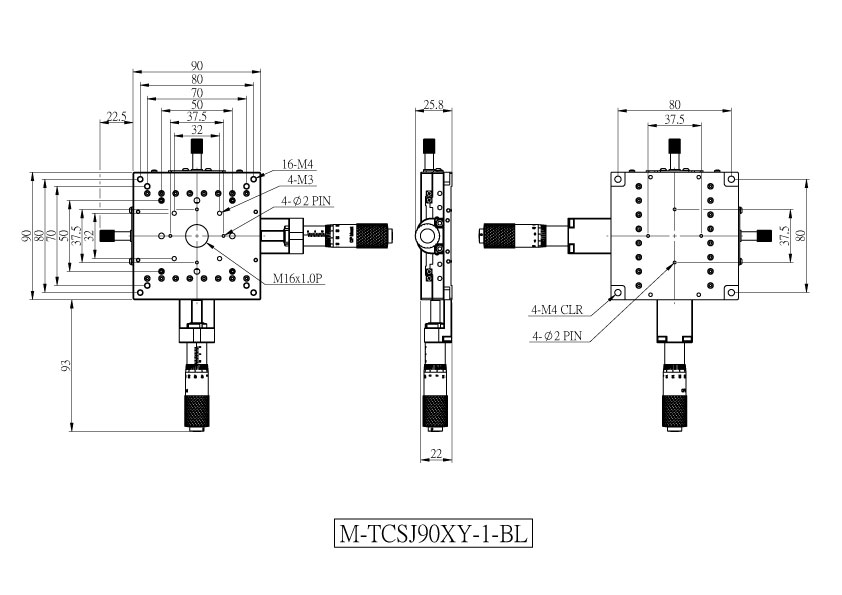

2D-Drawing



TCSJ90-10-series

• The TCSJ series features a steel cross roller track design, which provides high rigidity, high load capacity, low friction, and low operational noise. It is suitable for high-precision displacement applications. Additionally, considering convenience of use, it offers two options for the installation direction of the micrometer head on the sub-division card side.

• The installation method of the micrometer head on the sub-division card side in the TCSJZ series is different from typical linear stages. When used in a vertical orientation, it can avoid the issue of the stage tabletop dropping due to excessive load.(Please refer to the diagram on the right below for details.)




Part Number/Description Delivery Price Qty. Add to Cart
M-TCSJ90X-10-BR

V-Grooved Crossed Roller Guide/1" Travel/Center Drive/10um Micrometer

In stock
US$293.10
M-TCSJ90X-10-BL

V-Grooved Crossed Roller Guide/1" Travel/Center Drive/10um Micrometer

In stock
US$293.10
M-TCSJ90Z-10-BR

V-Grooved Crossed Roller Guide/1" Travel/Center Drive/10um Micrometer

In stock
US$410.34

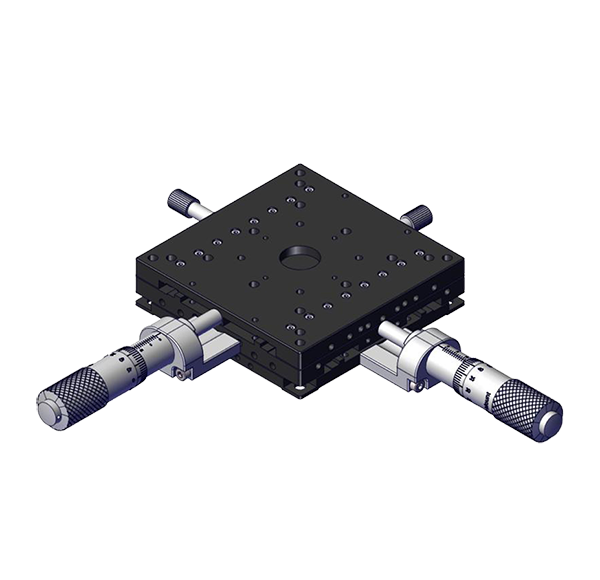

M-TCSJ90XY-10-BR

V-Grooved Crossed Roller Guide/1" Travel/Center Drive/10um Micrometer

In stock
US$586.21
M-TCSJ90XY-10-BL

V-Grooved Crossed Roller Guide/1" Travel/Center Drive/10um Micrometer

In stock
US$586.21
