Motorized XY Microscope Platform

JTH is Suitable for mounting in microscope system and other scanning system.

The XY configuration with an excellent orthogonality.

• High Repeatability

• High Position Accuracy

• Low Thickness

• Travel Range 30mmX30mm To 350mmX350mm

• 5 Phase Stepping motor

• Central Through Hole Structure

Specifications

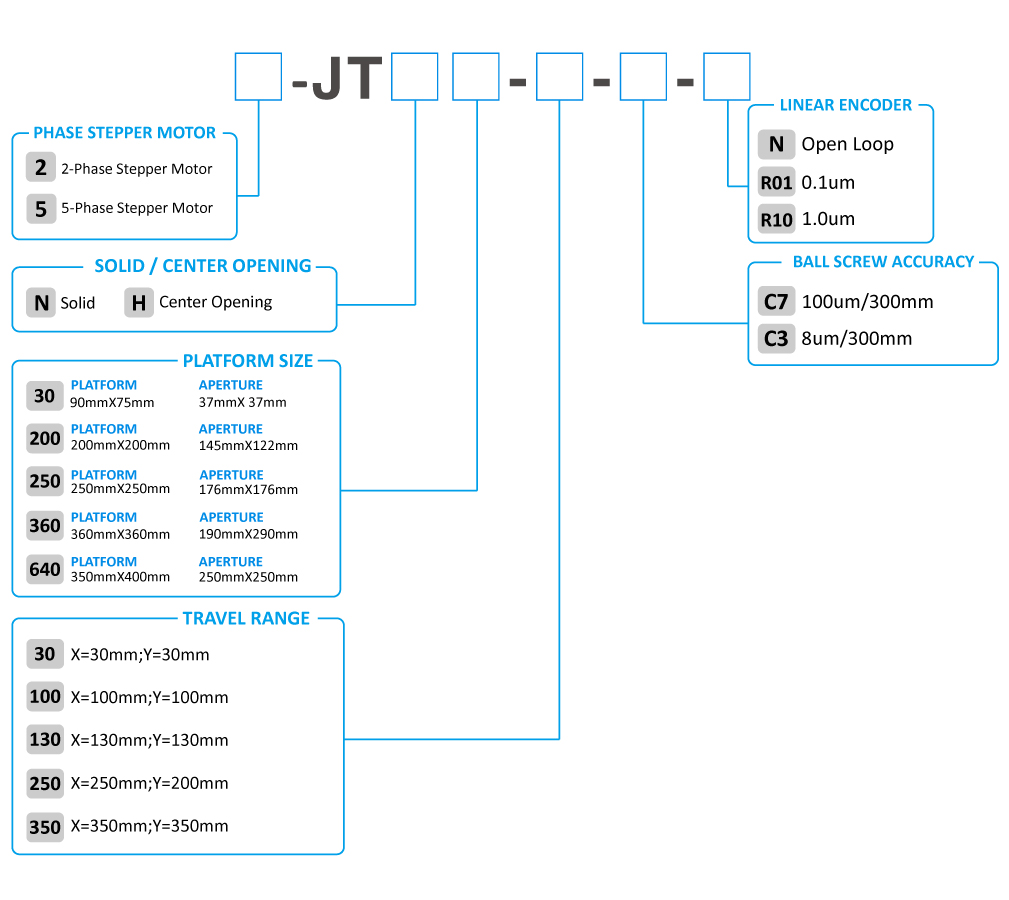

Item Number	5-JTH90-30-C3	5-JTH200-100-C3	5-JTH250-130-C3	5-JTH360-250-200-C3	5-JTH640-350-C3
Clear Aperture	37X37mm	145x122mm	176x176mm	190x290mm	250x250mm
Platform Size	75X90mm	200X200mm	250X250mm	360X360mm	400X340mm
Travel Range	X=30mm,Y=30mm	X=100mm,Y=100mm	X=130mm,Y=130mm	X=250mm,Y=200mm	X=350mm,Y=350mm
Resolution 1600 Rev	0.625um	0.625um	0.625um	1.25um	2.5um
Screw Positioning Accuracy	8um @ 30mm	10um @ 100mm	10um @ 130mm	15um @ 250mm	15um @ 350mm
Parallelism	20um	20um	20um	30um	50um
Repeatability	≤2um	≤2um	≤2um	≤3um	≤3um
Weight	1.5kg	4.3Kg	5Kg	10Kg	19Kg
2D-Drawing

Products	Part Number/Description	Delivery	Price	Qty.	Add to Cart
	5-JTH90-30-C3 Pitch 1.0mm C3 Ball Screw/Travel Range 30mm /5 Phase Stepping Motor/Ball Bearing Linear Guid	Inquiry	US$ Inquiry		Inquiry
	5-JTH200-100-C3 Pitch 1.0mm C3 Ball Screw/Travel Range 100mm/5 Phase Stepping Motor/Ball Bearing Linear Guid	Inquiry	US$ Inquiry		Inquiry
	5-JTH250-130-C3 Pitch 1.0mm C3 Ball Screw/Travel Range 130mm/5 Phase Stepping Motor/Ball Bearing Linear Guid	Inquiry	US$ Inquiry		Inquiry
	5-JTH360-250-200-C3 Pitch 4.0mm C3 Ball Screw/Travel Range X=250mm，Y=200mm/Ball Bearing Linear Guid	Inquiry	US$ Inquiry		Inquiry
	5-JTH640-350-C3 Pitch 4.0mm C3 Ball Screw/Travel Range 350mm/5 Phase Stepping Motor/Ball Bearing Linear Guid	Inquiry	US$ Inquiry		Inquiry
