SPECIFICATIONS
 • Platform size:101.6mm X 75.2mm
 • Actuators: Micrometer Center Drive
 • Travel : 25.0mm
 • Resolution :10um
 • Material:Aluminum 、Anodized Black

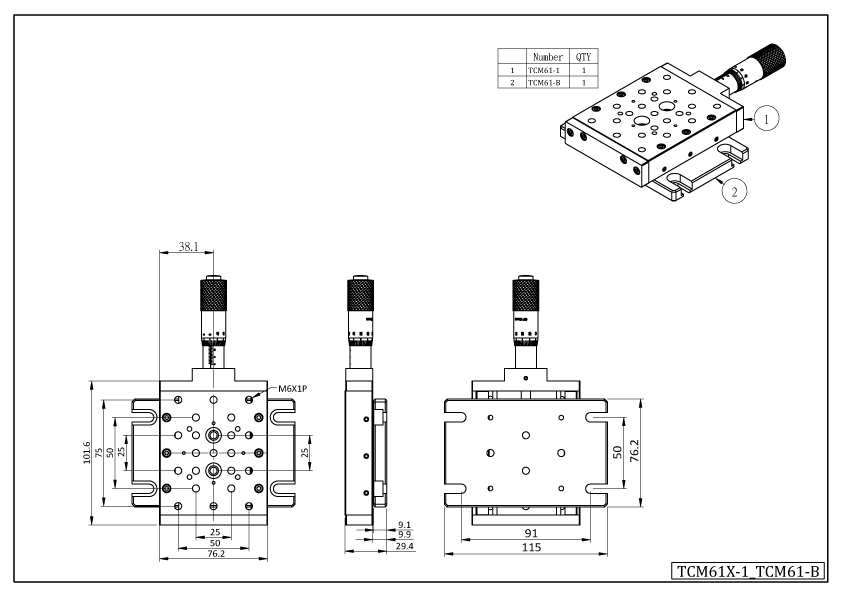

2D-Drawing



Standard Linear Stage, 1" Travel Series

TCM61-1-series

• 25 mm Travel with Metric Micrometers

• Crossed Roller Guide

Each TCM61 is equipped with an ME-25 (resolution 10um) micrometer, and it can be assembled with TCM61-AB and TCM61-B into a 3-axis stage.



Part Number/Description Delivery Price Qty. Add to Cart
TCM61X-1

X-Axis / 1 inch / Center Drive / Micrometer
In stock
US$244.83

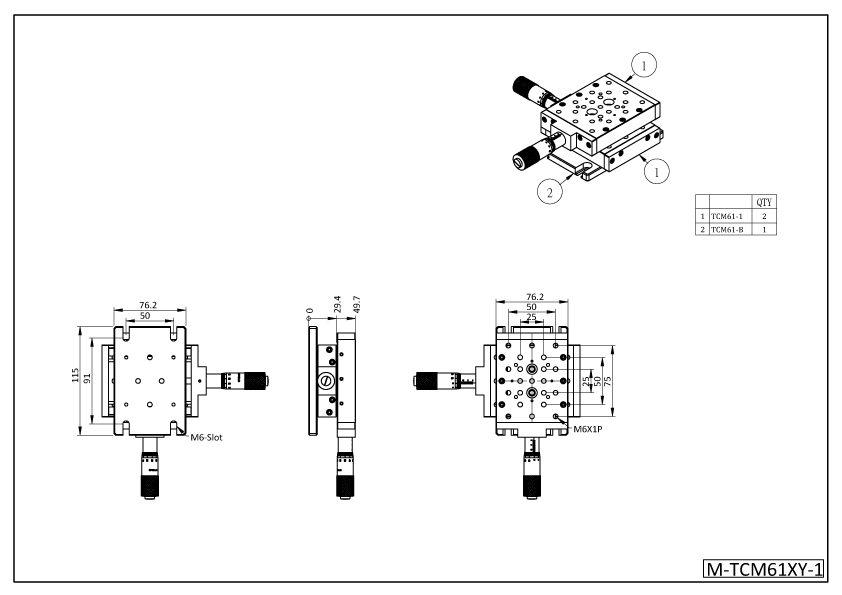

TCM61XY-1

XY-Axis / 1 inch / Center Drive / Micrometer
In stock
US$489.66

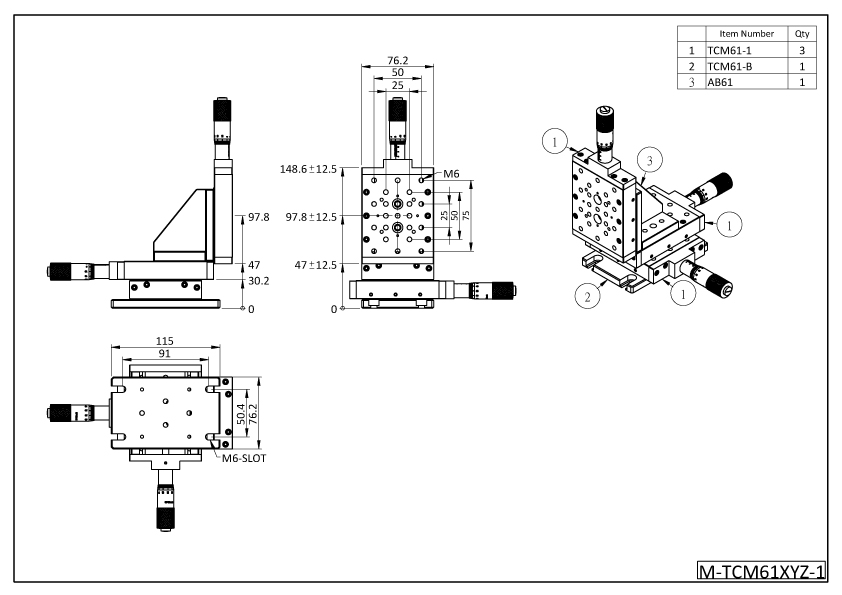

TCM61XYZ-1

XYZ-Axis / 1 inch / Center Drive / Micrometer
In stock
US$827.59

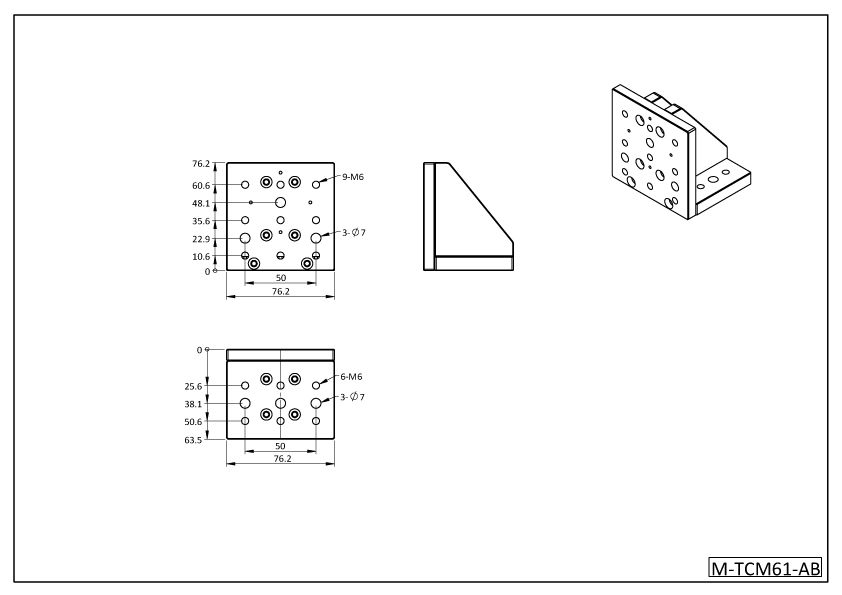

TCM61-AB

Vertical Adapter Plates
In stock
US$65.52

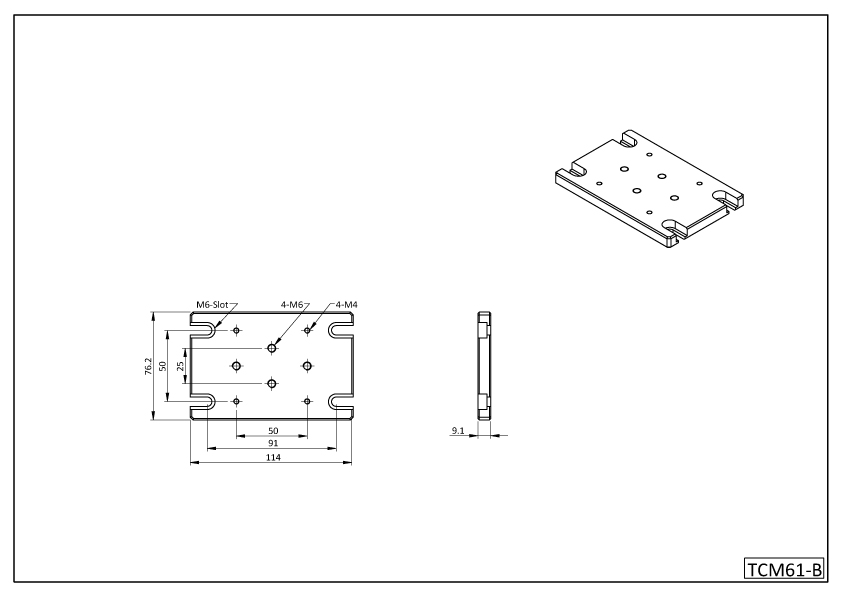

TCM61-B

Adapter Plates
In stock
US$27.59
