Specifications
Item Number Width Height Thickness
ALH-2P 10mm~50mm 10mm~50mm 5 mm
ALH-3P 10mm~75mm 10mm~75mm 5 mm
ALH-5P 10mm~125mm 10mm~125mm 6.5 mm

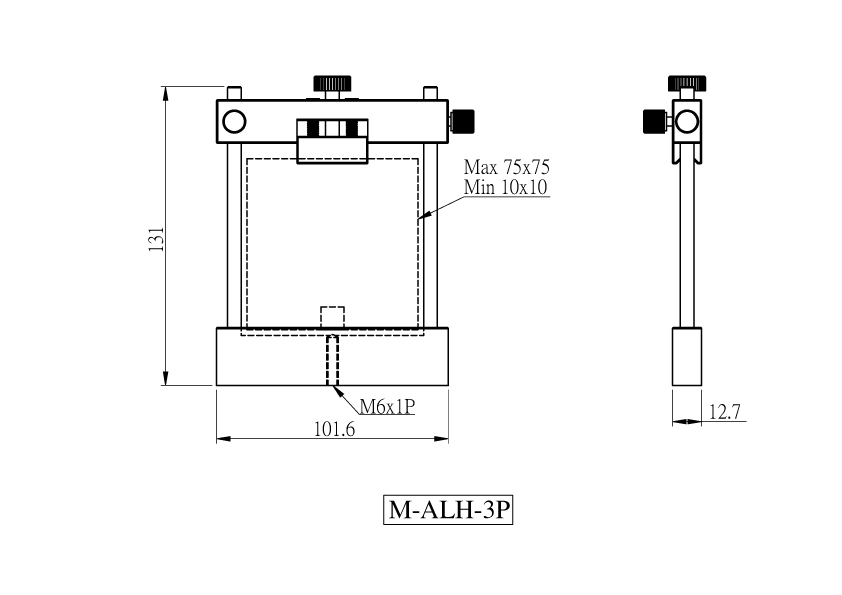

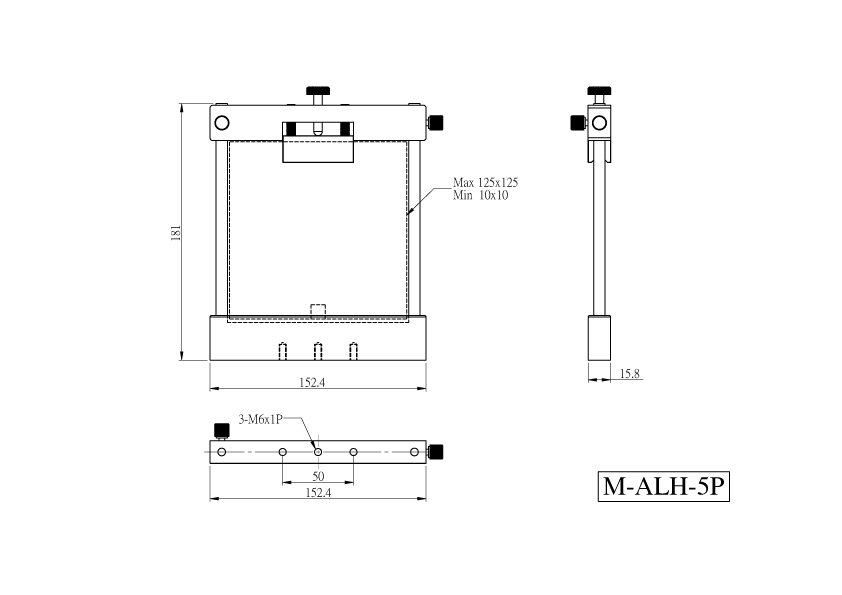

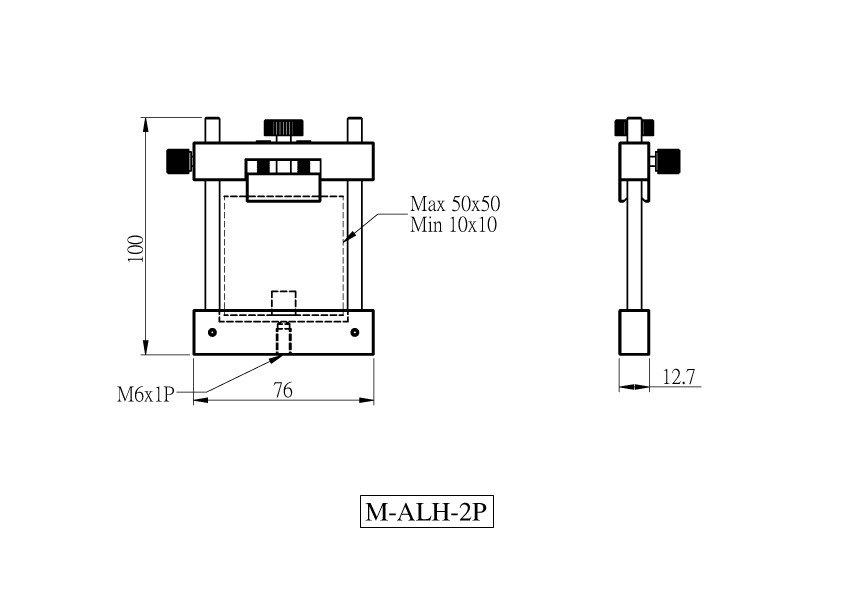

Drawings



Adjustable Lens Mounts

ALH-P-series

V-Shaped Provides Clamping Force Square Optics
◆ Locking Screw with V-Shaped  Provides Clamping Force
◆ Clamped 10mm  To 128mm Range
◆ Can be Mounted Square And Rectangular Optical Elements
◆ ALH-XP  Suitable For Mounting Round Lenses
◆ ALH  Suitable  For Cylindrical  Lenses and Rectangular Optical Element

Part Number/Description Delivery Price Qty. Add to Cart
M-ALH-2P

Up To W=50mm H=50mm /Square Optics
In stock
US$48.28
M-ALH-3P

Up To W=75mm H=75mm /Square Optics
In stock
US$58.62
M-ALH-5P

Up To W=125mm H=125mm /Square Optics
In stock
US$148.28
