Specifications
 • Optics Diameter : Ø 30mm
 • Adjuster Thread : 100TPI(0.25mm)/127TPI(0.2mm)
 • Angular Range : ±3°
 • HOX / HOC Resolution : 0.4°
 • FEC Resolution : 0.3°
 • Adjustments Axis : θxθy
Drawings



Precision Kinematic Mirror Mount With 2 Adjustable

TNO-1.2-series

Stability Round Optics 100TPI 127TPI

• In addition to the common tension-type spring structure, the TNO-series mirror mount also incorporates a disc-type spring structure. The advantages of the disc-type spring with its smaller spring constant and larger spring force enable the mount to support heavier optical components. To avoid the spring force variation caused by the misalignment of disc-type springs, we have improved the structure of the disc-type spring, which enhances the overall stability of the TNO-series mirror mount.


• The mount can be combined with other mechanical structures using either M4-headed screws or M6 set screws.


Part Number/Description Delivery Price Qty. Add to Cart

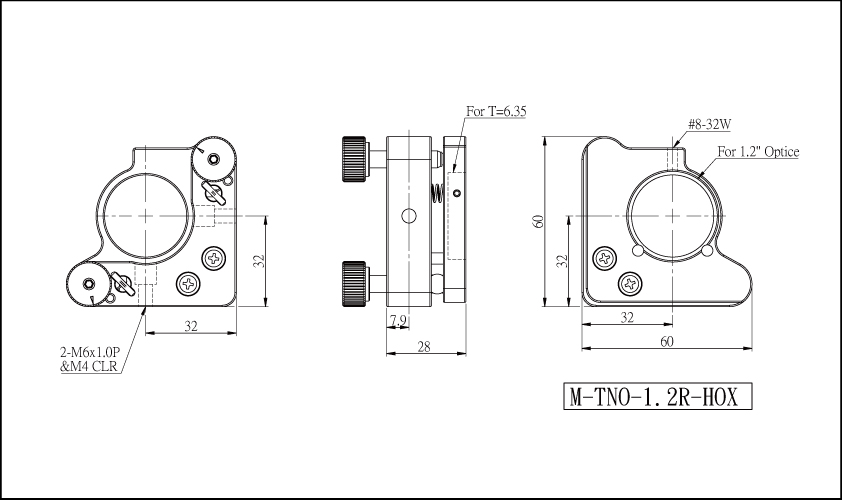

M-TNO-1.2R-HOX

Ø 1.2"/100TPI Screw/Right-Hand/knob

In stock
US$94.10

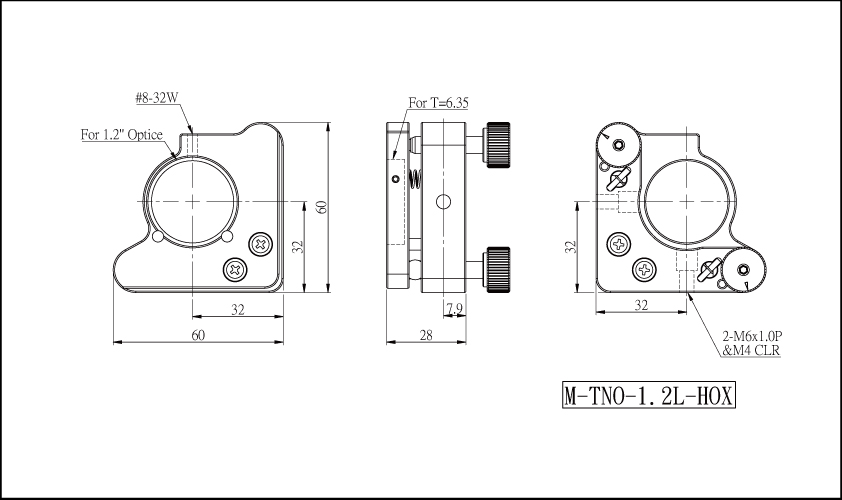

M-TNO-1.2L-HOX

Ø 1.2"/100TPI Screw/Left-Hand/knob

In stock
US$94.10

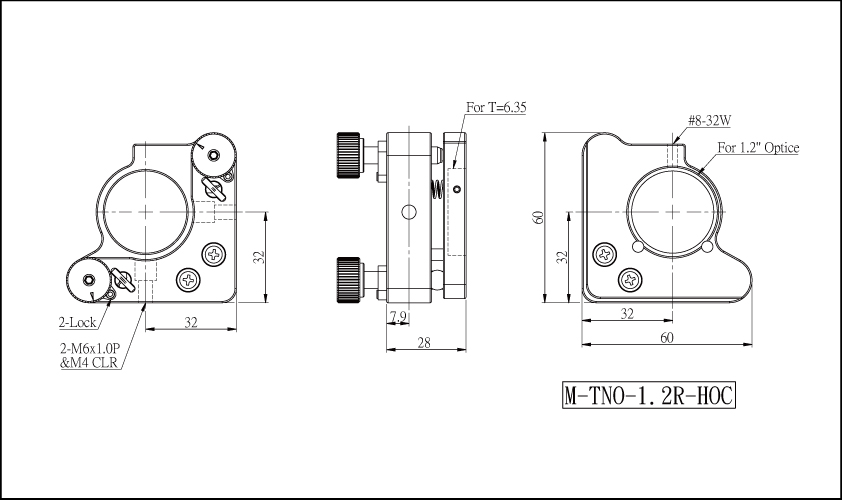

M-TNO-1.2R-HOC

Ø 1.2"/100TPI Screw/Right-Hand/knob/Lock

In stock
US$108.00

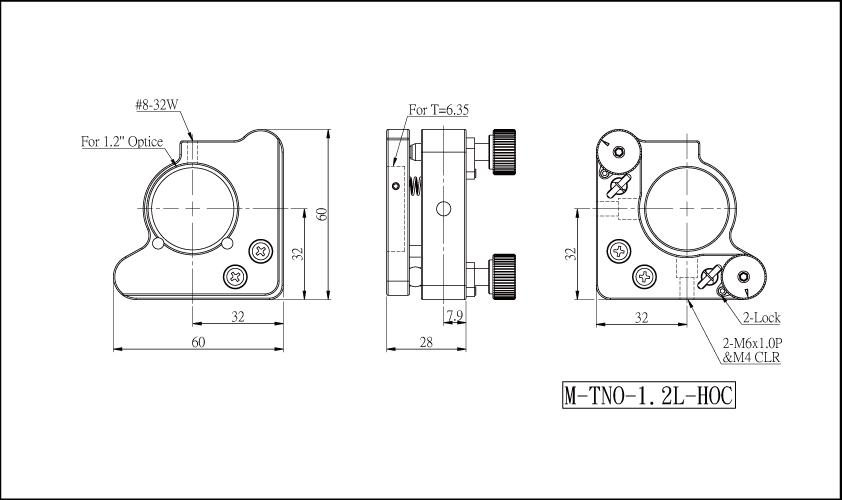

M-TNO-1.2L-HOC

Ø 1.2"/100TPI Screw/Right-Hand/knob

In stock
US$108.00

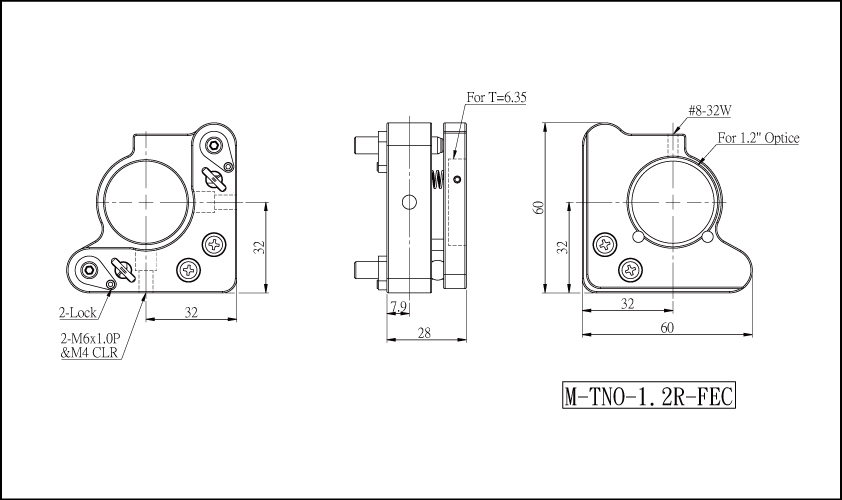

M-TNO-1.2R-FEC

Ø 1.2"/127TPI/Right-Hand/No knob/Lock

In stock
US$117.20

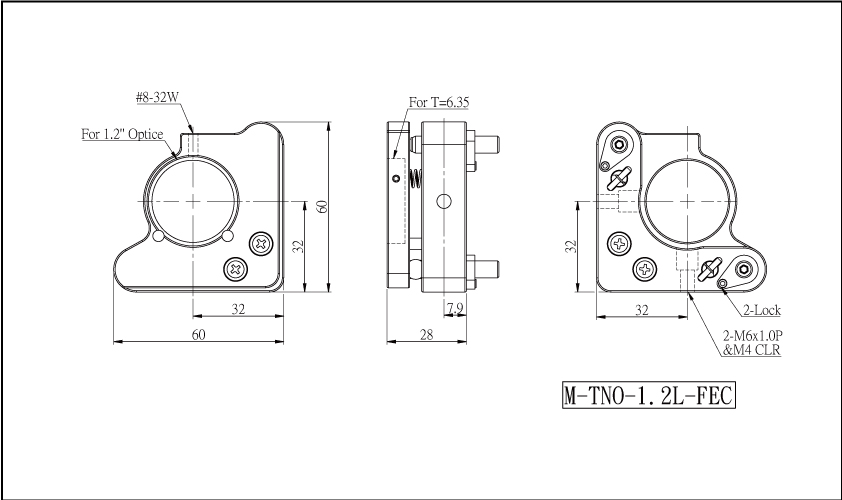

M-TNO-1.2L-FEC

Ø 1.2"/127TPI/Left-Hand/No knob/Lock

In stock
US$117.20
