3 Adjuster Kinematic Mirror Mounts

TTMSO-1-series

Specification
 • Optics Diameter : Ø 25.4mm
 • Drive Type : 100TPI (0.25mm)
 • Adjust range : θxθy±3°  Z=6mm°
 • Adjustment Accuracy: θx : θy=0.4° , Z=0.25mm
 • Adjustments : θx : θy : Z

Economy 100TPI 3-Axis


► Black anode Aluminum

► 3-Axis adjustment

► Connection with M4 Thread &M6  Countersunk Hole

► Lock Function



Part Number/Description Delivery Price Qty. Add to Cart

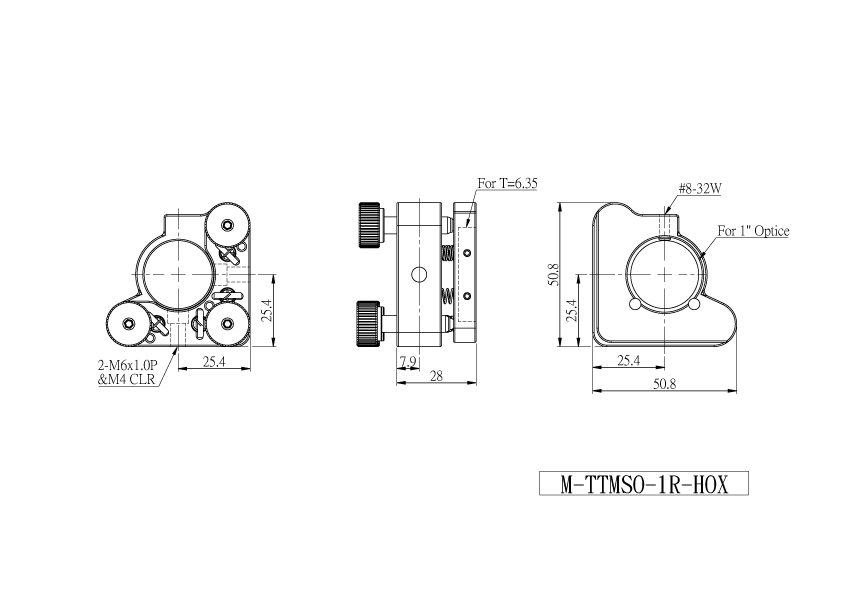

M-TTMSO-1R-HOX

Ø 1.0"/Right-Hand/3-Axis
In stock
US$63.79

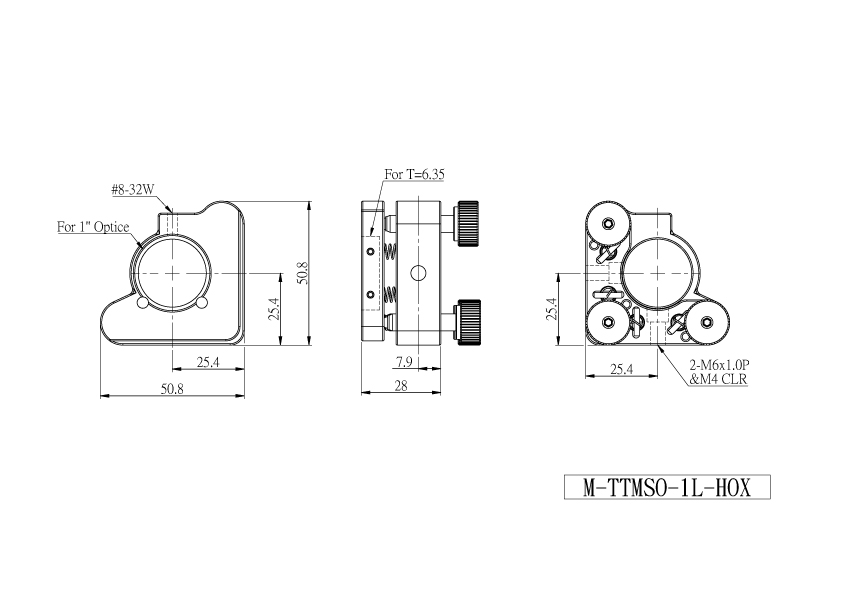

M-TTMSO-1L-HOX

Ø 1.0"/Left-Hand/3-Axis
In Stock
US$63.79

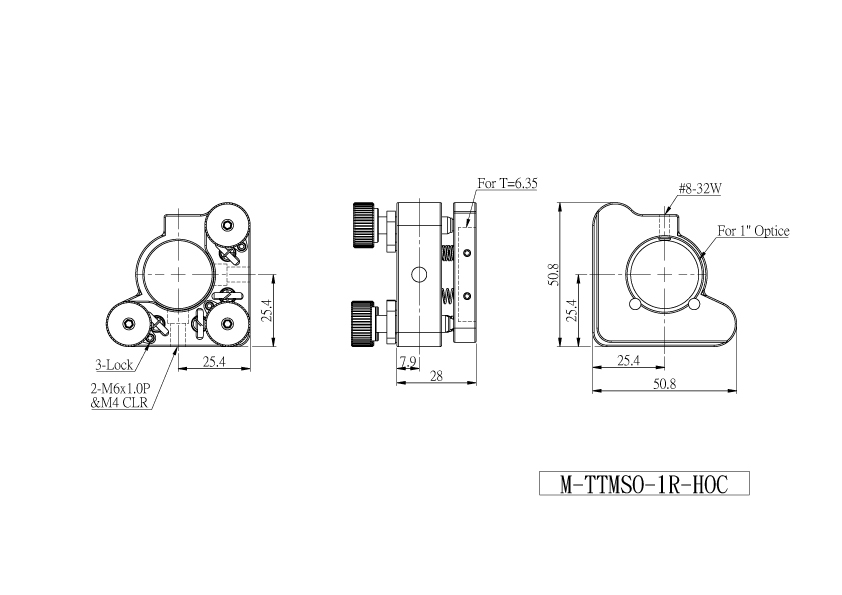

M-TTMSO-1R-HOC

In Stock
US$86.21
M-TTMSO-1L-HOC

Ø 1.0"/Left-Hand/Lock/3-Axis
In Stock
US$86.21
