3 Adjuster Kinematic Mirror Mounts

TTMSO-08-series

Specification
 • Optics Diameter : Ø 20mm
 • Drive Type : 100TPI (0.25mm)
 • Adjust range : θxθy±3°  Z=6mm°
 • Adjustment Accuracy: θx : θy=0.4° , Z=0.25mm
 • Adjustments : θx : θy : Z

Economy 100TPI 3-Axis


► Black anode Aluminum

► 3-Axis adjustment

► Connection with M4 Thread &M6  Countersunk Hole

► Lock Function



Part Number/Description Delivery Price Qty. Add to Cart

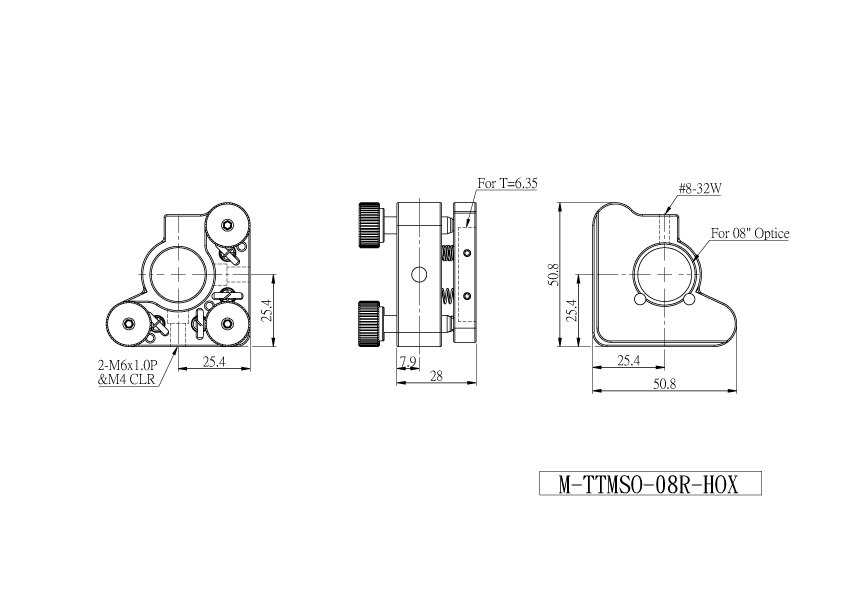

M-TTMSO-08R-HOX

Ø 0.8"/Right-Hand/3-Axis
In stock
US$63.28
M-TTMSO-08L-HOX

Ø 0.8"/Lift-Hand/3-Axis
In stock
US$63.28

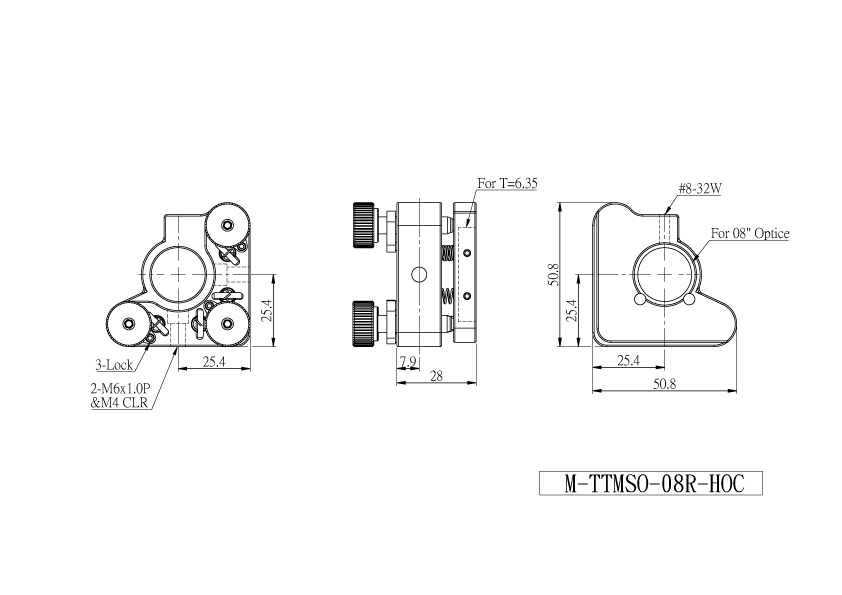

M-TTMSO-08R-HOC

Ø 0.8"/Right-Hand/Lock/3-Axis
In stock
US$83.97

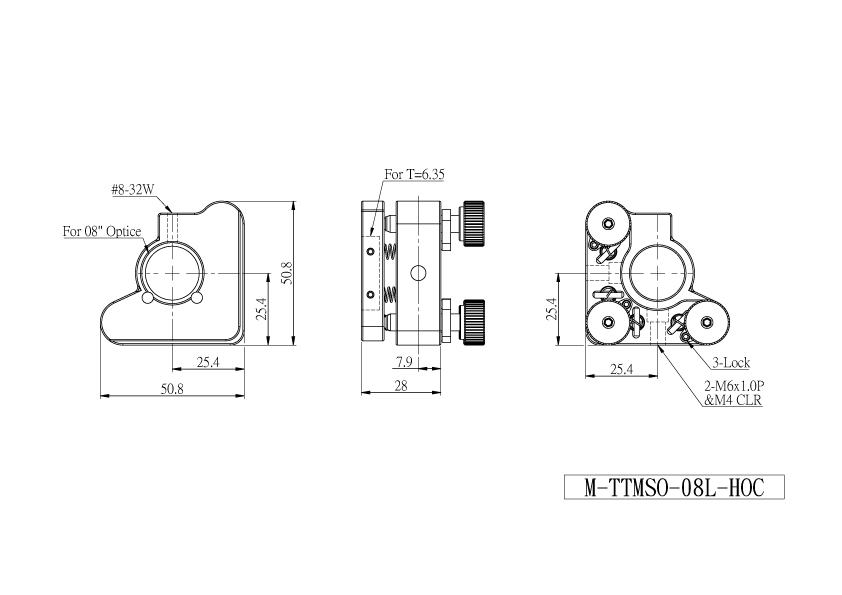

M-TTMSO-08L-HOC

Ø 0.8"/Lift-Hand/Lock/3-Axis
In stock
US$83.97
