Specification
 • Optics Diameter : Ø 20mm
 • Drive Type : 100TPI (0.25mm)
 • Adjust range : ±3°
 • Adjustment Accuracy: 0.4度每圈
 • Adjustments : θxθy




2 Adjuster Kinematic Mirror Mounts

TMSO-08-series

Economy 100TPI 2-Axis

• The TMSO-08 series is suitable for installing 20mm diameter lenses, and can be securely fastened with a top fixing screw and two bottom fixing points. In addition, locking and standard versions are available for selection.

• It can be combined with other mechanical structures using M4 cap screws or M6 set screws.



Part Number/Description Delivery Price Qty. Add to Cart

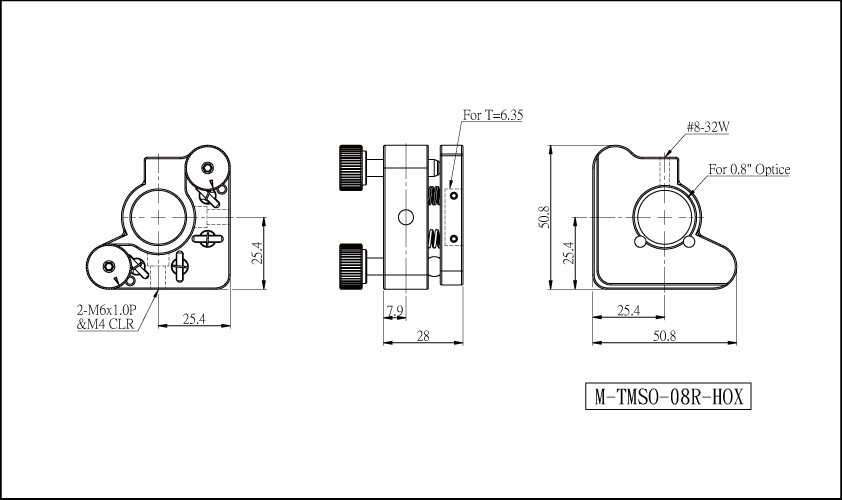

M-TMSO-08R-HOX

Ø 0.8"/Right-Hand/2-Axis
In stock
US$42.41

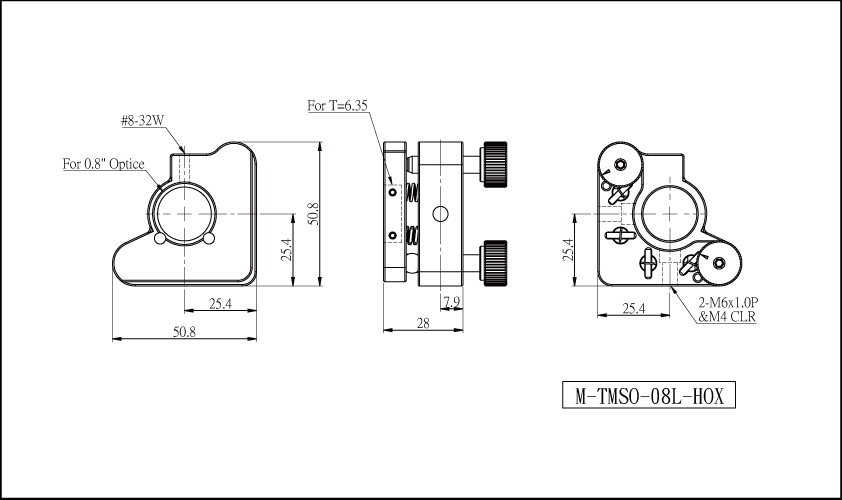

M-TMSO-08L-HOX

Ø 0.8"/Lift-Hand/2-Axis
In Stock
US$42.41

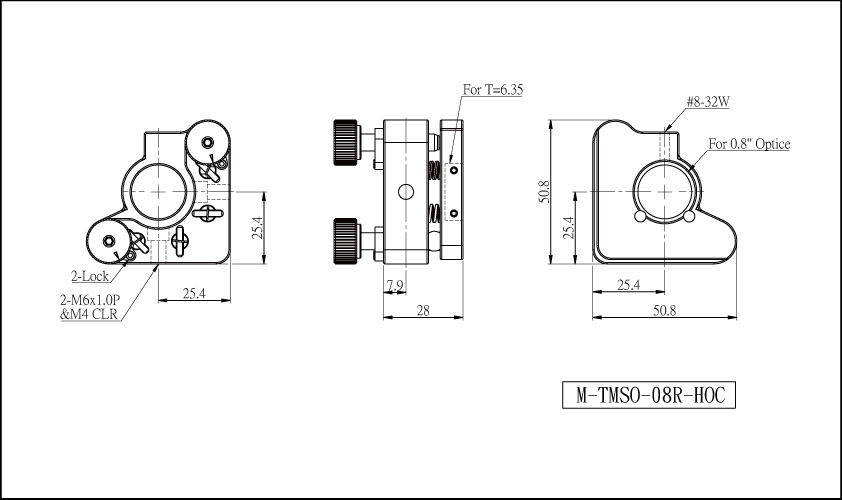

M-TMSO-08R-HOC

Ø 0.8"/Right-Hand/Lock/2-Axis
In stock
US$56.21
M-TMSO-08L-HOC

Ø 0.8"/Lift-Hand/Lock/2-Axis
In Stock
US$56.21
