Specification  • Optics Diameter : Ø 38.1mm  • Drive Type : 100TPI (0.25mm)  • Adjust range : ±3°  • Adjustment Accuracy: 0.3度每圈  • Adjustments : θxθy
Click to EnlargeClick to EnlargeClick to Enlarge

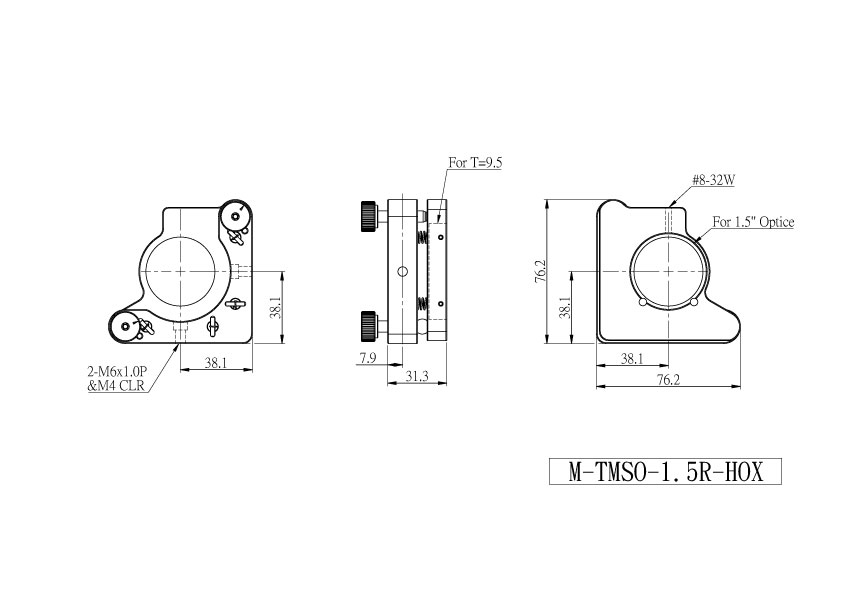

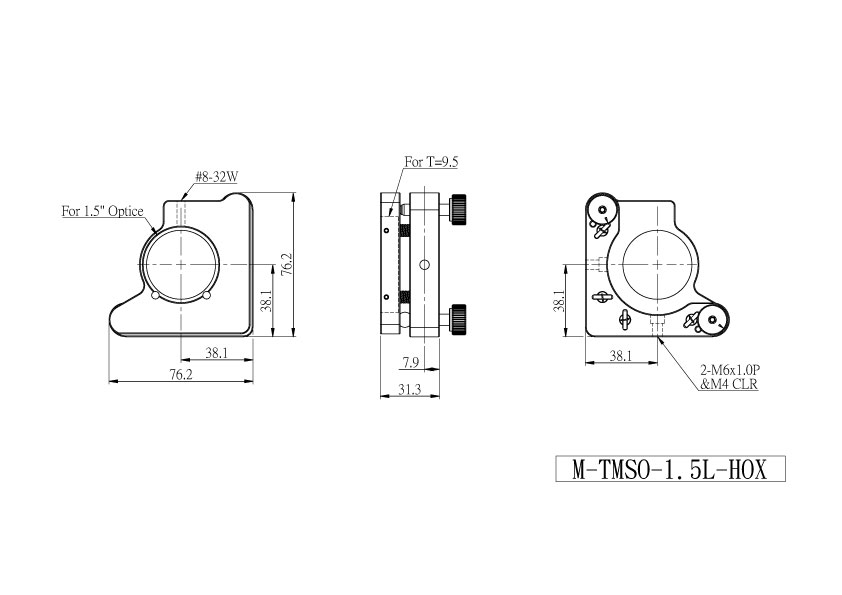

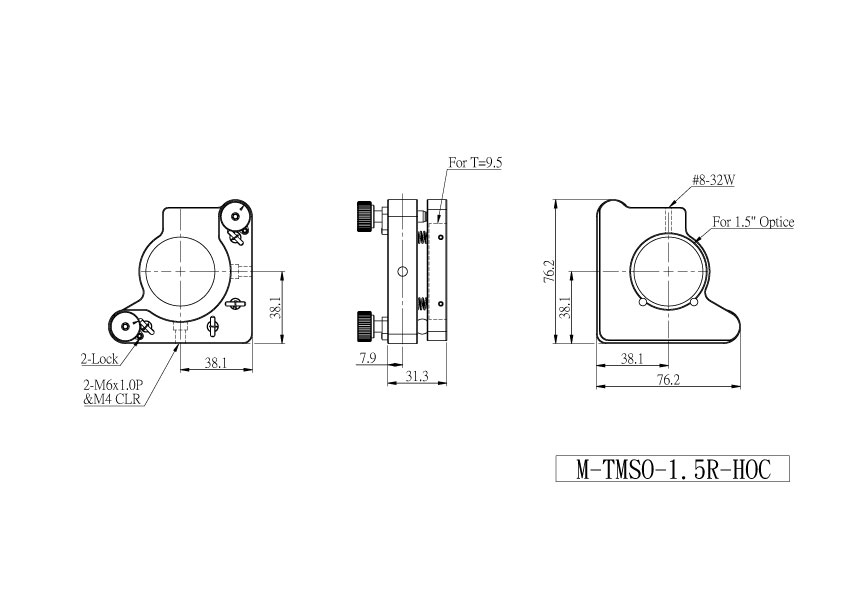

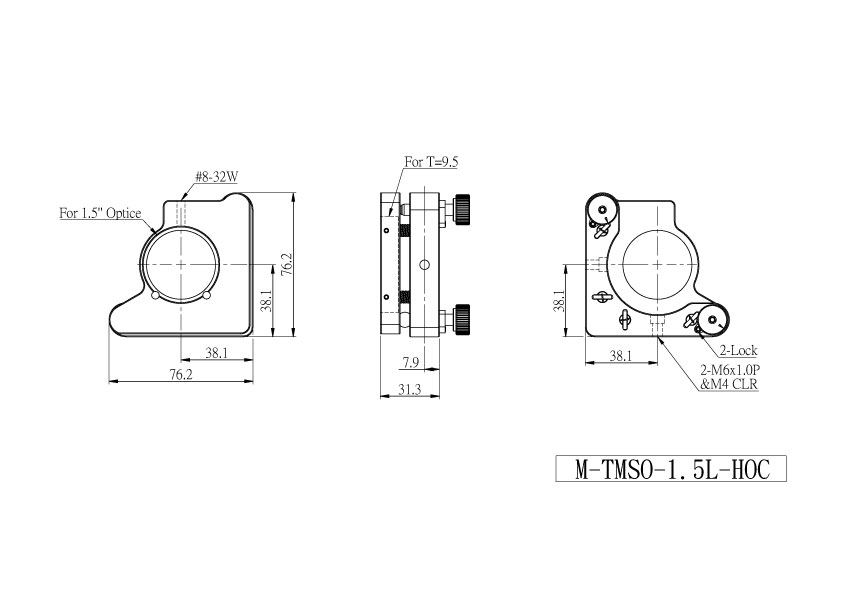

TMSO-1.5-series

• The TMSO-1.5 series is suitable for installing 38.1mm diameter lenses, and can be securely fastened with a top fixing screw and two bottom fixing points. In addition, locking and standard versions are available for selection.

• It can be combined with other mechanical structures using M4 cap screws or M6 set screws.
