Specification
 • Optics Diameter : Ø 30mm
 • Drive Type : 100TPI (0.25mm)
 • Adjust range : ±3°
 • Adjustment Accuracy: 0.4度每圈
 • Adjustments : θxθy


2 Adjuster Kinematic Mirror Mounts

TMSO-1.2-series

Economy 100TPI 2-Axis

• The TMSO-1.2 series is suitable for installing 30mm diameter lenses, and can be securely fastened with a top fixing screw and two bottom fixing points. In addition, locking and standard versions are available for selection.

• It can be combined with other mechanical structures using M4 cap screws or M6 set screws.

Part Number/Description Delivery Price Qty. Add to Cart

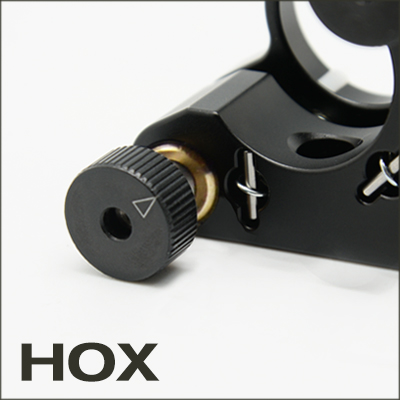

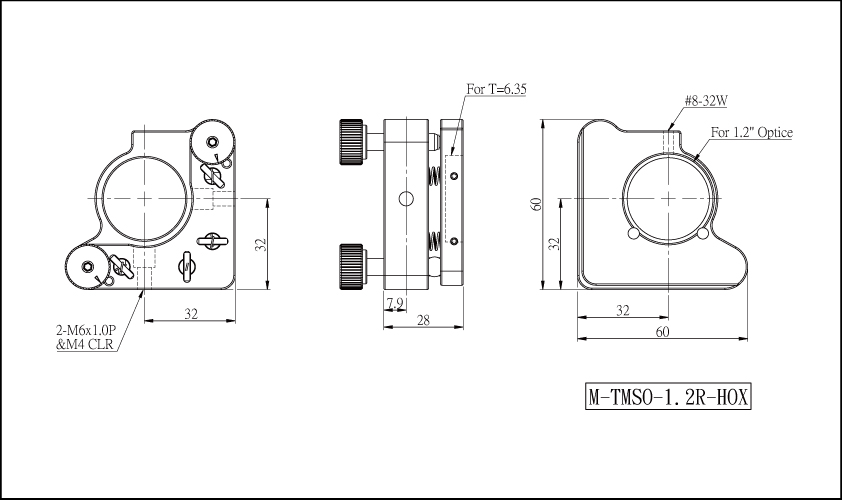

M-TMSO-1.2R-HOX

Ø 1.2"/Right-Hand/2-Axis
In stock
US$48.28

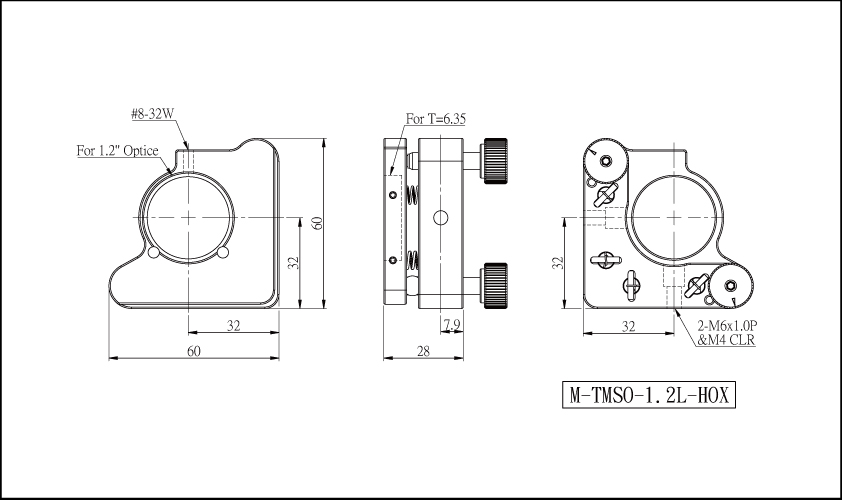

M-TMSO-1.2L-HOX

Ø 1.2"/Lift-Hand/2-Axis
In stock
US$48.28

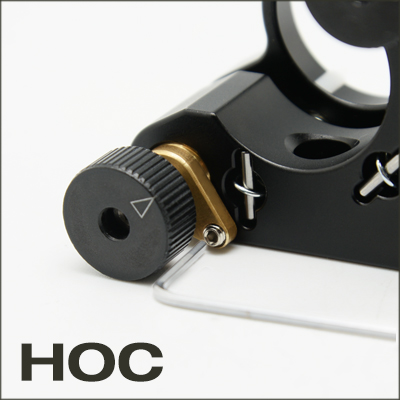

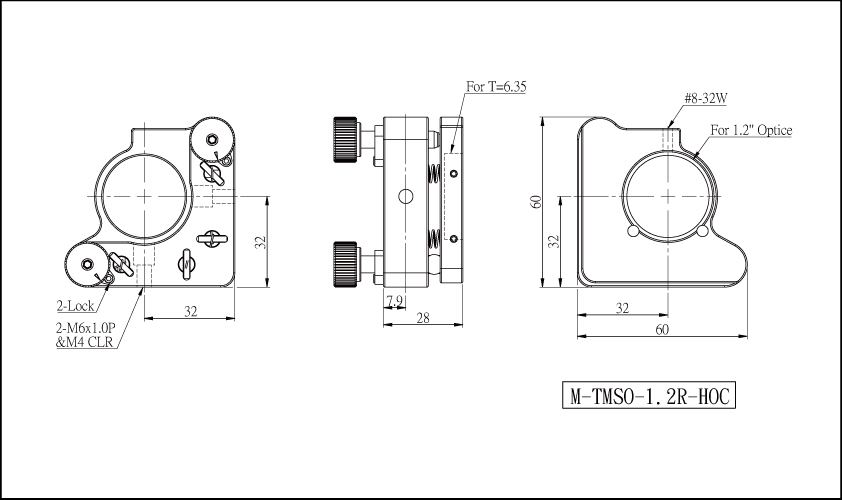

M-TMSO-1.2R-HOC

Ø 1.2"/Right-Hand/Lock/2-Axis
In stock
US$62.07

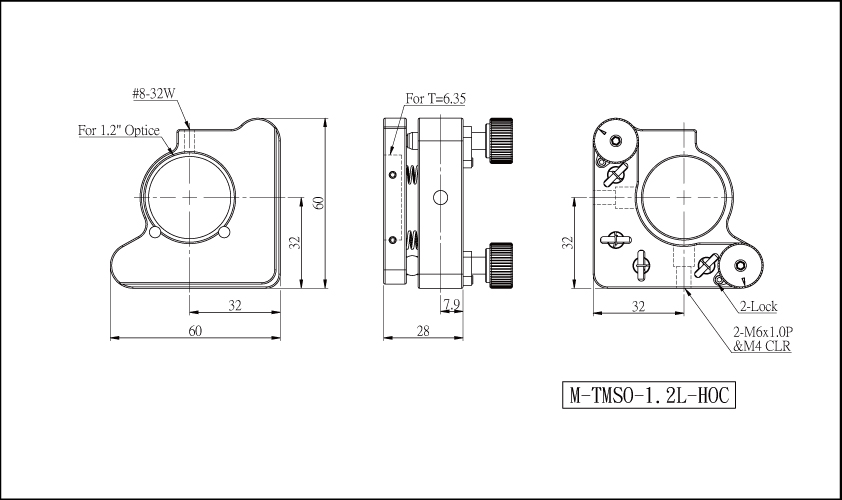

M-TMSO-1.2L-HOC

Ø 1.2"/Lift-Hand/Lock/2-Axis
In Stock
US$62.07
