Specification  • Optics Diameter : Ø 25.4mm  • Drive Type : 100TPI (0.25mm)  • Adjust range : ±3°  • Adjustment Accuracy: 0.4度每圈  • Adjustments : θxθy
Click to EnlargeClick to EnlargeClick to Enlarge

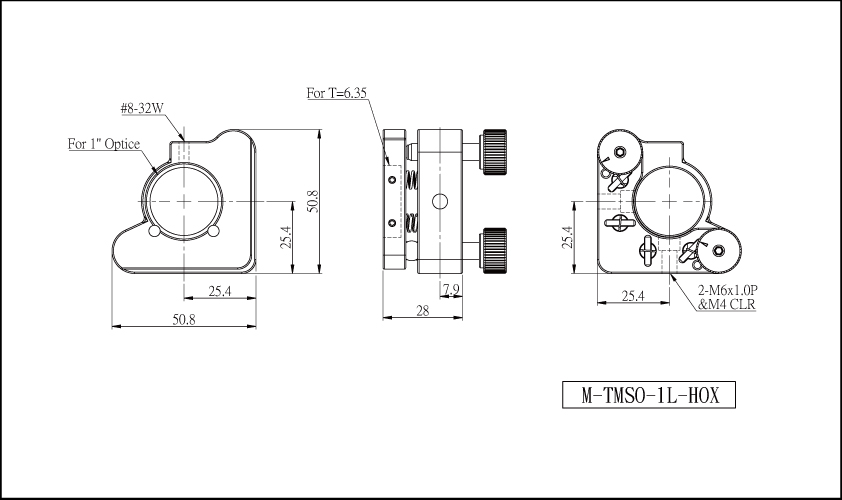

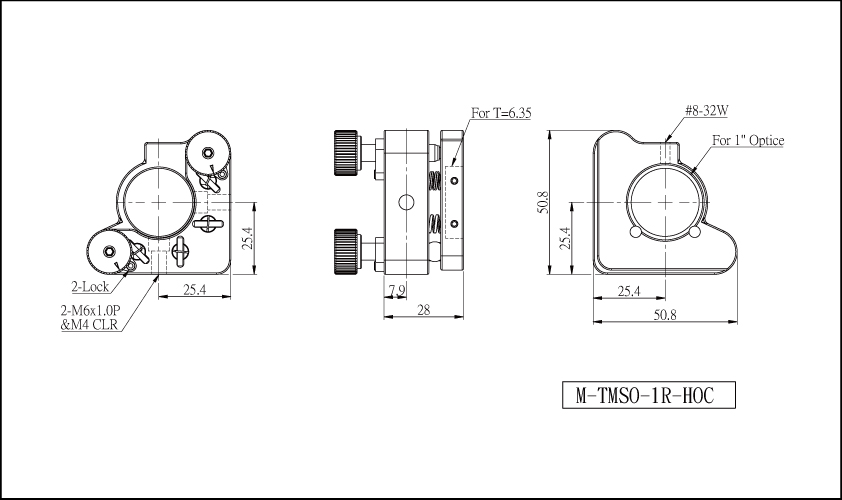

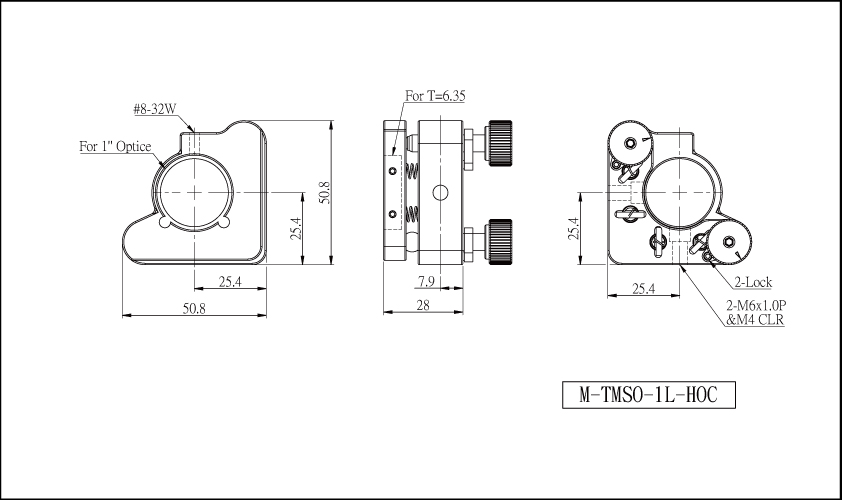

TMSO-1-series

• The TMSO-1 series is suitable for installing 25.4mm diameter lenses, and can be securely fastened with a top fixing screw and two bottom fixing points. In addition, locking and standard versions are available for selection.

• It can be combined with other mechanical structures using M4 cap screws or M6 set screws.
